CHECKING AND SETTING THE VALVE TIMING
Engine : WJY
Setting the valve timing (continued)
NOTE : If necessary, slightly turn pinions (6) and (2) in an anti-clockwise direction in
order to fit the belt.
The angular movement of the belt in relation to the pinions must not exceed half a
tooth.
- Fit the tool [7] to the belt strap at "a".
-Turn the roller (9) (anti-clockwise) using tool [6], to obtain:
106 ± 2 SEEM units.
- Check that pinions (6) and (2) are not at the end of their stops.
Otherwise, repeat the belt fitting procedure from the beginning.
Tighten:
- The roller (9) to 4.5 m.daN.
- The screws (4) and (5) to 2.5 m.daN.
- Remove the tools [7], [5], [1], [2] and [3].

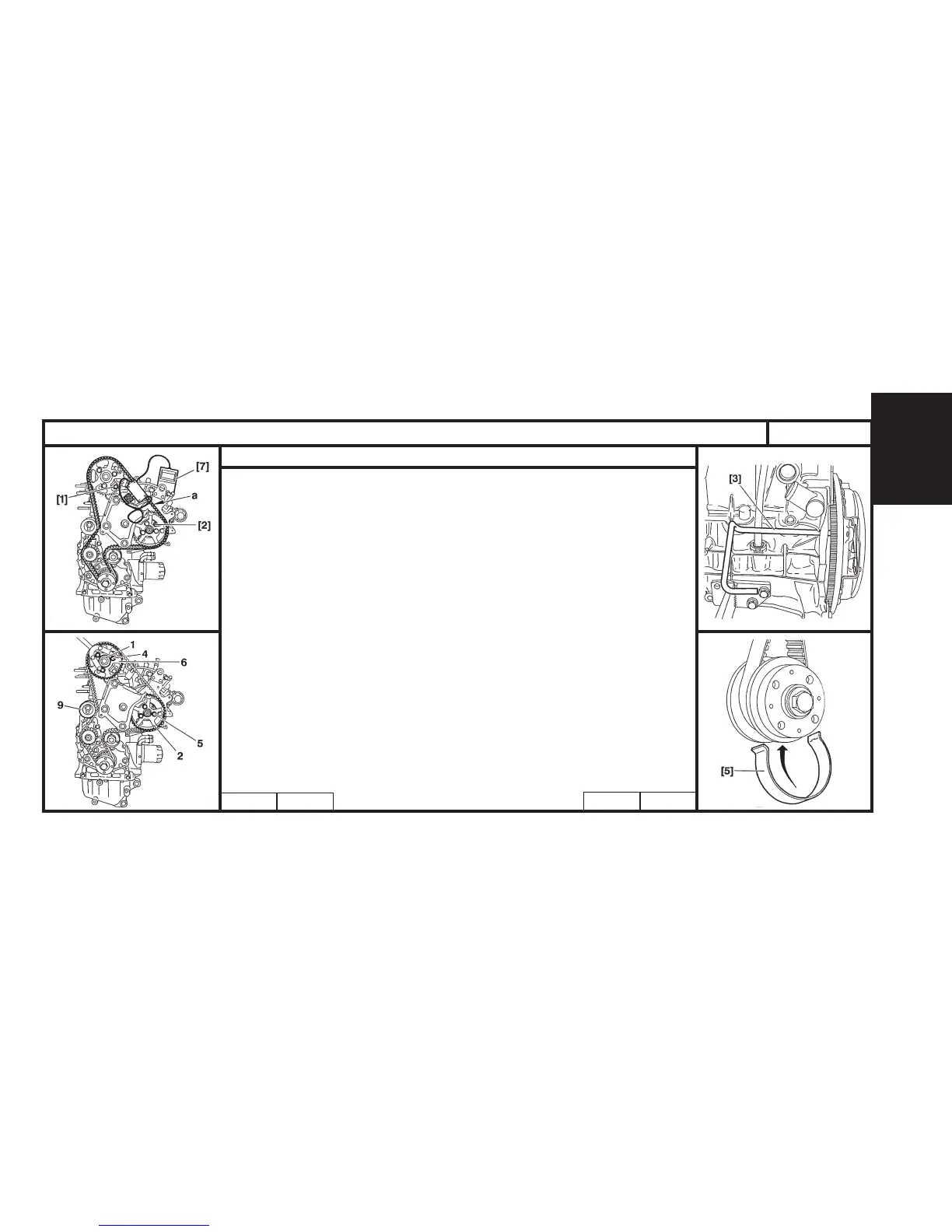

B1EP134C
B1CP045C B1EP132C
B1EP133C
