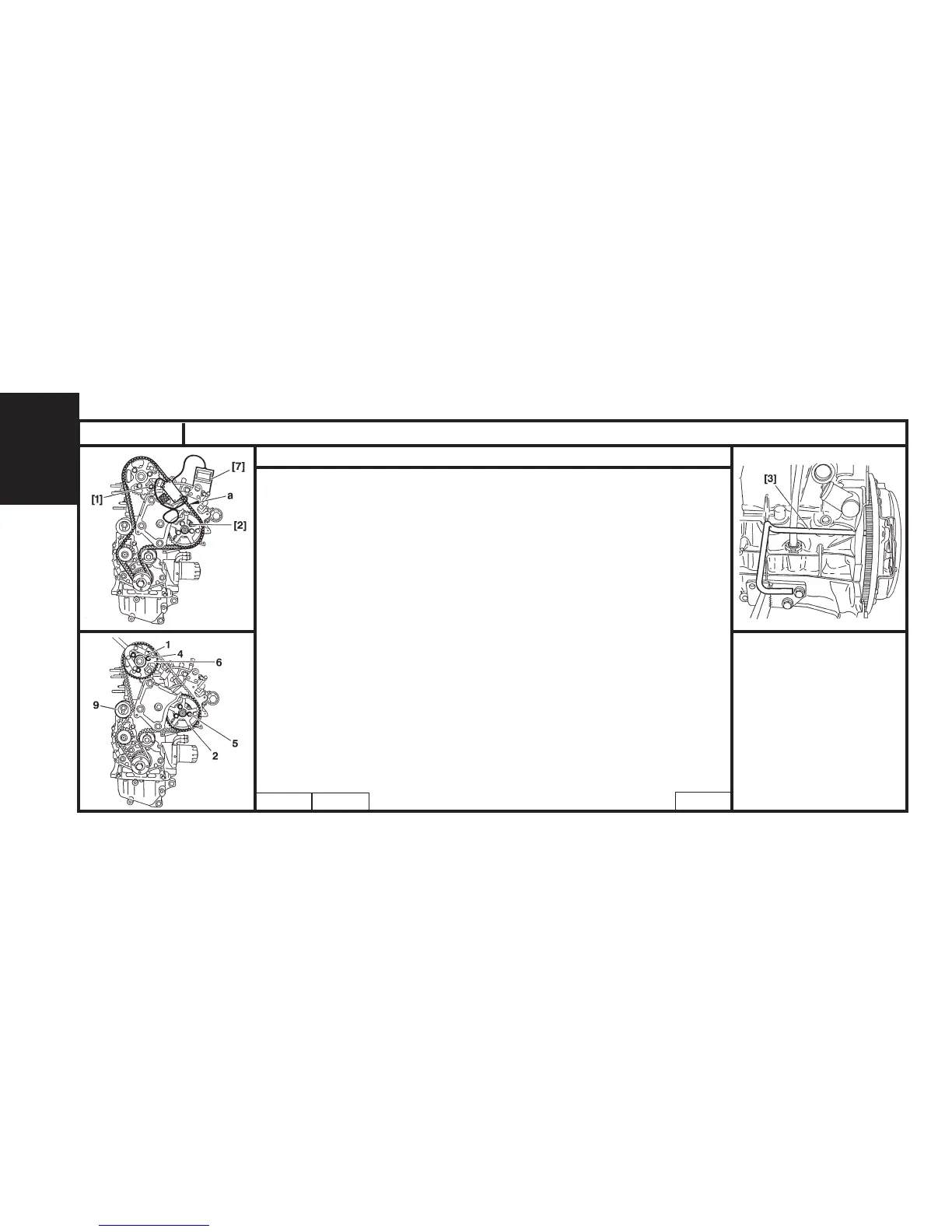

CHECKING AND SETTING THE VALVE TIMING
Engine : WJY
Setting the valve timing (continued)
Rotate the crankshaft by 8 turns (direction of rotation).
Peg :
- The hub (1), using tool [1].
- The pinion (2), using tool [2].
- The flywheel, using the tool [3].
Loosen :
- The screws (4) and (5).
- The roller (9).
- Retighten screws (4) and (5) by hand.
- Fit the tool [7] to the belt strap at "a".
- Turn the roller (9) (anti-clockwise direction) using tool [6], to obtain :
42 ± 2 SEEM units.
B1EP134C
B1CP045C
B1EP133C
