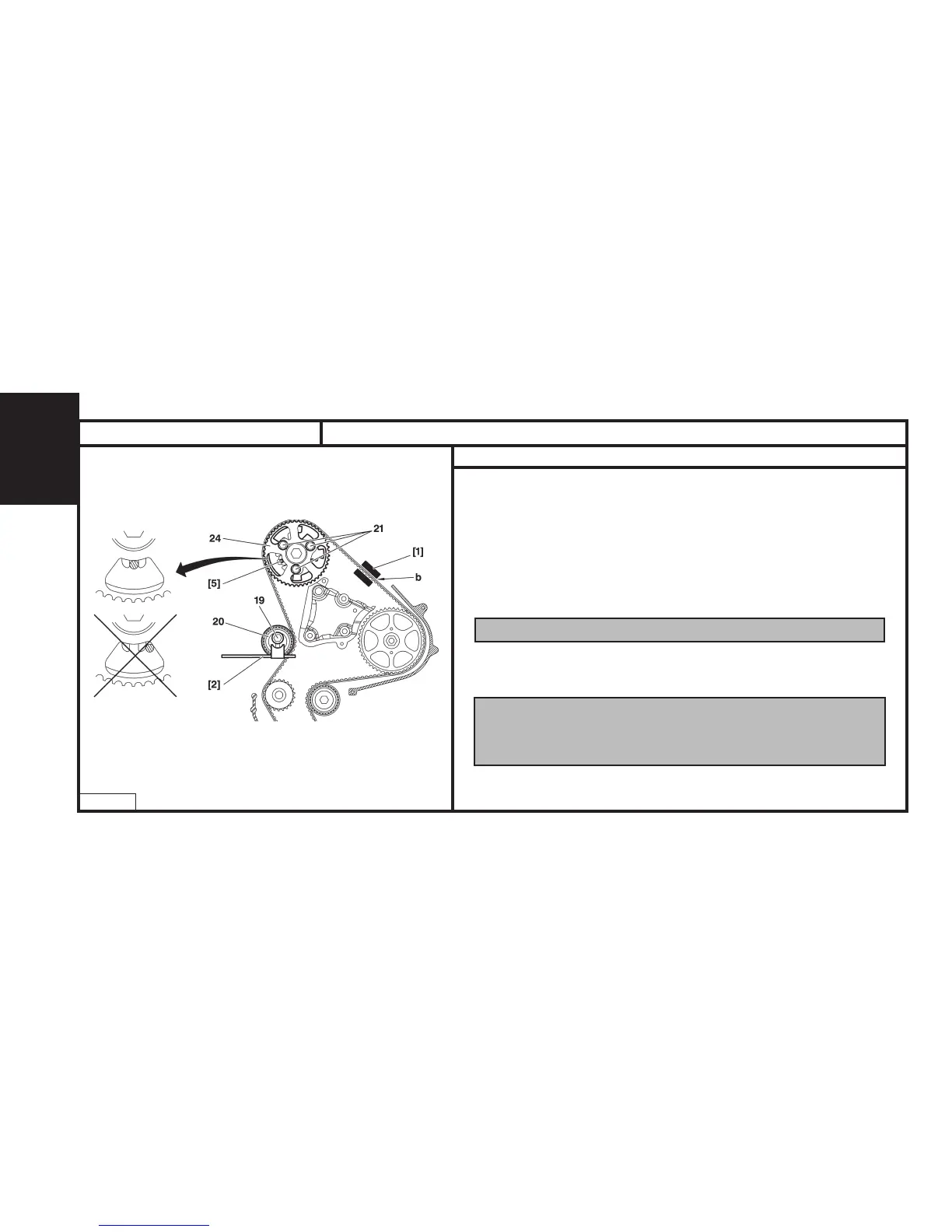

Setting the valve timing (continued)
Tighten :
The screw of the roller (19) to 2.5 ± 0.2 m.daN.
The screw (21) to 2 ± 0.2 m.daN.
Remove the tool [1].
Refit the tool [1].
Tension value should be : 54 ± 3 SEEM units.
IMPERATIVE : If value is incorrect, restart the operation.
- Remove tools [1], [3] and [5].
- Rotate the crankshaft 2 times (normal direction of rotation).
- Fit the tool [3].
WARNING : Should it be impossible to peg the camshaft, check
that the offset between the camshaft pinion hole and the pegging
hole is not more than 1 mm..
In the case of an incorrect value, recommence the operation.
- Remove the tool [3].
- Complete the refitting of components.
CHECKING AND SETTING THE VALVE TIMING
Engines : RHY - RHZ # N° RPO 9127
B1EP156D
196
ENGINE
XSARA - XSARA PICASSO
