ENGINE
195
Setting the valve timing (continued)

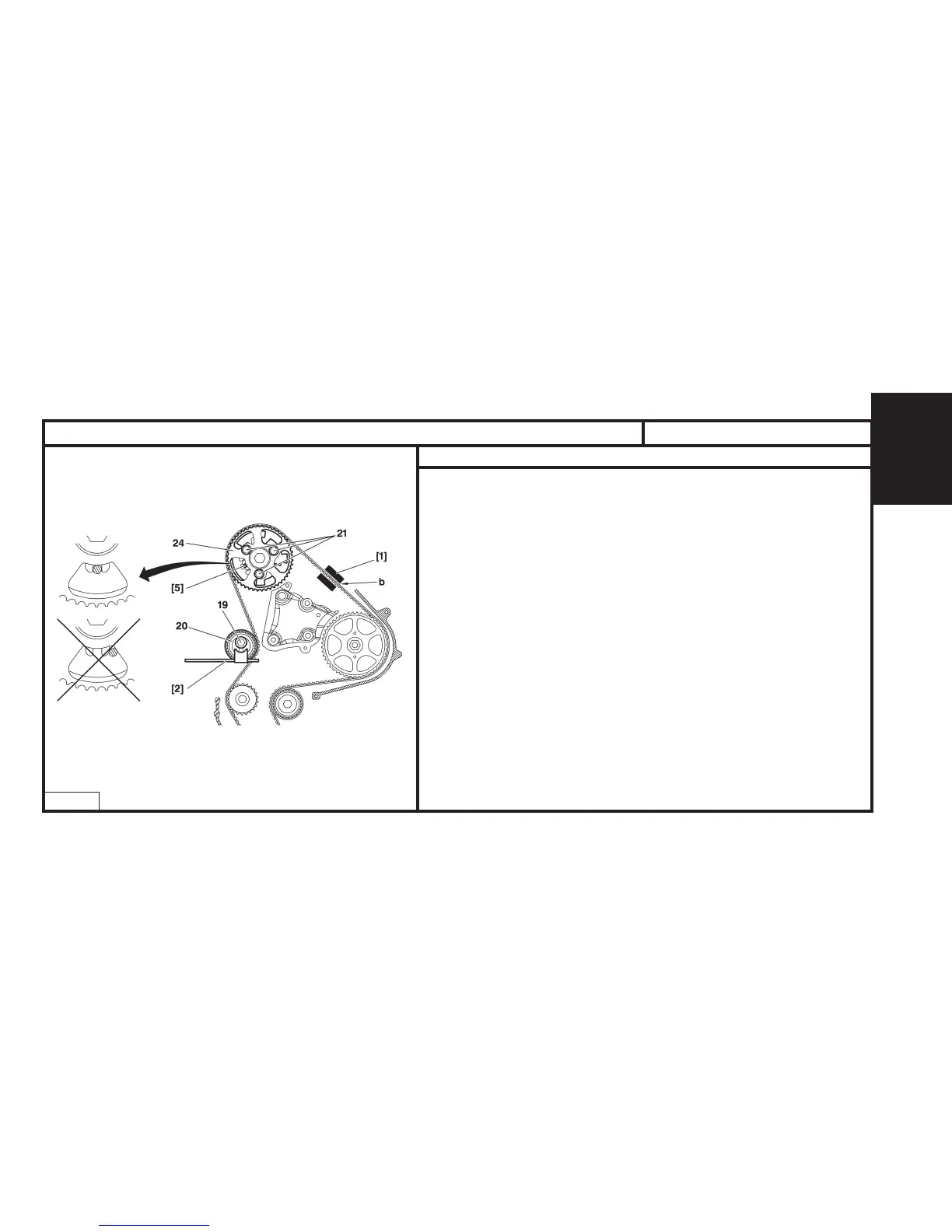

Position tool [1] on the belt at « b ».
Turn the roller (20) (anti-clockwise) using tool [2] to attain a tension of :
98 ± 2 SEEM units
Tighten the screw of the roller (19), tighten to 2.5 m.daN.
Remove one screw (21) from the pinion (24).
(to check that the screws are not against the end of the buttonhole).
Tighten the screws (21) to 2 m daN.
Remove tools [1], [2], [3] and [5].
Rotate the crankshaft 8 times (normal direction of rotation).
Fit the tool [3].
Loosen screws (21).
Fit tool [5].
Loosen screw (19) (to free the roller).
Fit tool [1].
Turn the roller (20) (anti-clockwise), tool [2], to attain a tension of :
54 ± 2 SEEM units.
CHECKING AND SETTING THE VALVE TIMING
Engines : RHY - RHZ # N° RPO 9127
B1EP156D
XSARA - XSARA PICASSO
