194
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engines : RHY - RHZ # N° RPO 9127

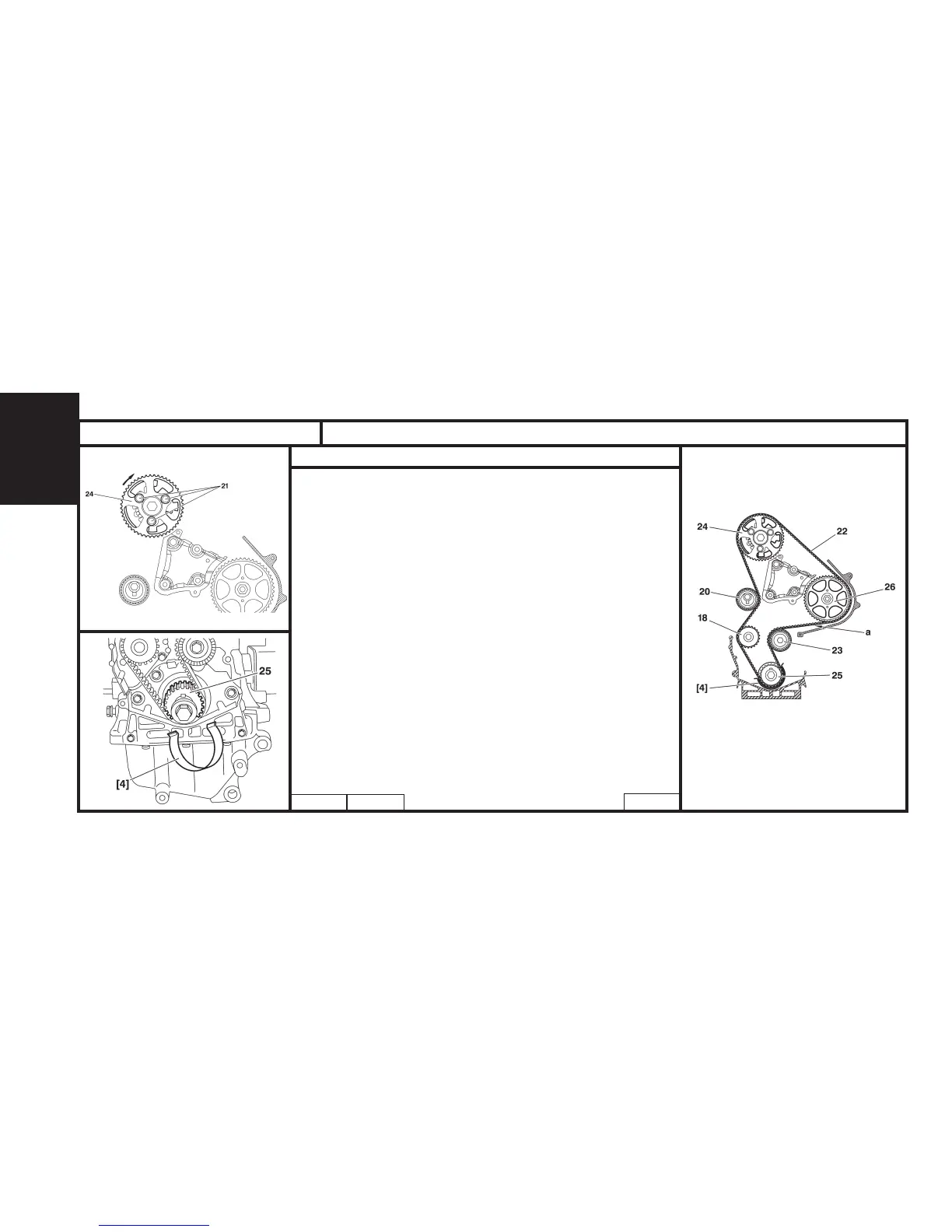

Setting the valve timing (continued)
- Setting the valve timing (continued)
- Retighten screws (21) by hand.
- Turn the pinion (24) (clockwise) to the bottom of the buttonhole.
- Refit the belt on the crankshaft (25), in the following order, using the
tool [4] to keep the belt tight at « a ».
- Guide roller (23).
- Fuel high pressure pump pinion (26).
- Camshaft pinion (24).
- Coolant pump pinion (18).
- Tensioner roller (20).
NOTE : If needed, slightly turn the pinion (24) anti-clockwise (the
offset should not be more than one tooth).
- Remove the tool [4].
B1EP154C
B1EP155D
B1EP153D
XSARA - XSARA PICASSO
