ENGINE

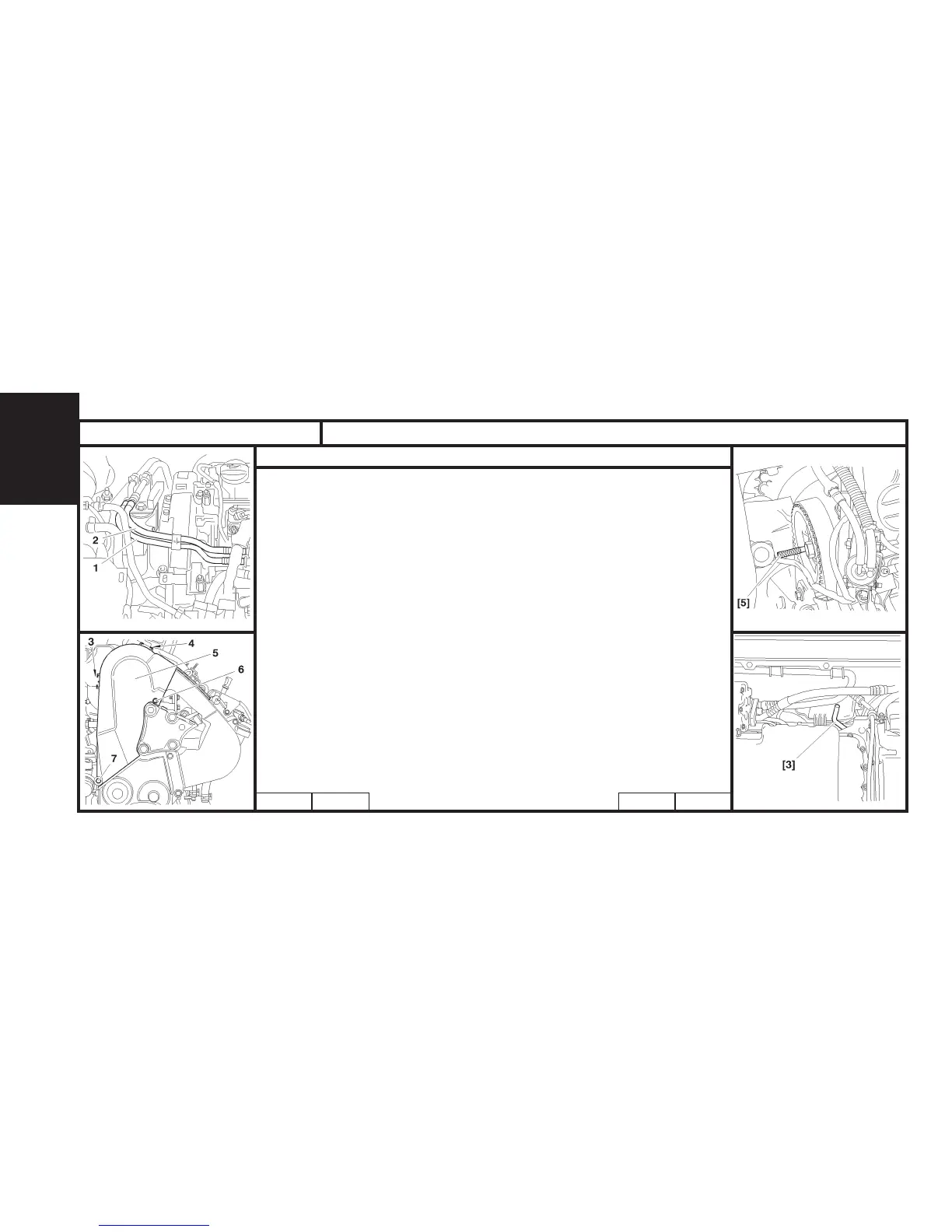

CHECKING AND SETTING THE VALVE TIMING
Engines : RHY - RHZ N° RPO 9128 #
Uncouple, plug and move aside, using tool [7], the fuel delivery pipe (2) and
return pipe (1).
Remove :
Screws (3), (4) and (6).
Screw (7).
The upper timing cover (5).
WARNING : Refit screw (7) equipped with a spacer (17 mm thick), tighten
the screw (7) to 1,5 ± 0,1 m. daN.
NOTE : The screw (7) is one of the screws securing the coolant pump and
is there for its sealing.
Put the gear lever in 5th gear.
Turn the road wheel to turn the engine in its direction of rotation.
Orient the camshaft pulley in the pegging position, use a mirror if necessary.
Peg the camshaft, using tool [5].
Peg the engine flywheel, using tool [3].
