ENGINES
CHECKING THE VALVE TIMING
Engine: RHR
Checks.

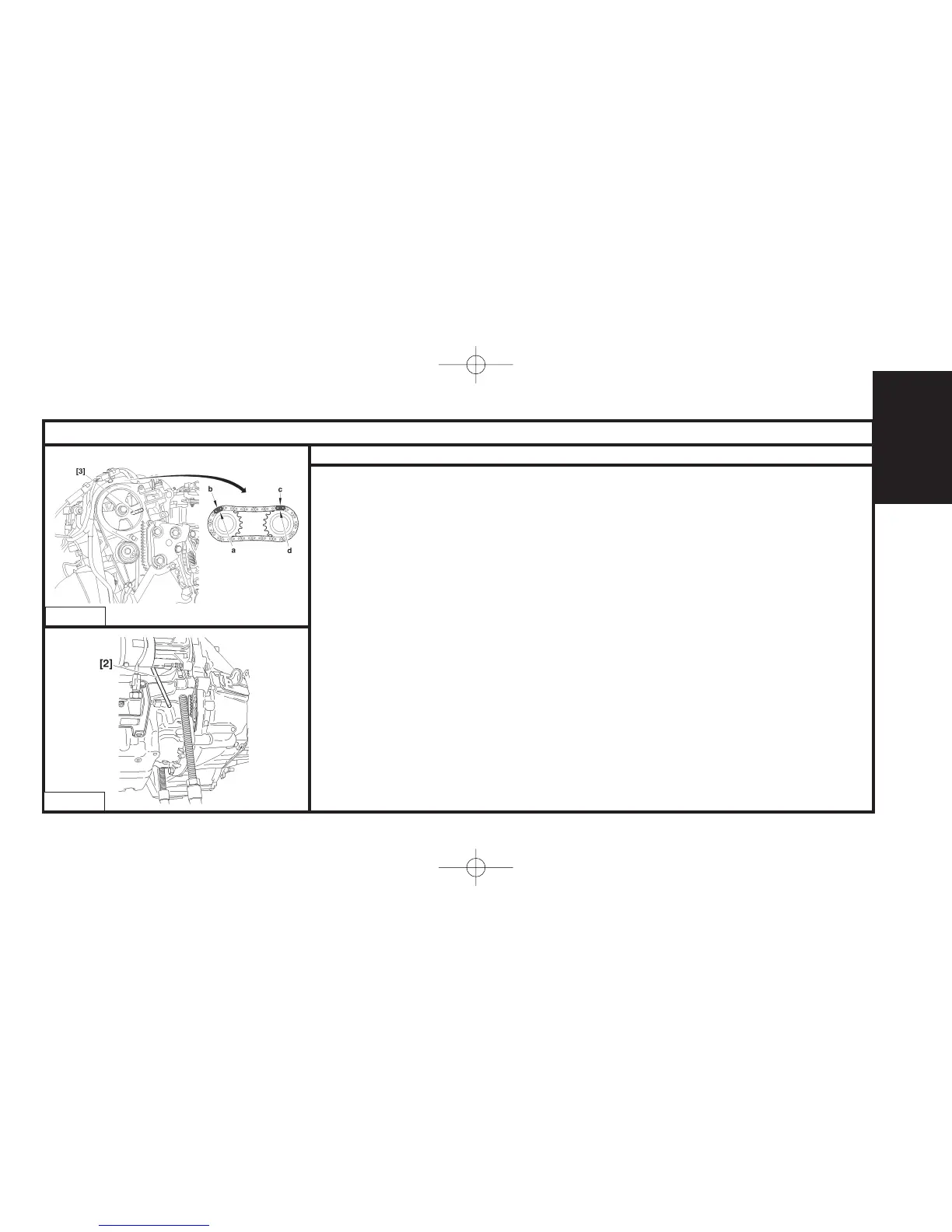

Tu rn the crankshaft in the normal direction of rotation.
Line up the black markings «b» and «c» on the chain with the teeth «a» and «d» of the camshaft drive
pinions (40 turns of the camshafts maximum).
IMPERATIVE: If it is impossible to line up the markings on the chain with the camshaft drive
pinions, repeat the setting of the camshafts (see operation: removing-refitting camshafts).
Peg:
- The crankshaft, using tool [2].
- The camshaft pinion, using tool [3].
Remove tools [1] and [3].
Complete the refitting.
B1EP1FND
B1BP31FC
