203
ENGINES

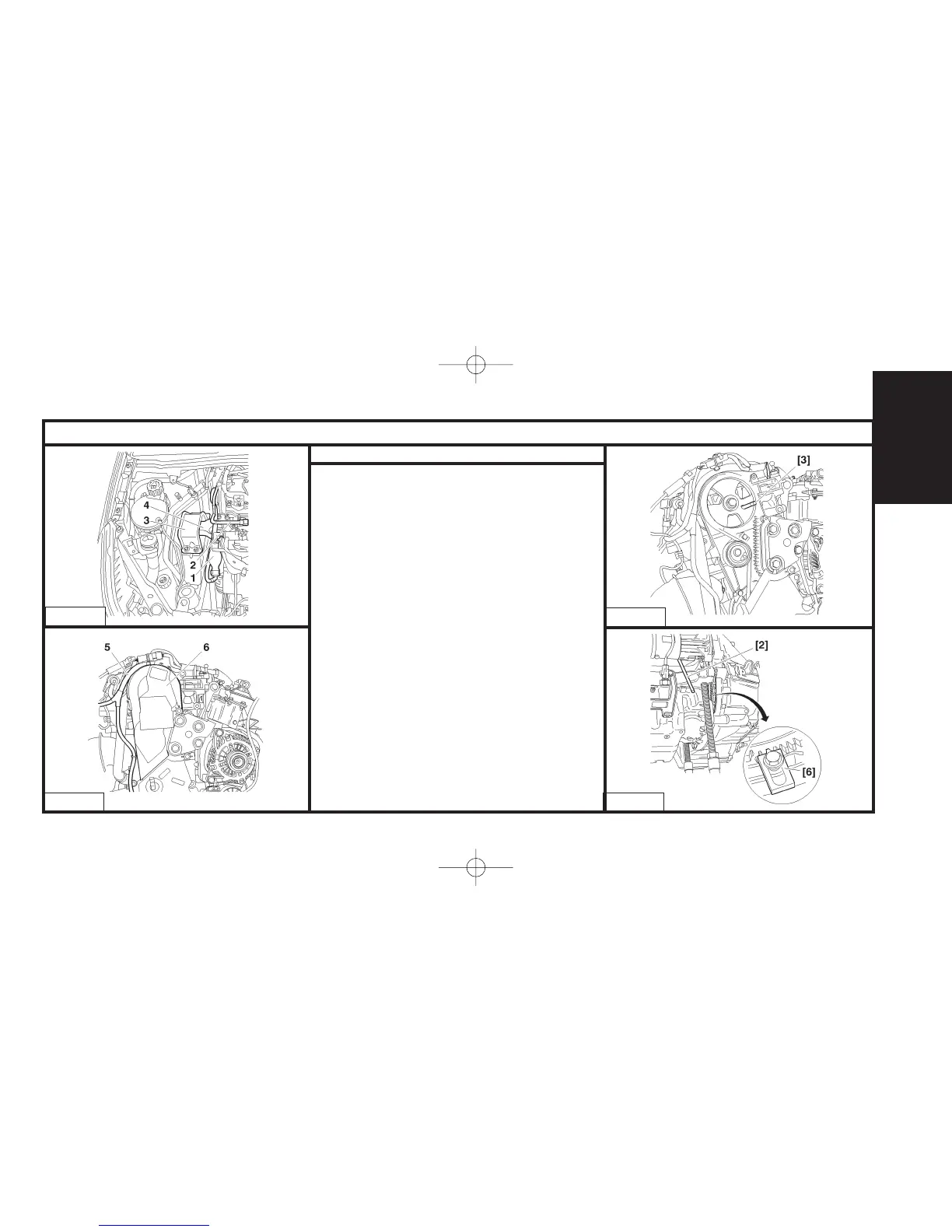

CHECKING AND SETTING THE VALVE TIMING
Engine: RHR
Uncouple, plug and move aside, using tool [7], the
fuel delivery pipe (1) and the fuel return pipe (2).
Suspend the engine, using a workshop hoist.
Remove the bracket (3) and the RH engine
support (4).
Move aside the electrical harness (5).
Remove:
- The upper timing cover screws.
- The upper timing cover (6).
Rotate the engine by means of the auxiliaries drive
pulley.
Orient the camshaft pinion in the pegging position,
use a mirror if necessary.
Peg the camshaft, using tool [3].
Peg the engine flywheel, using tool [2].
Lock the flywheel, using tool [6].
B1BP351C
B1EP1FAC
B1EP1FBC
B1BP31EC
