302

CLUTCH

GEARBOX

DRIVESHAFTS

TIGHTENING TORQUES: ML6 GEARBOX

Engine: RHR

B2CP3ZNC

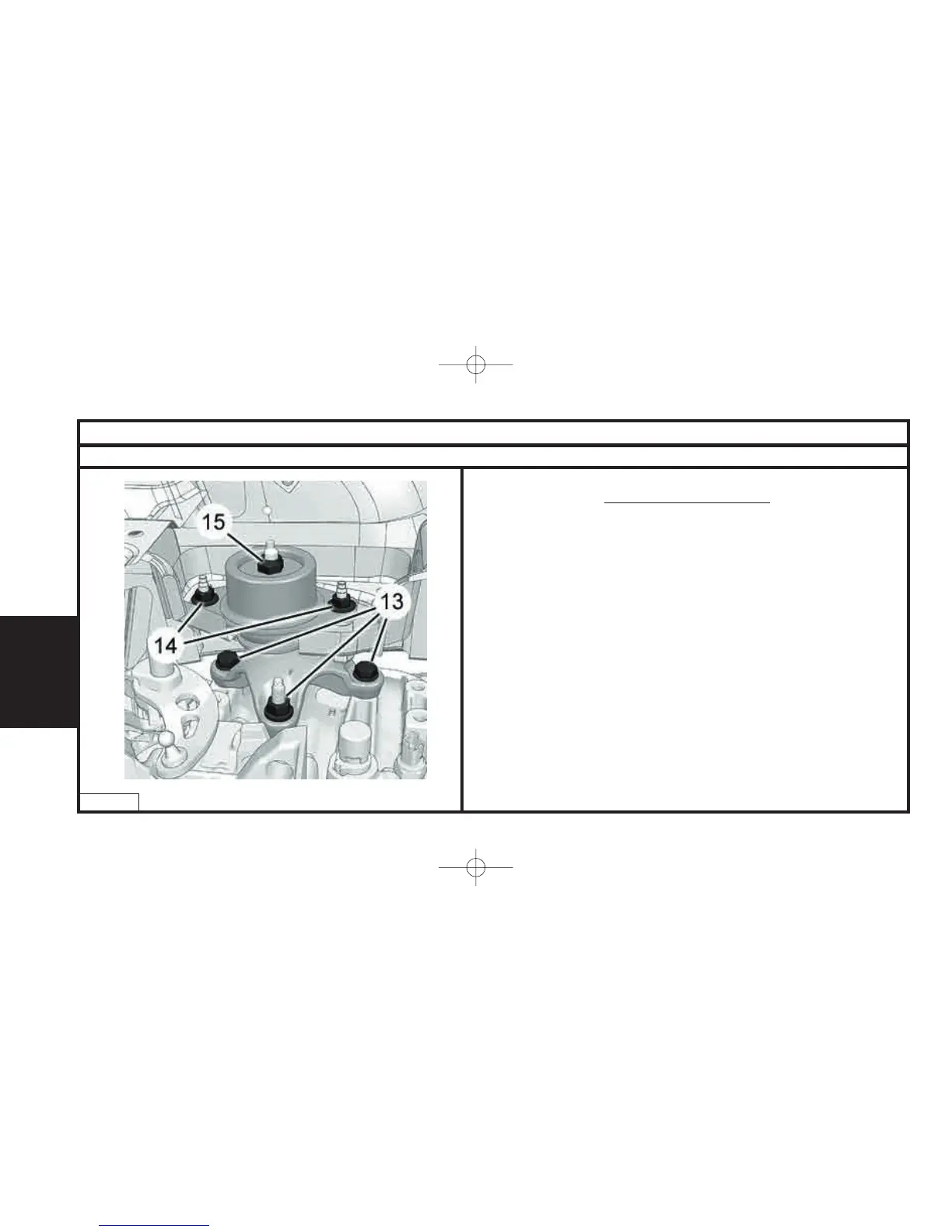

Tightening torques (m.daN).

(13) Screws/nuts fixing the gearbox support : 4,5 ± 0,4

(14) Screw fixing the rubber bush :3 ±0,3

(15) Nut fixing the gearbox casing : 6,5 ± 0,6
