OEM Filter System Setup

In OEM Filter System Setup the OEM chooses the time for the cycles selected in OEM Cycle Sequence and speciﬁ es other

operating parameters for the system. The upper and lower limits of the allowable values for the cycles are as follows:

NOTE: Fill is in liters.

Since no time is associated with the END cycle, the END cycle will not appear in the OEM Filter System Setup sequence.

Step 1F – Press NEXT and ▼ simultaneously for 3 seconds and release. If screen in Step 2F does not

appear in 5 seconds the lock on the valve is activated. To unlock press ▼, NEXT, ▲, and SET CLOCK in

sequence, then press NEXT and ▼ simultaneously for 3 seconds and release.

Step 2F – Choose FILTERING using the ▼ or ▲ buttons. Press NEXT to go to Step 3F. Press REGEN to

exit OEM Filter System Setup.

Step 3F – Select the time for the ﬁ rst cycle (which in this example is BACKWASH) using the ▼ or ▲

button. Press NEXT to go to Step 4F. Press REGEN to return to previous step.

Step 4F – Select the time for the second cycle (which in this example is dn BRINE) using the ▼ or ▲

button. Press NEXT to go to Step 5F. Press REGEN to return to previous step.

NOTE: The display will ﬂ ash between cycle number and time, and brine direction (dn Brine).

Step 5F – Select the time for the third cycle (which in this example is RINSE) using the ▼ or ▲ button.

Press NEXT to go to Step 6F. Press REGEN to return to previous step.

Step 6F – Select the volume in liters for the fourth cycle (which in this example is FILL) using the

▼ or ▲ button. Press NEXT to go to Step 7F. Press REGEN to return to previous step.

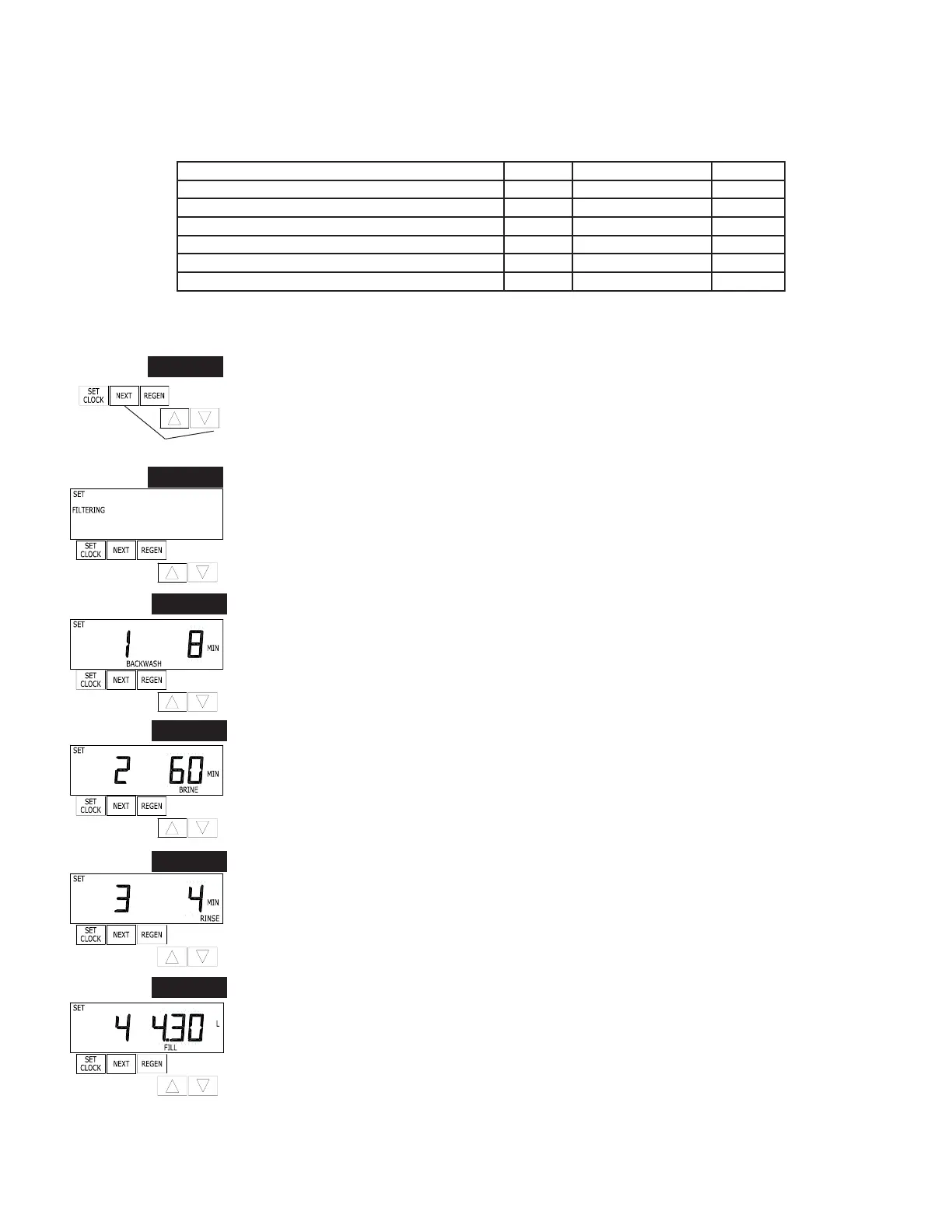

STEP 1F

➟

STEP 2F

➟

STEP 3F

➟

STEP 4F

STEP 5F

STEP 6F

➟

Cycle Options Units Lower/Upper Limit Default

Backwash Minutes 1 to 1200 8

Rinse (fast) Minutes 1 to 1200 4

dn Brine (combination of brining and slow rinse) Minutes 1 to 1200 60

UP Brine (combination of brining and slow rinse) Minutes 1 to 1200 60

Fill Liters 0.05 to 95.00 4.30

Service Minutes 1 to 990 240
