28

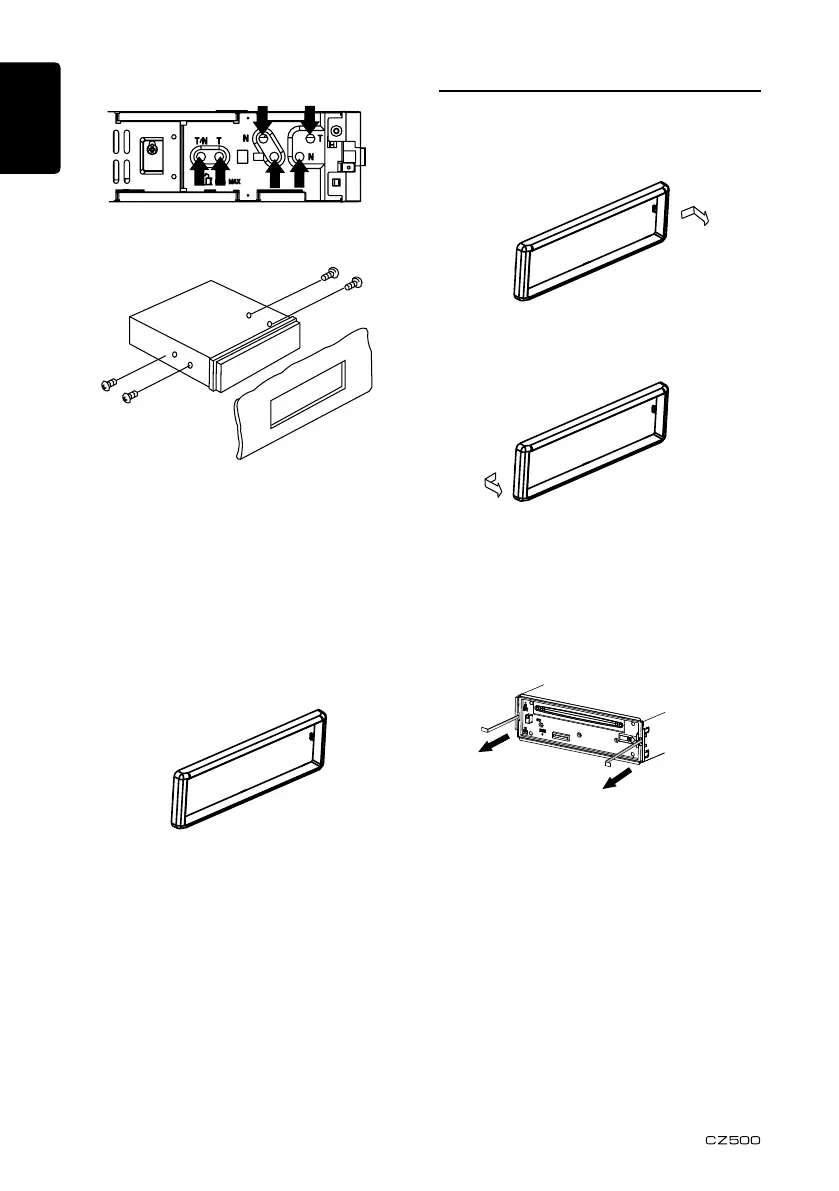

Method B
1. Insertthisunitdirectlytotheopeningofthe
dashboard.
2. PlaceM5×6cylindricalscrewthroughthe
holes of the mounting frame located inside
the opening to holes of the unit and fasten
thescrewstoleft&right.
Trim ring installation
Attach the trim ring around the front panel.
6) Removing the Source Unit
M5×6
Mounting frame
Dashboard
Disassemble trim ring
1. Pushthetrimringupwardandpulloutthe
upper part.
2. Pushthetrimringdownwardandpullout
thelowerpart.
Disassemble the unit
1. Switchothepower.
2. Remove the panel.
3. Remove the trim ring.
4. Inserttheremovalkeysstraightbackuntil
they lock, then pull the unit out.
5. Disconnectallthewires.
