Clarke IMAGE 16 I User Manual

Ref. Part No. Description Qty
1 35231A Housing, Brush 1
2 980202 Washer, Wave 1
3 52654A Coupling Male QD 1
4 87026A Washer ¼, Flat S.S. 1
5 85521A Screw, 10-24 x ½ 1
6 81104A Nut ¼ -20 1
7 68775A Plate, Spray S.s. 1
8 58517A Spacer 1
9 47807A Terminal, #10 Ring 1
10 925549 Pin,
3
/16 x 1½ Roll 1
11 960970 Bolt, Shoulder
3
/8 x ½ x 1½ 2
12 45022C Motor, Brush Drive 1
12a 40832A Brush Carbon 2
13 57268A Pulley 1
14 68666B Plate, Brush 1
15 84237A Screw, 10-32 x ½ S.S. 12
16 54880A Housing, Spray Nozzle 1
17 54339A Cap w/Seal Assembly 1
17a 30042A Gasket, Spray 1
18 54155A Nozzle, #2 x 150 (i model) 1
52467A Nozzle, #5 x 150 (ix model) 1
19 66970A Bracket, Brush Retainer 1
**FIFQD=Fully Insulated Female Quick Disconnect
Ref. Part No. Description Qty
20 66188C* Pivot, Brush 2
21 53047A* Seal 2
22 902648* Bearing 2
23 66187B Sprocket, 28T 1
24 34273A Gasket, Brush 1
25 63060A* Brush, Maintenance 1
25a 63059A Brush, Restoration 1
26 962628 Screw, Set 8-32 x
3
/16 2
27 50909A Belt 1
28 47701A Terminal, ¼ FIFQD** 2
29 980603 Washer, #10 Ext. Lock 2
30 920224 Nut, 10-32 Hex 2
31 628382 Spring 1
32 67148B Rod, Brush Adjustment 1
33 85605A Screw, 10-24 x ¾ SS 1
34 63071A Bracket Brush Stop 1
35 85903A Screw, 10x½ 6
36 38404A Shield, Deflector 1
37 14657A Kit, Restoration, Brush includes Ref
one of:(#20, 21, 22, 25)
37A 14671A Kit, Interim Brush includes Ref
1 each of: (# 20, 21, 22, 25a)
(ix model only)
38 30076A Strainer 1
NI 699202 Cable Tie 2
Clarke
®
Image 16i/ix

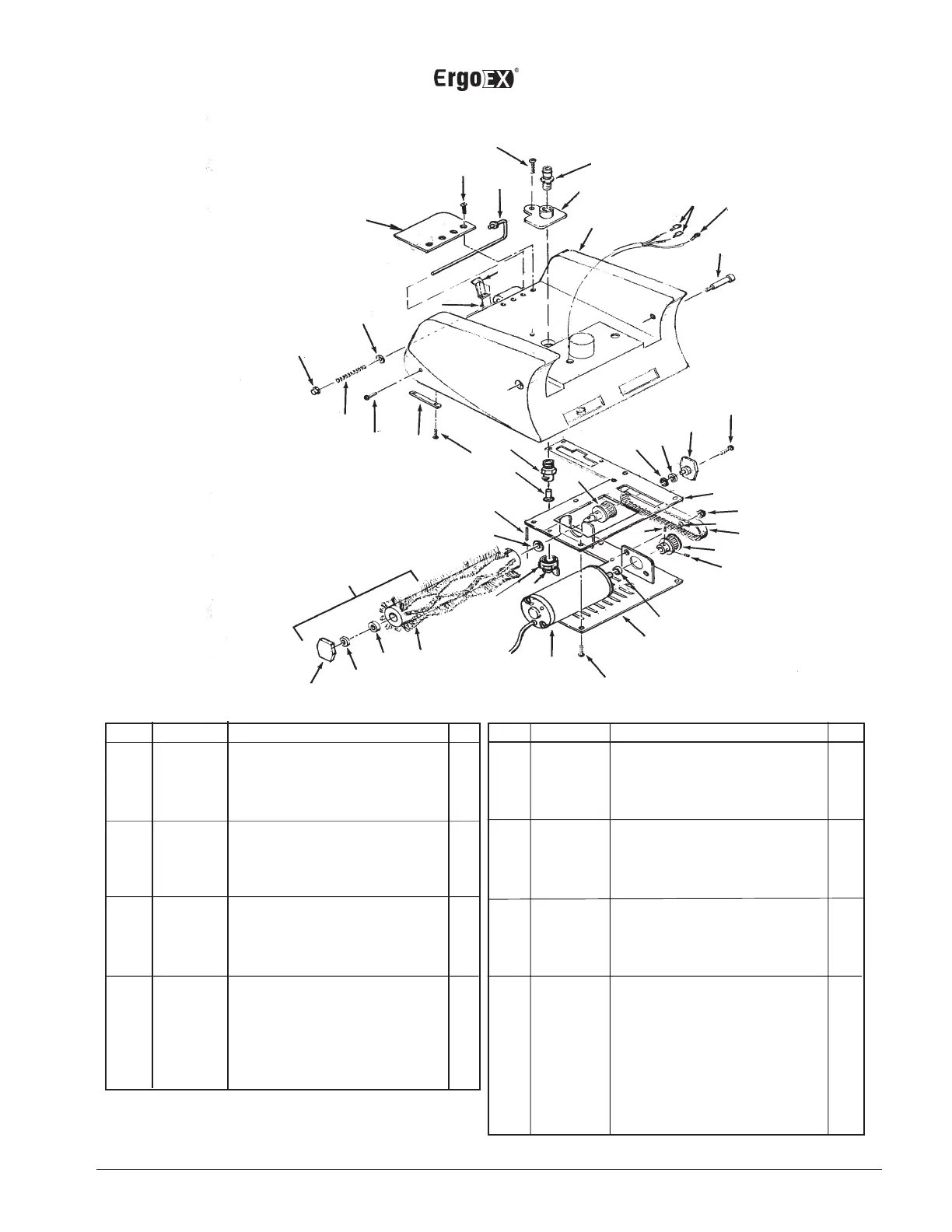

Drawing and Parts List, Brush Housing Assembly 12/01
Form #10334A ix, 10262A i
*When servicing these items (#'s 21, 22, and 25) see page
26 Brush Maintenance.
15
3
7
32
35
1
36
35
34
4
6
31
5
19
15
16
10
2
23
22
21
20
33
24
30
27
29
13
26
26
17
17a
18
14
15
12
12
A
25
22
21
20
37
11
9
28
38
8
Clarke
®
Operator's Manual Image 16 I/IX 120V - 47 -
