Clarke IMAGE 16 I User Manual

Ref. Part No. Description Qty
1 50248A Clamp, Hose 10
2 30425A Hose, Air 24" 2
3 170030 Hosebarb 1
4 68665A Support, Valve 1
5 839204 Trim 3
6 85395A Screw, ¼-20 x ½ 4
7 980410 Washer, S.S. 4
8 170040 Elbow 1
9 697501 Reducer 1
10 737140 Quick Disconnect 1
11 35172B Hose, 4½" 1
12 170030 Hosebarb, Nylon 2
13 53050A Strainer, Bowl (incl. #13a,b, c) 1
13a 58061A Screen, Filter 1
13b 54369A Gasket, Viton 1
13c 50018A Bowl, Filter 1
14 85383A Screw, 10-32 2
Ref. Part No. Description Qty
15 980603 Washer, #10 Ext. Lock 2
16 920224 Nut, 10-32 Hex 2
17 962987 Screw, 10-24 x
3
/8 1
18 692870 Elbow, Swivel 2
19 35147A Hose 14" 2
20 59785A Valve, Solution Flow 1
21 59016A Tee 1
22 53617A Elbow, ¼ NPT x
3
/8 Hosebarb 1
23 50328A Coupling, Female Q.D. shut-off 1
24 170863 Washer, flat
3
/8 2
25 302101 Clip 1
26 77094A Label, Ground Symbol 2
27 68668B Plate, Rear, Cover 1
28 49068A Wire, Ground 1
29 10305A Plumbing Asm. (incl. items 18, 1
1, 19, 2, 21, 20, 12, 22, 9 and 23)
30 732870 Elbow, Brass 1
Clarke
®
Image 16i

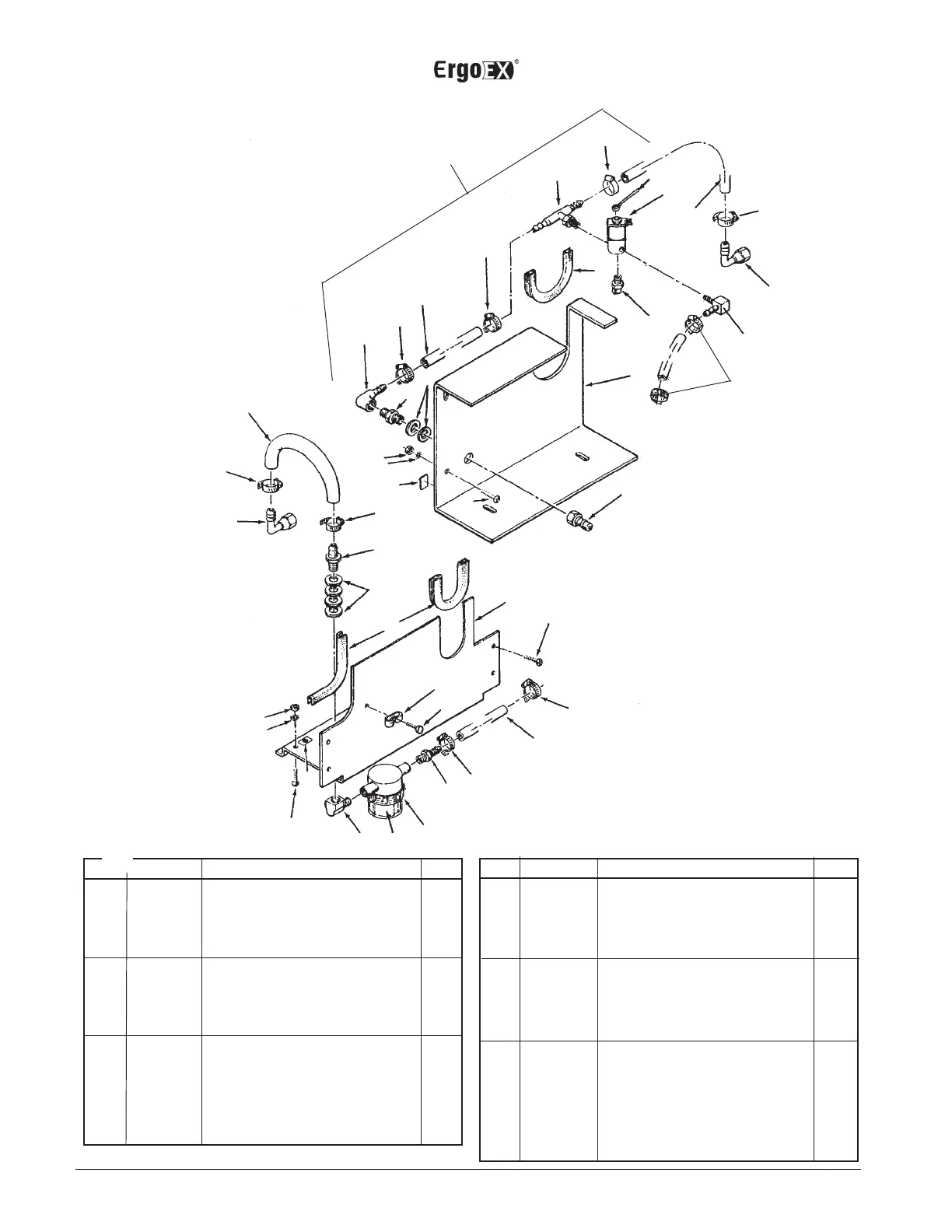

Drawing and Parts List, Valve Assembly 1/02
Form #10351A
13, 13a, 13b, 13c
29
22
1
2
1
21
1
19
28
5
23
1
18
30
27
1
10
20
24
26
9
15
16
14
4
6
1
11
1
12
29
8
25
17
14
26
15
16
5
7
3
1
18
1
2
Clarke
®
Operator's Manual Image 16 I/IX 120V - 51 -
