Clarke IMAGE 16 I User Manual

Ref. Part No. Description Qty
1* Nut 1
2* Housing Vent 1
3* Fan 1
4 85303A Screw, 8-32 x
3
/8 4
5 40812A Brush, Mechanism 2
6 51914A Clamp 2
7 50618A Bracket, End, Com. 1
8* Bearing 1
9 672714 Disc 1
10* Bearing 1
11* Washer 1
12* Bracket, Fan End 1
13* Spacer 1
Ref. Part No. Description Qty
14* Fan, Rotating 2
15* Spacer 2
16* Fan, Stationary 1
17* Shell, Fan 1
18 638313 Spring, Load 1
19 53995A Fan, Air Seal 1
20* Fan, Stationary 1
21* Fan, Rotating 1
22* Washer 1
Clarke
®
Image 16

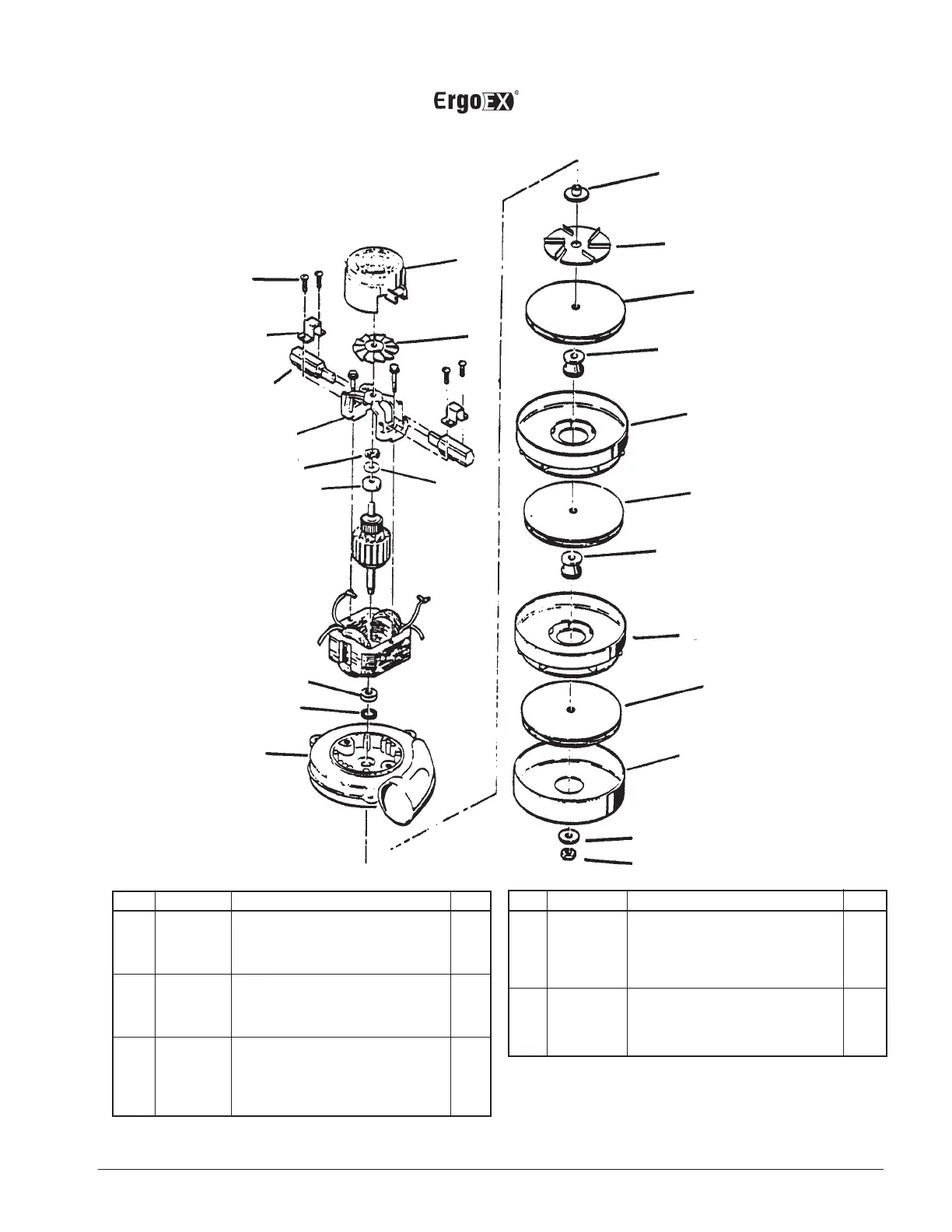

Drawing and Parts List 6/95
Motor (#44911R)
NOTE: #'s 1,2,3,8,10,11,12,13,14,15,16,17,20,21,22
are not available at this time.
4
6
5
7
18
8
9
3
2
10
11
12
1
22
17
21
20
15
14
16
15
14
19
13
Clarke
®
Operator's Manual Image 16 I/IX 120V - 53 -
