Clarke IMAGE 16 I User Manual

Clarke
®
Operator's Manual Image 16 I/IX 120V - 49 -
Clarke
®
Image 16ix
Ref. Part No. Description Qty
3 34809C Handle, Control 1
4 47411A Switch, Vacuum/Accessories 1
5 47412A Switch, Spray/Brush 1
6 84237A Screw, 10-32 x ½ 2
7 85383A Screw, 10-32 x ¾ 2
8 980603 Washer, #10 Ext Lock 2
9 920224 Nut, 10-32 2
10 77094A Label, Ground Symbol 1
11 41965A Cord, Interconnect (does not
include #'s 26, 14, 13 & 29) 1
12 47708A Terminal, ¼ FIMQD* 1
13 911933 Terminal, #10 Insulated Ring 1
14 58013A Strain Relief 1
15 170870 Washer,
7
/8 Flat 1
16 46103A Rectifier 1
17 920722 Nut, 10-32 Elastic Stop 1
18 68776A Panel, Electrical 1
19 41435B Breaker, Brush 1.25A 1
Ref. Part No. Description Qty
20 82100A Lock Nut, ½ Conduit 1
21 49724B Cord, Harness Machine 1
22 52504A Control, Speed, Variable 1
23 47712A Terminal, ¼ FIFQD* 1
24 55502A Knob, Speed Control 1
25 42189A Cord, Power 50'
(does not include #27) 1
26 912169 Plug, Male 115 Volts 1
27 911461 Plug, Female Twistlock 1
28 77260A Label, Solution 1
29 47711A Terminal, ¼ FIFIQD** 2
31 980666 Washer, 3/8 Ext. Star 1
32 40147A Cord Assembly (includes 25, 27) 1
33 40146A Cord Asm.,
(includes 11,13, 14,26,28) 1
34 61088A Belt, ErgoEX 1
35 80156A Screw,
5
/16-18 1
36 81112A Nut,
5
/16 ESNA 1
NI 699202 Cable Tie 1
*FIMQD=Fully Insulated Male Quick Disconnect
**FIFQD=Fully Insulated Female Quick Disconnect
21
12
23
22
25
7
31
27
5
29
13
26
11
14
24
28
4
3
16
17
9
8
10
18
19
20
15
33
7
6
32

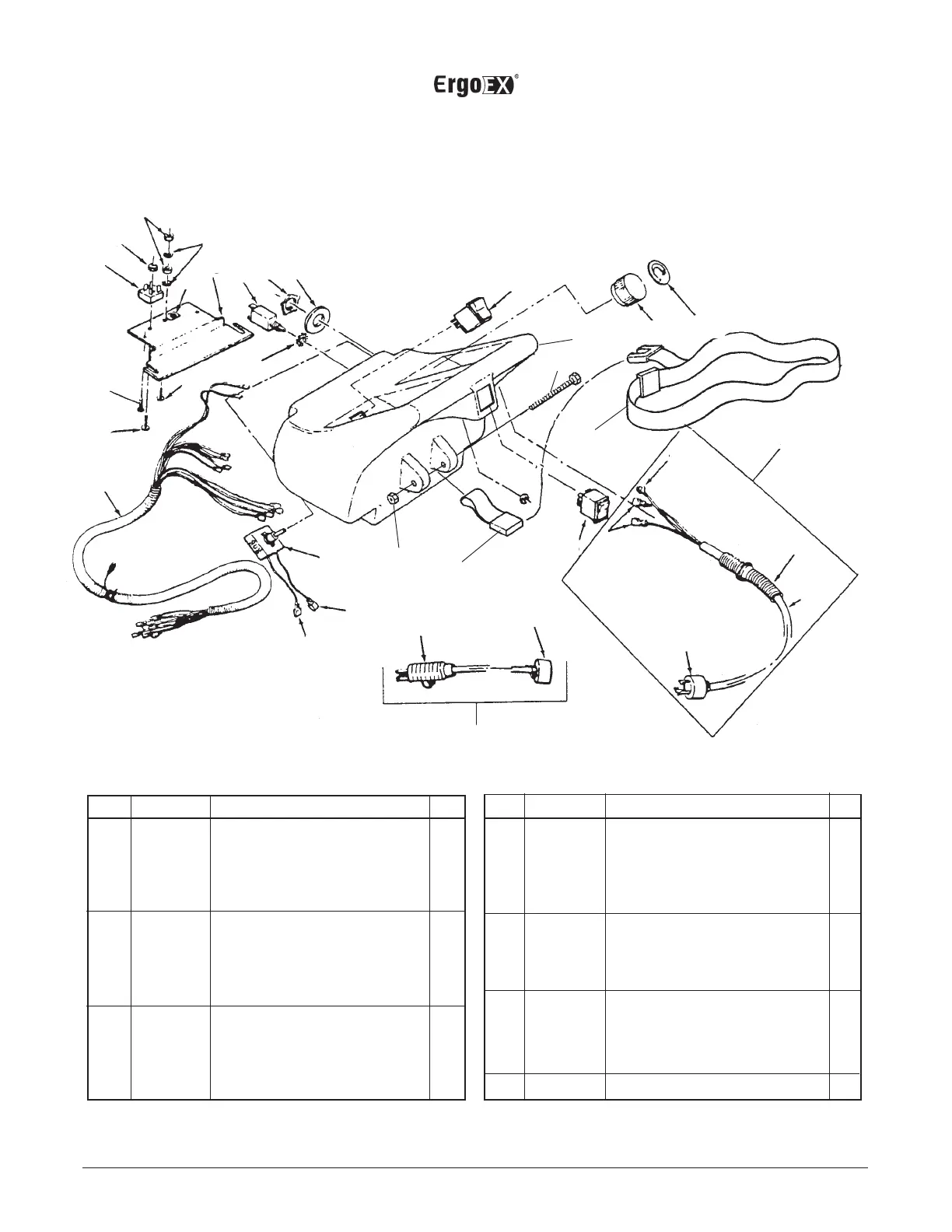

Drawing and Parts List, Electric Assembly 1/02
Form# 10285A
34
34
35
36
