Ref. Part No. Description Qty
1 50248A Clamp, Hose 14
2 30425A Hose, Air 24" 1
3 170030 Hosebarb 1
4 68665A Support, Filter 1
5 839204 Trim 3
6 85395A Screw, ¼-20 x ½ 4
7 980410 Washer, S.S. 4
8 170040 Elbow 1
9 697501 Reducer 1
10 737140 Quick Disconnect 1
11 35172B Hose, 4½" 1
12 53619A Hosebarb, Nylon 1
13 53050A Strainer, Bowl
(includes 13a, b, c) 1
13a 58061A Screw, Filter 1
13b 54369A Gaskets, Viton 1
13c 50018A Bowl, Clear Filter 1
14 85383A Screw, 10-32 x
3
/4 2
15 980603 Washer, #10 Ext. Lock 4
16 920224 Nut, 10-32 Hex 4
17 962987 Screw, 10-24 x
3
/8 1
Clarke
®
Image 16ix

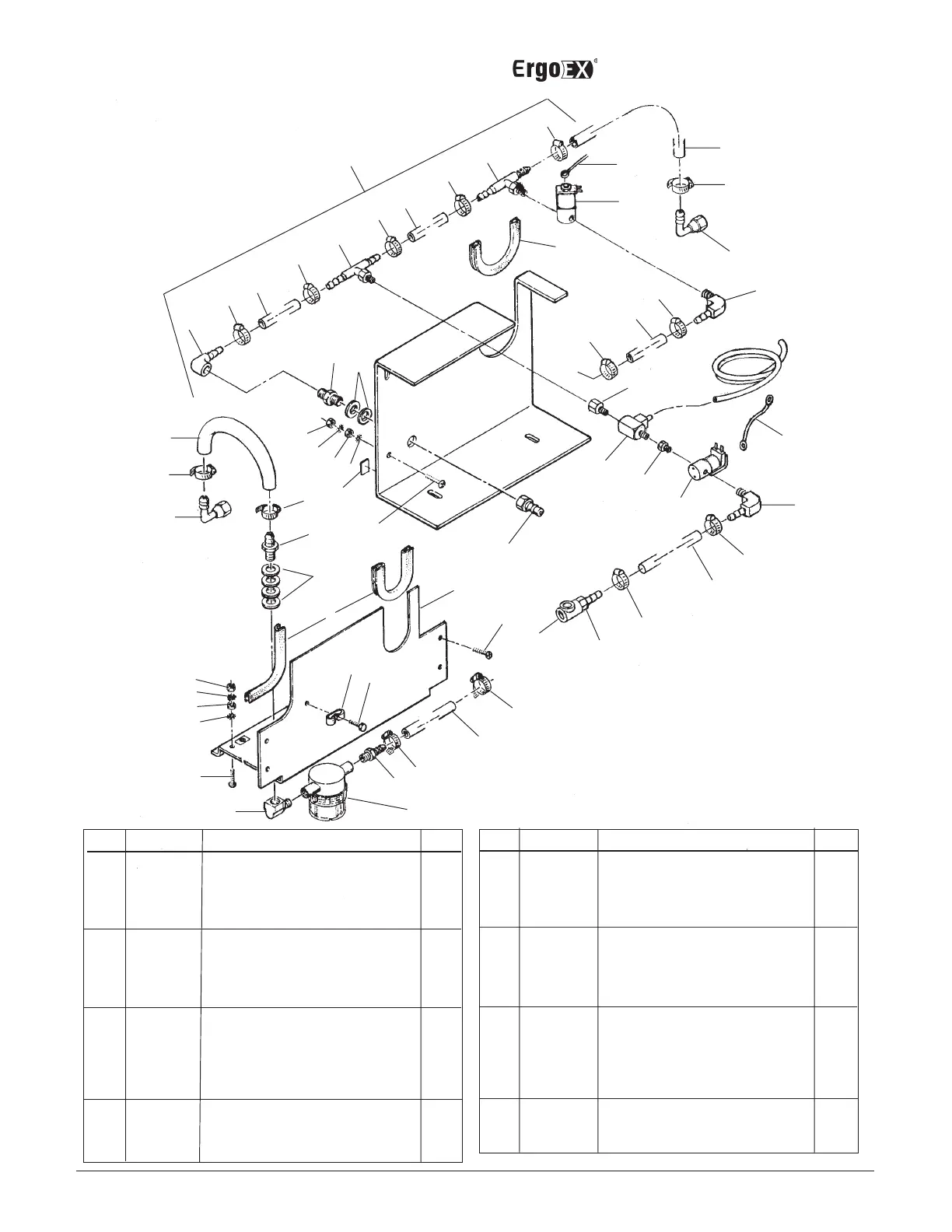

Drawing and Parts List, Valve Assembly 12/01
Form # 10284A
Ref. Part No. Description Qty
18 692870 Elbow, Swivel 2
19 30190A Hose 14" 4
20 59622A Valve, Solution Flow 2
21 59016A Tee 2
22 53617A Elbow, ¼ NPT x
3
/8 Hosebarb 1
23 52403A Coupling, Female Q.D. Shutoff 1
24 170863 Washer, Flat
3
/8 2
25 302101 Clip 1
26 77094A Label, Ground Symbol 2
27 68668A Plate, Rear, Cover 1
28 49068A Wire, Ground 1
29 35167A Hose 1
30 851144 Adaptor 1
31 732870 Elbow 2
32 51207A Injector 1
33 52464A Adaptor, ¼ NPT to
1
/8 NPT 1
34 732870 Elbow, Brass 1
35 10299A Plumbing Asm. (incl. 9, 22, 1, 19, 1
21, 18, 20, 31, 33, 32, 30, 23)
1
28
20
19
1
18
31
1
1
19
33
32
30
20
28
31
1
19
1
23
10
14
4
6
1
11
1
12
13, 13a, 13b, 13c
8
25
17
14
15
16
5
21
1
29
1
21
1
19
1
22
9
24
16
15
16
15
26
2
1
18
1
3
7
5
16
15
To rinse jets
(recovery tank)
To pre-spray bar
(brush housing)
35
