Operator's Manual Image 16 I/IX 120V
Clarke
®
Image 16i

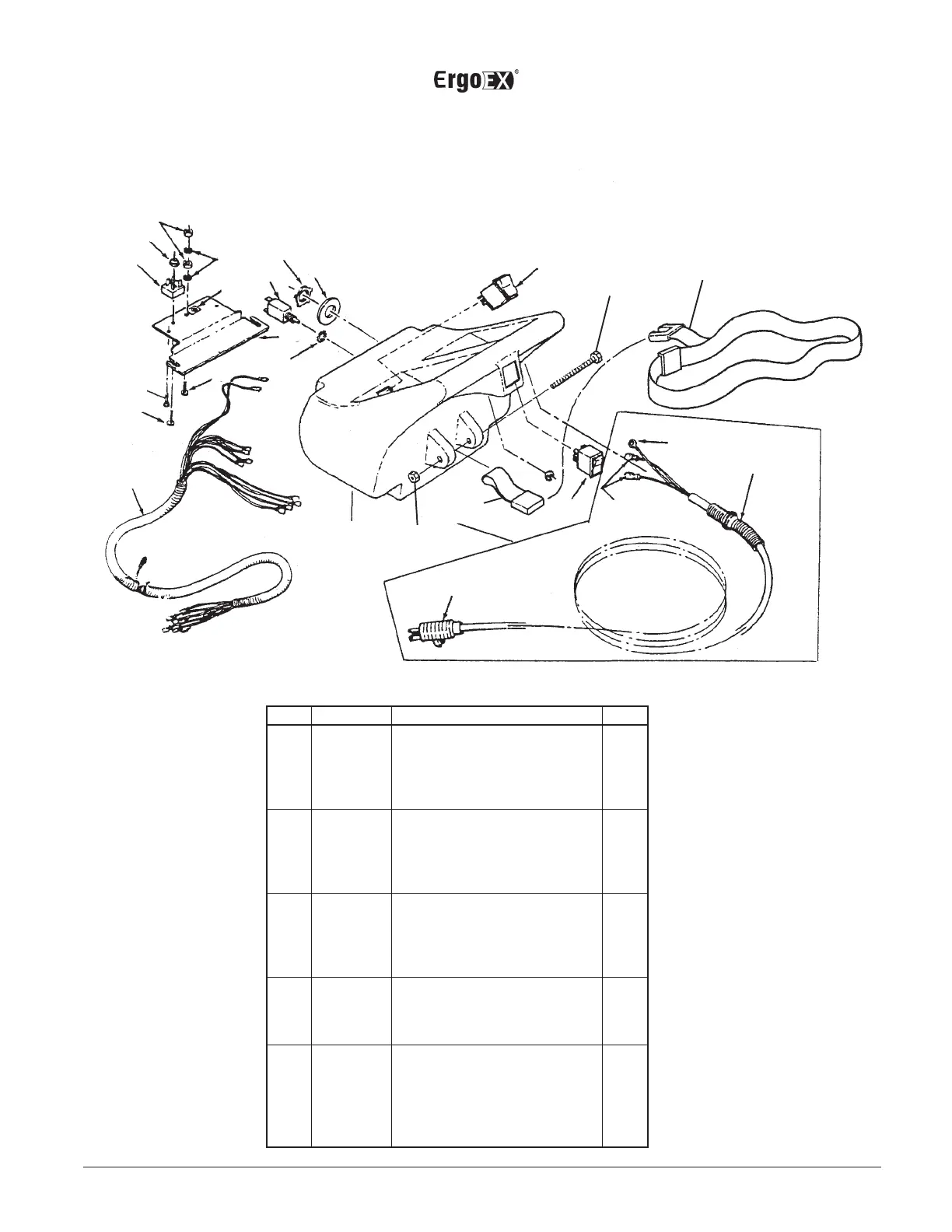

Drawing and Parts List, Electric Assembly 1/02
Form #10263A
Ref. Part No. Description Qty
3 34809C Handle, Control 1
4 47411A Switch, Vacuum/Accessories 1
5 47412A Switch, Spray/Brush 1
6 84237A Screw, 10-32 x ½ 2
7 85383A Screw, 10-32 x ¾ 2
8 980603 Washer, #10 Ext. Lock 2
9 920224 Nut, 10-32 2
10 77094A Label, Ground Symbol 1
11 42188A Cord, Power 35' 1
12 47711A Terminal, ¼ FIFQD* 2
13 911933 Terminal, #10 Insulated Ring 1
14 58013A Strain, Relief 1
15 170870 Washer,
7
/8 Flat 1
16 46103A Rectifier 1
17 920722 Nut, 10-32 Elastic Stop 1
18 68776A Panel, Electrical 1
19 41435B Breaker, Brush 1.25 A 1
20 82100A Lock Nut, ½ Conduit 1
21 49724B Cord, Harness Machine 1
23 980666 Washer,
3
/8 Ext. Star 1
24 40148A Cord Assembly, 35' 1
25 61088A Belt, ErgoEX 1
26 80156A Screw,
5
/16-10 x 4 1
27 81112A Nut,
5
/16 ESNA 1
NI 699202 Cable Tie 1
*FIFQD=Fully Insulated Quick
Disconnect
9
17
16
10
6
7
21
23
7
18
14
4
5
13
12
11
3
19
20
15
26
27
24
25
25
