Clarke IMAGE 16 I User Manual

Clarke
®
Image 16i/ix

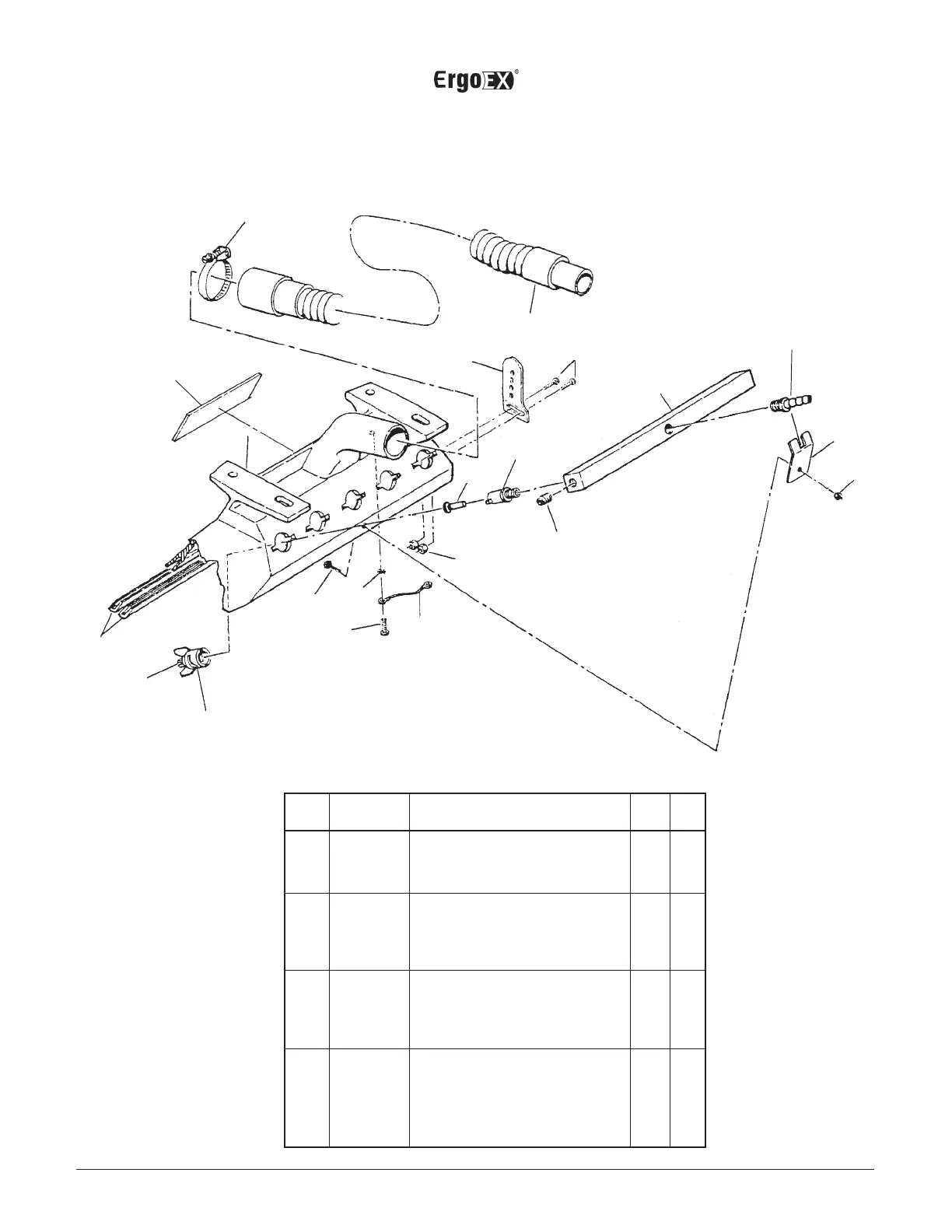

Drawing and Parts List, Recovery Shoe Assembly 1/02
Form #19223A - 16i
Form #10335A - 16ix W/R
Ref. Part No. Description Qty Qty
i ix
1 28204B Shoe, Recovery 1 1
2 53619A Hosebarb, Nylon 1 1
3 67615A Shoe, Recovery S.S. 2 2
4 872010 Clamp, Hose 1 1
5 36505A Manifold, Spray 1 1
6 696801 Plug, ¼ Recess 2 2
7 63063A Bracket, Manifold Retainer 1 1
8 962798 Screw, 10-24 x ½ 3 3
9 54880A Housing, Spray 4 4
10 81110A Nut, 10-24 Nylock S.S. 3 3
11 30426A Hose, Recovery 1 1
12 54339A Cap w/Gasket Asm. 4 4
12a 30042A Gasket, Spray 4 4
13 54157A Nozzle, 110° x 1 Brass Q.D. 4 4
14 962333 Screw, 10-32 x
3
/8 11
15 49067A Wire, Ground 1 1
16 980603 Washer, #10 Ext. Lock 1 1
17 63061C Bracket, Brush Adj. 1 1
18 30076A Strainer 1 1
19 70369A Label, Wash & Rinse - 1
4
11
17
8
1
5
9
6
10
16
8
13
12,
12A
3
14
15
10
7
2
18
19
- 50 - Clarke
®
Operator's Manual Image 16 I/IX 120V
