previous character before the cursor.
z In motion detection setup, working with Fn and
direction keys to realize setup.
z In text mode, click it to switch between numeral,
English character (small/capitalized) and etc.
z In HDD management interface, you can click it to
switch HDD record information and other
information (Menu prompt)
z Realize other special functions.
USB2.0 port
To connect USB2.0 storage device, USB2.0 mouse, burner and
etc.
Power
indication light
Power indication light.
HDD abnormal
indication light
HDD error occurs or HDD capacity is below specified threshold
value, the light becomes red to alert you.
Network
abnormal
indication light
Network error occurs or there is no network connection, the
light becomes red to alert you.
Alarm
indicator light
The light becomes on when an alarm occurred.

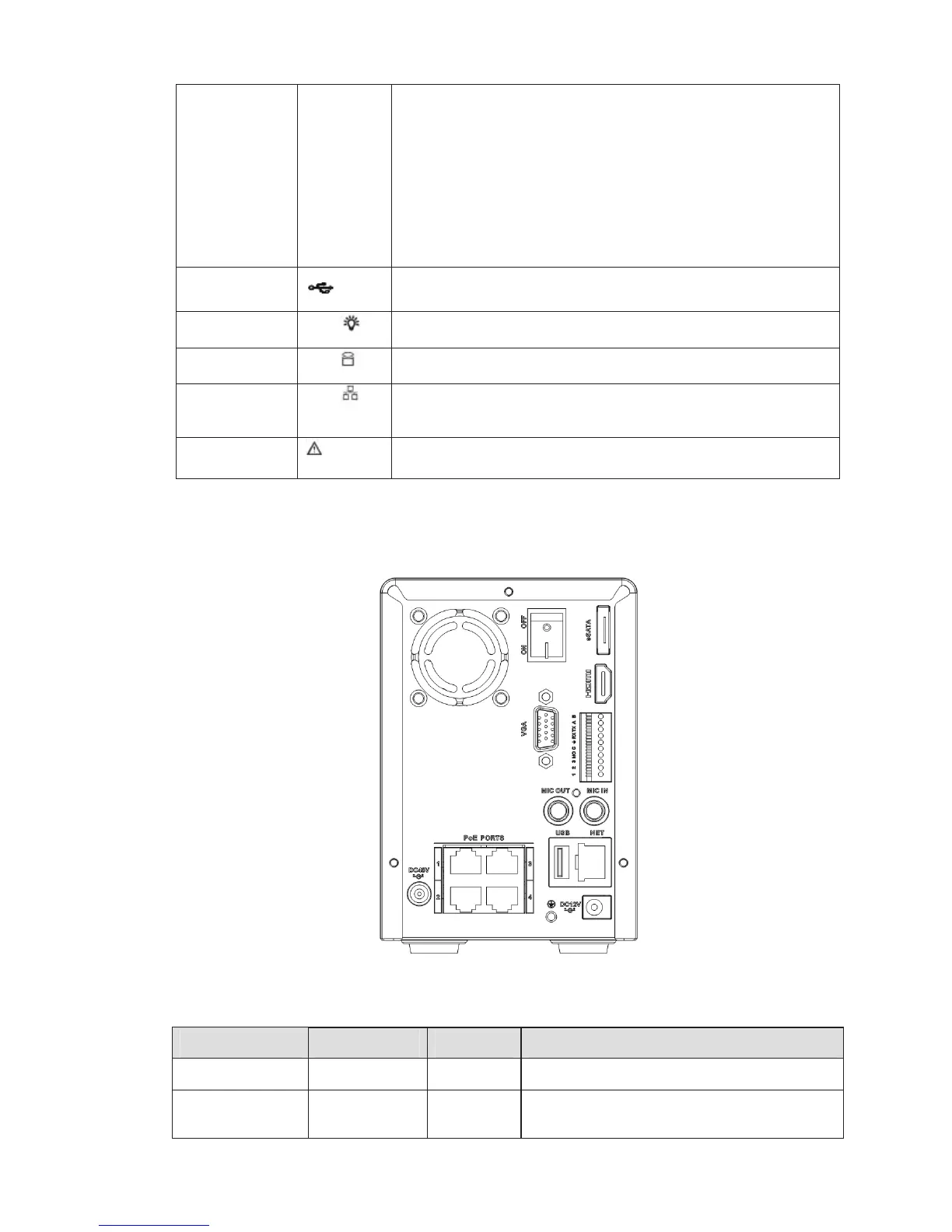

The rear panel is shown as below. See Figure 1-2.
Figure 1-2
Please refer to the following sheet for detailed information.
Port Name Connection Function
USB2.0 USB2.0 port. Connect to USB2.0 mouse.
NET Network port 10M/100M/1000Mbps self-adaptive Ethernet
port. Connect to the network cable.
