Pressure Vessel Assembly Model FLE Assembly
2-2 750-192

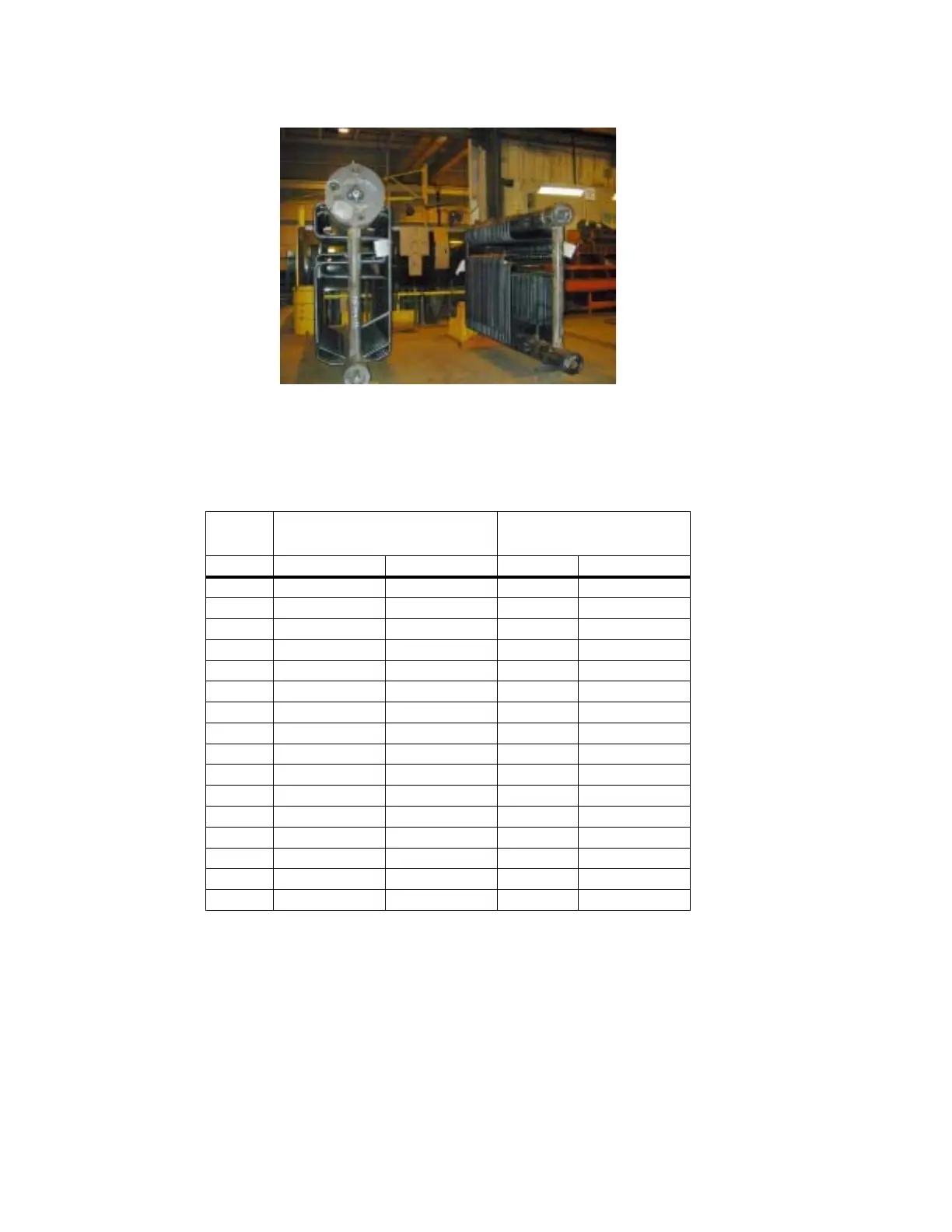

Figure 2-1. Completed Pressure Vessels; Steam (left) and Hot Water (right)
Table 2- 1: Center-to-Center and Drum Length Dimensions
Model Dimension (in)
Centerline to Centerline
Drum Length End to
End
Steam Hot Water Steam Hot Water
150 60 56-1/2 98 98-3/8
200 60 56-1/2 98 98-3/8
250 60 56-1/2 98 98-3/8
300 64 60-1/2 104 104-3/8
350 64 60-1/2 104 104-3/8
400 67 63-1/2 126 126-3/8
450 67 63-1/2 126 126-3/8
500 67 63-1/2 126 126-3/8
550 67 63-1/2 126 126-3/8
600 67 63-1/2 126 126-3/8
700 77 69-1/2 150 147
800 77 69-1/2 150 147
900 77 69-1/2 150 147
1000 77 69-1/2 182 172-1/2
1100 77 69-1/2 182 172-1/2
1200 77 69-1/2 182 172-1/2
