CleaverBrooks FLE - Transportation and Handling

General Description Model FLE Assembly
1-2 750-192
2. Transportation and Handling
Table 1-1 shows the approximate weights and sizes
of the various components. The total weight of each
shipping crate handling should be done with an
appropriately sized forklift or other suitable heavy
lifting devices.

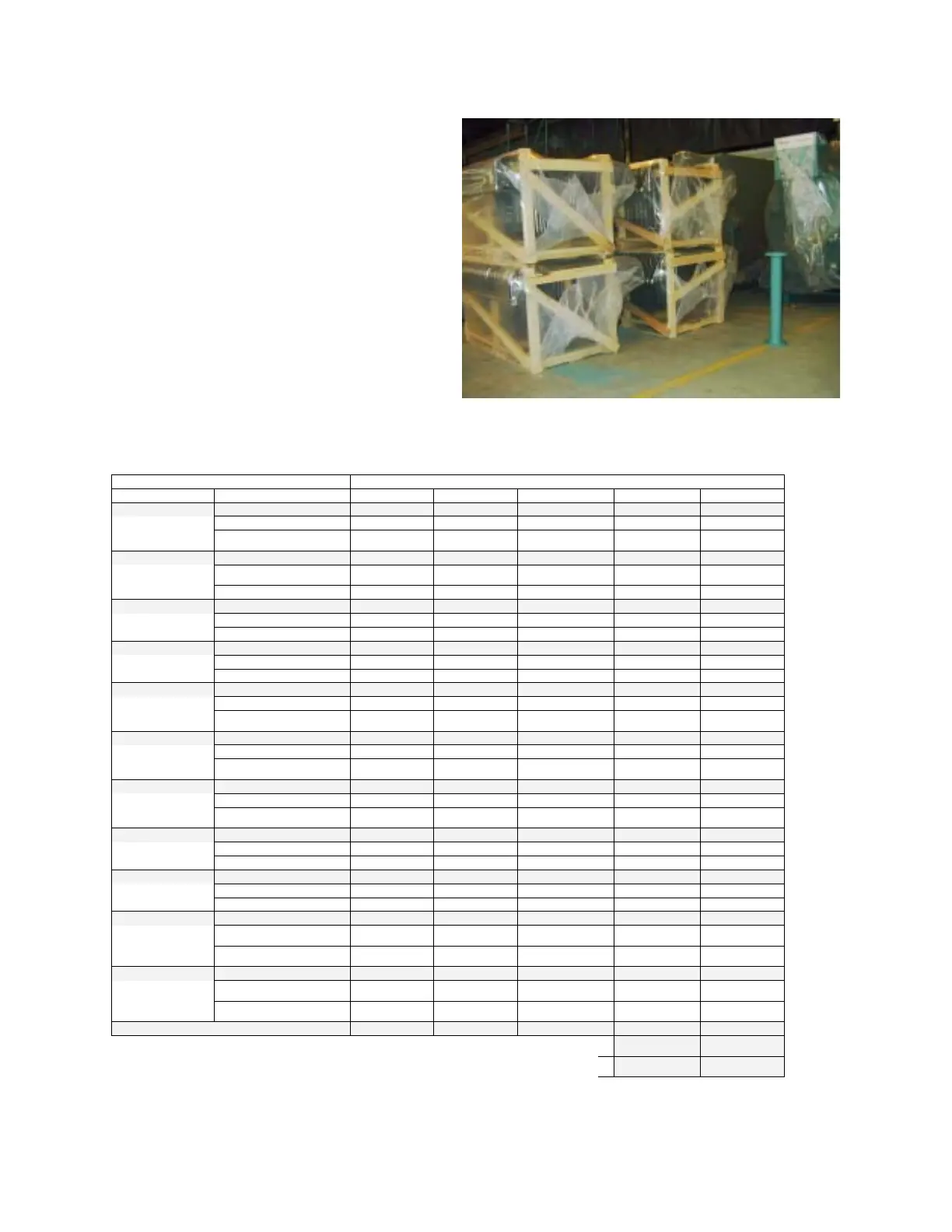

Figure 1-2. Model FLE Boiler Tubes Being Readied
to Ship
Table 1-1: Boiler Components, Approximate Weights and Sizes
PARTS HOT WATER
DESCRIPTION INFO 150-250 300-350 400-600 700-900 1000-1200
Base Assembly PART NO 315-1124 315-1169 315-1180 315-1194 315-1203
(Insulated) APPROX. SIZE (in) 68x42 74x45-1/2 94-1/5x47-1/2 116x53-1/2 140x53-1/2
WEIGHT (lbs) 630 710 950 1440 1690
Front Wall PART NO 315-1128 315-1265 315-1177 315-1191 315-1201
APPROX. SIZE (in) 68x33-1/2 77x40 77x40 84x45 84x45
(Insulated) WEIGHT (lbs) 110 130 140 175 175
Rear Wall PART NO 315-1129 315-1165 315-1176 315-1190 315-1190
Large Piece APPROX. SIZE (in) 67x33-1/2 77x40 77x40 84x45 84x45
(Insulated) WEIGHT (lbs) 110 125 140 175 175
Rear Wall PART NO 315-1140 315-1279 315-1281 315-1282 315-1282
Corner Piece APPROX. SIZE (in) 23x16-1/2 20x19 26x20 27x23 27x23
(Insulated) WEIGHT (lbs) 30 35 40 45 45
Roof Assembly PART NO 315-1127 315-1167 315-1178 315-1192 315-1202
(Insulated) APPROX. SIZE (in) 75x42 74x38 95x39 118x45 140x45
WEIGHT (lbs) 185 215 280 370 430
Upper Drum PART NO 270-2703 270-2704 270-2705 270-2706 270-2707
Assembly APPROX. SIZE (in) 14x54-1/4 16x60-1/4 17x81-1/4 20x102-1/2 20x126-1/2
WEIGHT (lbs) 320 340 540 620 690
Lower Drum PART NO 270-2708 270-2709 270-2710 270-2711 270-2712
Assembly APPROX. SIZE (in) 14x55 16x60-1/4 17x81-1/4 20x102-1/2 20x126-1/2
WEIGHT (lbs) 300 230 510 590 660
Inner Casing PART NO * * * * *
Panels APPROX. SIZE (in) 67x32 74x36 79x28 86x30 86x28
(Insulated) WEIGHT (lbs) 50 53 57 61 61
Outer Casing PART NO 315-1130 315-1164 315-1175 315-1189 315-1198
Panels APPROX. SIZE (in) 71x22 75x24 80x23 87x27 87x25
(Insulated) WEIGHT (lbs) 38 43 40 39 38
Burner Door PART NO ** ** ** ** **
APPROX. SIZE (in) 20x20 20x20 26x26 26x26 26x26
WEIGHT (lbs) 120 120 240 240 240
Tubes PART NO ** ** ** ** **
APPROX. SIZE (in) 14x28-1/2 16x31-1/2 17x43.5 20x51.75 20x63.75
WEIGHT (lbs)
1300 2000 2300 3300
4000
TOTAL WEIGHT 3900 5000 7600 8500 10000
* Various part numbers are used for each size
** Part number depends on burner size required.
