Model FLE Assembly Casing Assembly
750-192 3-9

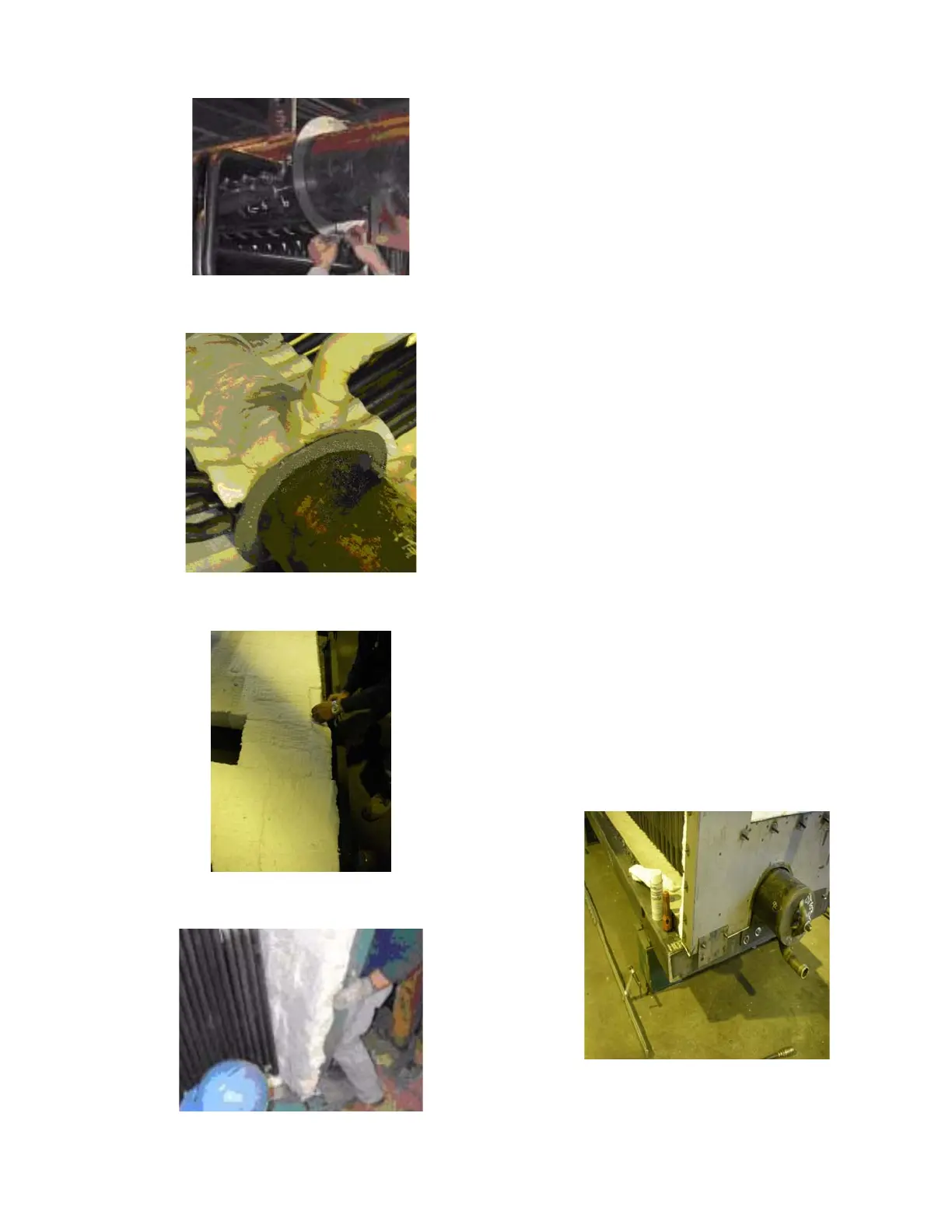

Figure 3-8. Installing Backing Plate on Upper Drum
Figure 3-9. Backing Plate on Lower Drum
Figure 3-10. Packing the Insulation
Figure 3-11. Placing Wall Section
Lower Backing Plate
• Install the retaining ring segments on the base
around the lower drum. (Figure 3-9).
3. Install Rear Wall Sections
• Check that there is gasket positioned on the bottom
of the wall. Apply a continuous bead of silicone
where the end walls will contact the base.
• After checking that the insulation is packed (Figure
3-10), lift the large piece of the rear wall into posi-
tion (Figure 3-11). Until the wall is in the correct ver-
tical position, leave a gap between the tubes and the
wall to keep the insulation from getting squished. Set
the wall section on top of the base.
• Wedge the wall upright.
• Apply “Never-Seez” to the studs and attach the end-
plates to the wall (Figure 3-12).
NOTE:
ALWAYS clean mating surfaces
prior to applying silicone caulk. If any
dust, dirt or oil is present, the silicone
will not adhere and will not seal.
Figure 3-12. End Plate
