Model FLE Assembly Casing Assembly
750-192 3-15
• In the roof, cut the hole for the front lift lug. This hole
should be cut on about a 45º angle.
• Position the roof to attach the front first. Attach two
washers and one nut to every bolt, level the front,
ensure the walls are flush with the edges of the roof
and tighten the bolts. Repeat this step at the back
(Figure 3-29, 30).

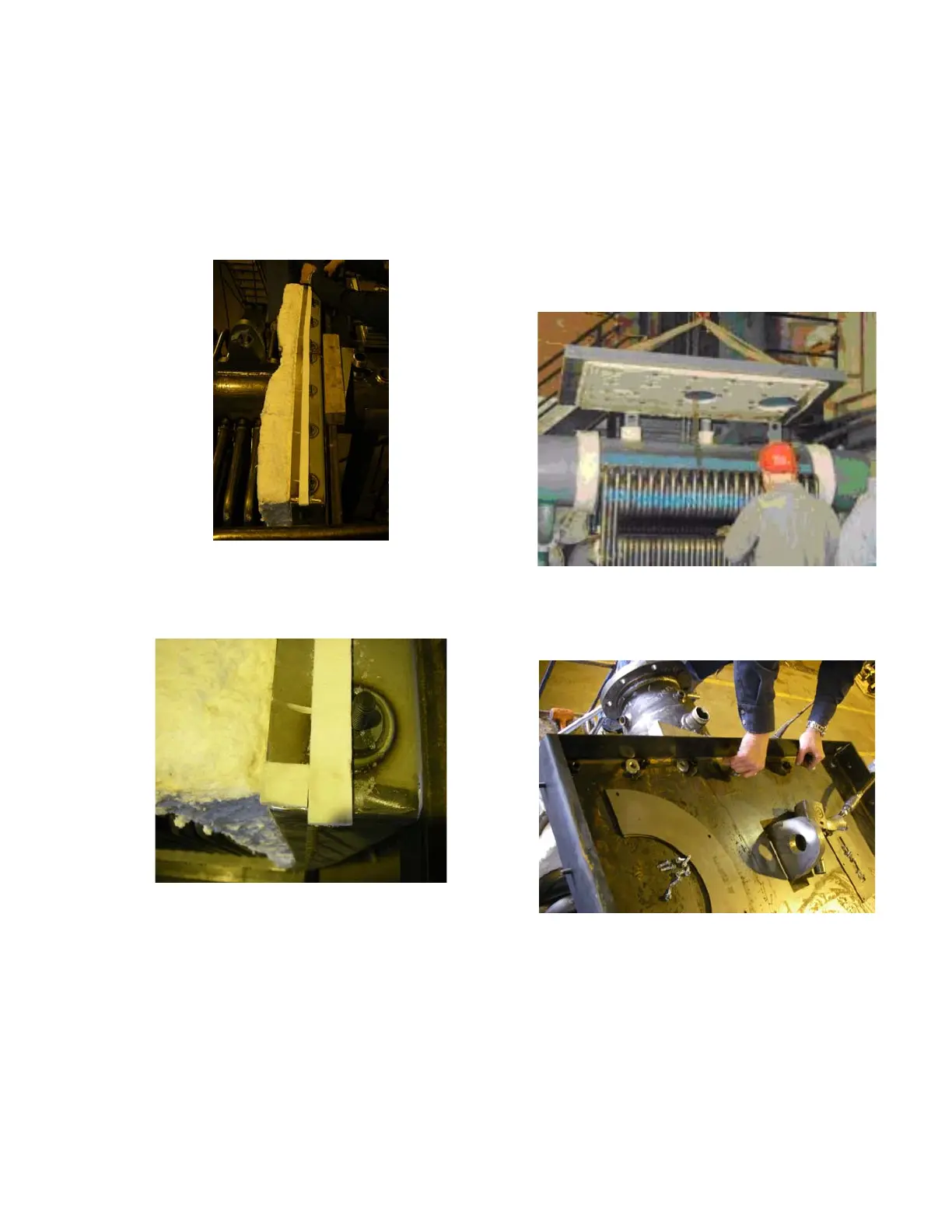

Figure 3-27. Insulation Strip on the Top of the Front
and Rear Walls
Figure 3-28. Insulation on Inside Corners of Front
and Rear Walls
Figure 3-29. Attaching roof panel (Note: the side
walls should have been secured to the boiler. This
photo does not show the wall.)
Figure 3-30. Attaching the Roof to the Front Wall
