Model FLE Assembly Casing Assembly
750-192 3-21

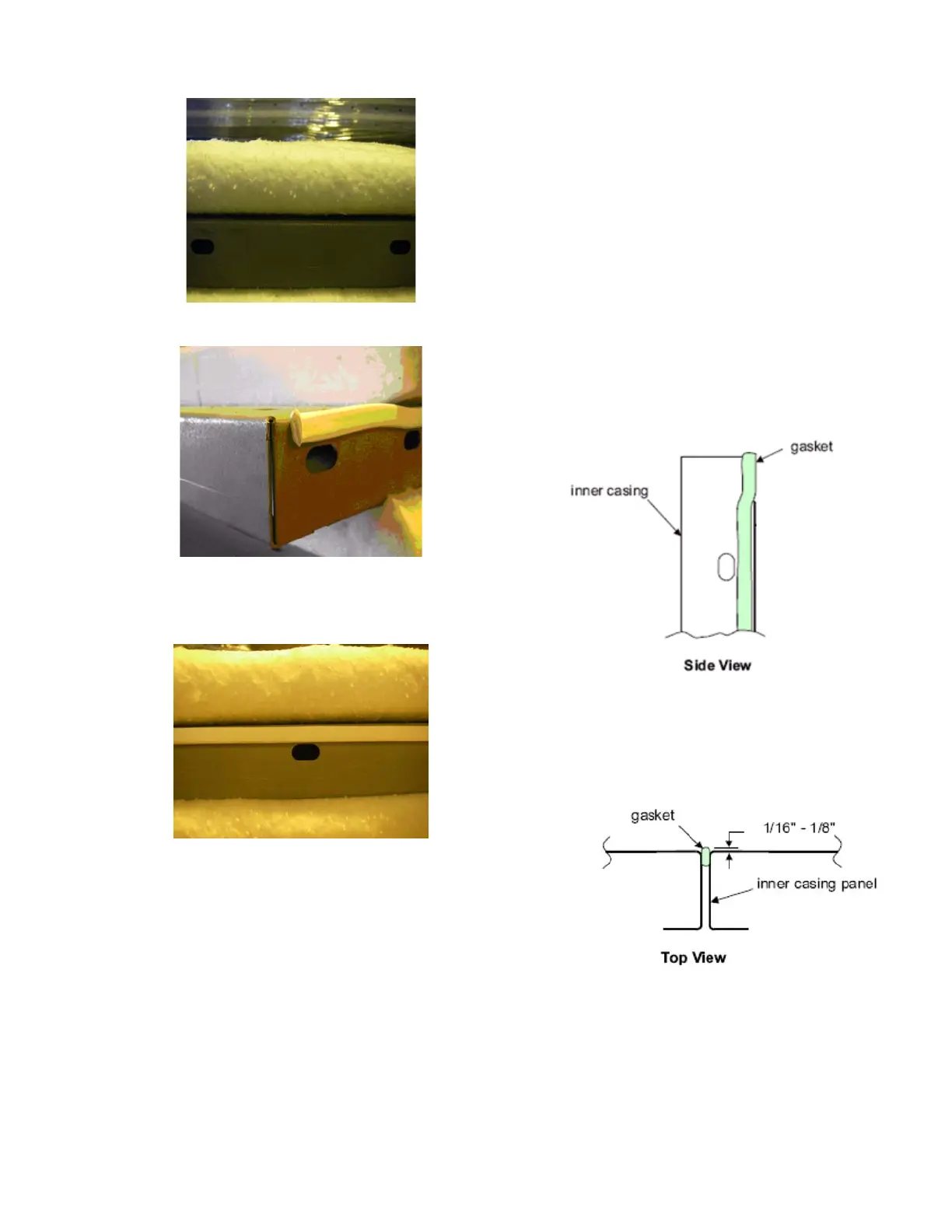

Figure 3-51. Insulation on the side Panel after
packing
Figure 3-52. Top Gasket Placement on the Side
Panel
Figure 3-53. Gasket Placement on the Side of the
Side Panel
15. Prepare the Inner Casing Panels
for Installation
• Pack the insulation on the panels. It should be
pushed from the top and bottom of the panel while
tapping the insulation into the panel. After this is fin-
ished, check that there are no holes between the
insulation and the panel (Figure 3-51).
• Place a gasket on the side of the panel. It should go
the full height of the panel from the top to the bot-
tom. Ensure that the gasket protrudes out the inside
wall slightly (approximately 1/16") at the top and the
bottom of the panel. It should be just above the holes
in the middle of the panel (Figures 3-52-55).
Figure 3-54. Gasket on the inner panels
Figure 3-55. Gasket on the inner panels
