RADIUS SL PLUS 03.2019 en 21
6.2.9 Add-on tool: Rotary Cultivator
The Rotary Cultivator is used either in combination with the 500 mm blade share (Figure 22) or solo (Figure 23)
to loosen the soil and disturb the greenery around the trunk and along the vine row. Optionally, the 620 mm blade
share can be used for the Rotary Cultivator in conjunction with a mounting extension. (Figure 24).

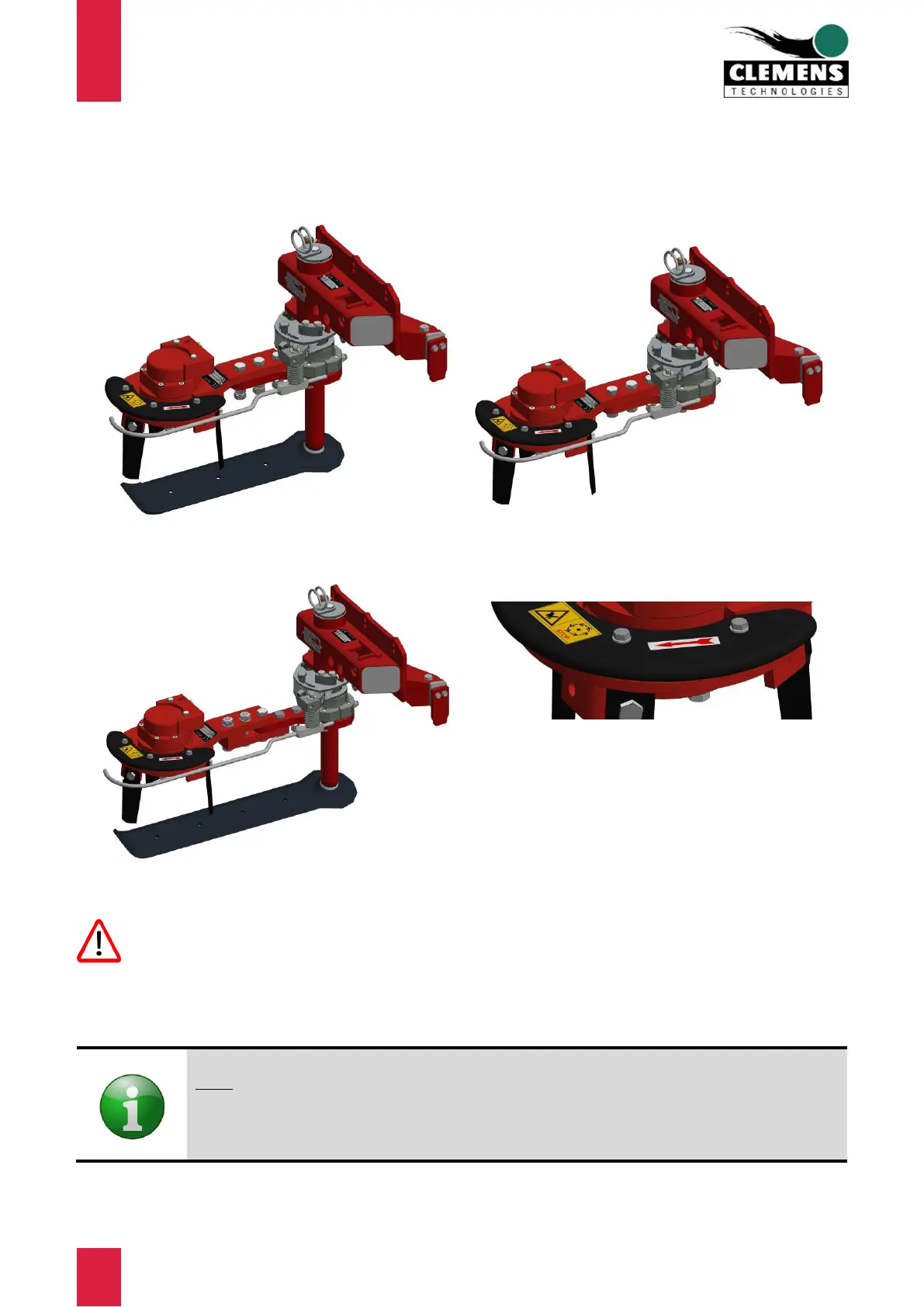

Figure 22 Rotary Cultivator with 500 mm blade
share
Figure 23 Rotary Cultivator solo
Figure 24 Rotary Cultivator with 620 mm blade
share and mounting extension
Figure 25 Direction of rotation Rotary Cultivator
Standard direction of rotation right-hand
attachment: clockwise! (Figure 25)
Standard direction of rotation left-hand
attachment: counter-clockwise!
Under no circumstances may the rotating cultivator be gripped.
Damaged tines must be replaced immediately.
For the operation of the tine rotor you need an additional single-acting hydraulic connection (max. 35 liters/minute
(9 gal / min)) and a pressure-free return connection (suitable sensor rod, hydraulic installation see chapter 10
Spare parts list and optional parts).
Note:
For the transport of large quantities of soil, the direction of rotation of the rotor can be changed
using the conversion kit Rotary Cultivator Reverse CA895.405000.
