10.27 Quantity B disconnectable + merged return
A = Pressure hose B = Return oil hose C = Bridge hose

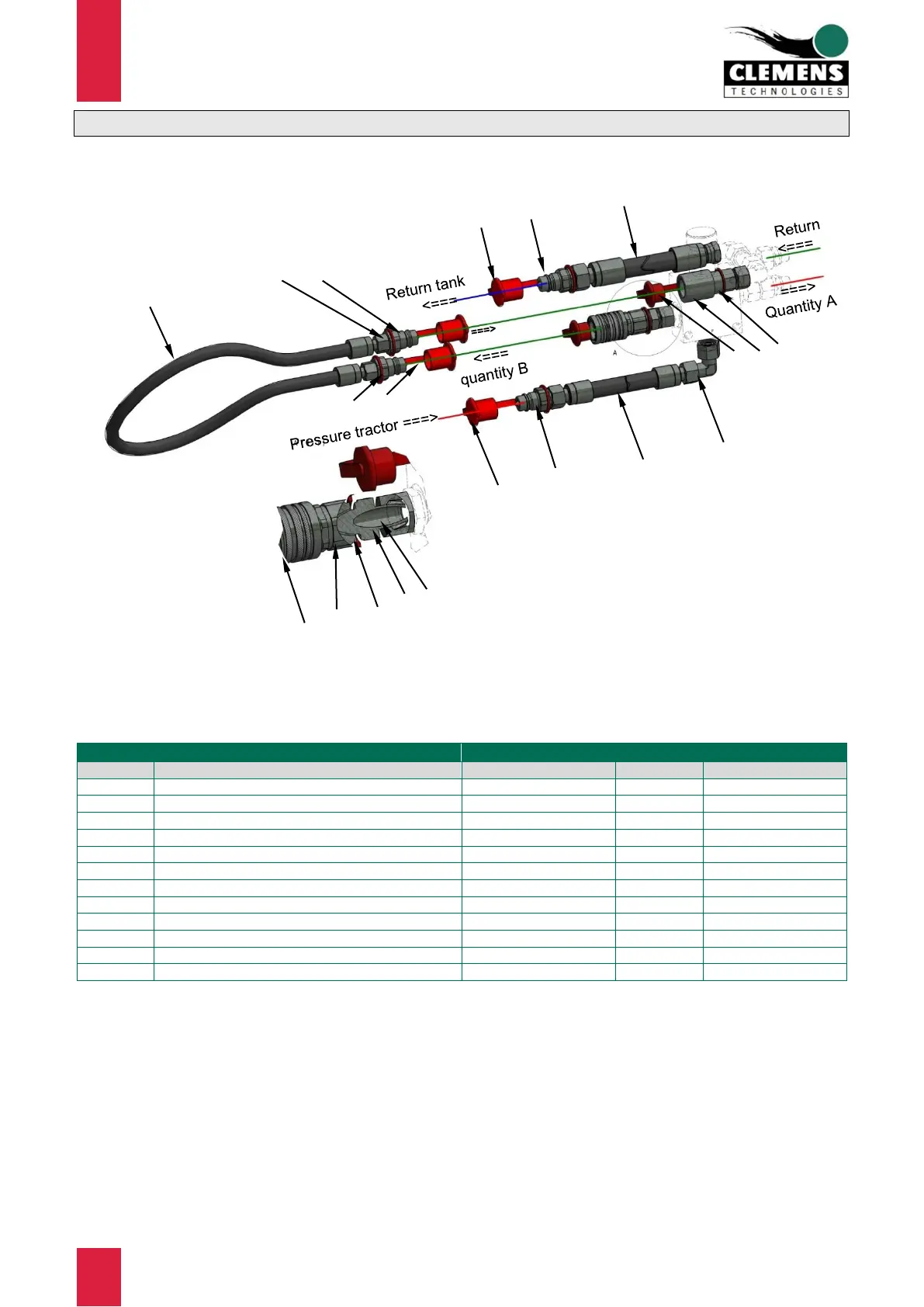

Figure 65 Spare parts Quantity B disconnectable + merged return
Item no.
Specification
Remark
Quantity
Order no.
Quantity B disconnectable + merged return
complete
CA895.402000
1
Straight screw socket M22x1,5
1
CW011.220500
2
Coupling plug
2
CW720.000200
3
Coupling plug
1
CW720.000300
4
Coupling plug
1
CW720.000400
5
Quick coupling sleeve
1
CW720.003700
6
Coupling sleeve
1
CW720.004200
7
Dust cover for coupling plug
4
CW720.006000
8
Dust cover for coupling sleeve Ø30
2
CW720.007900
9
Angular fitting
1
CW730.004900
10
Union nut
1
CW730.012000
11
Ferrule
1
CW730.012100
12
Double nut
1
CW730.034000
7
A
B
C
2
2
7
7
3
9
7
4
12
5
8
6
8
1
10
11
