10.2 Shaft unit
up to serial number: CL861.00640 (right) / CL861.10514 (left)

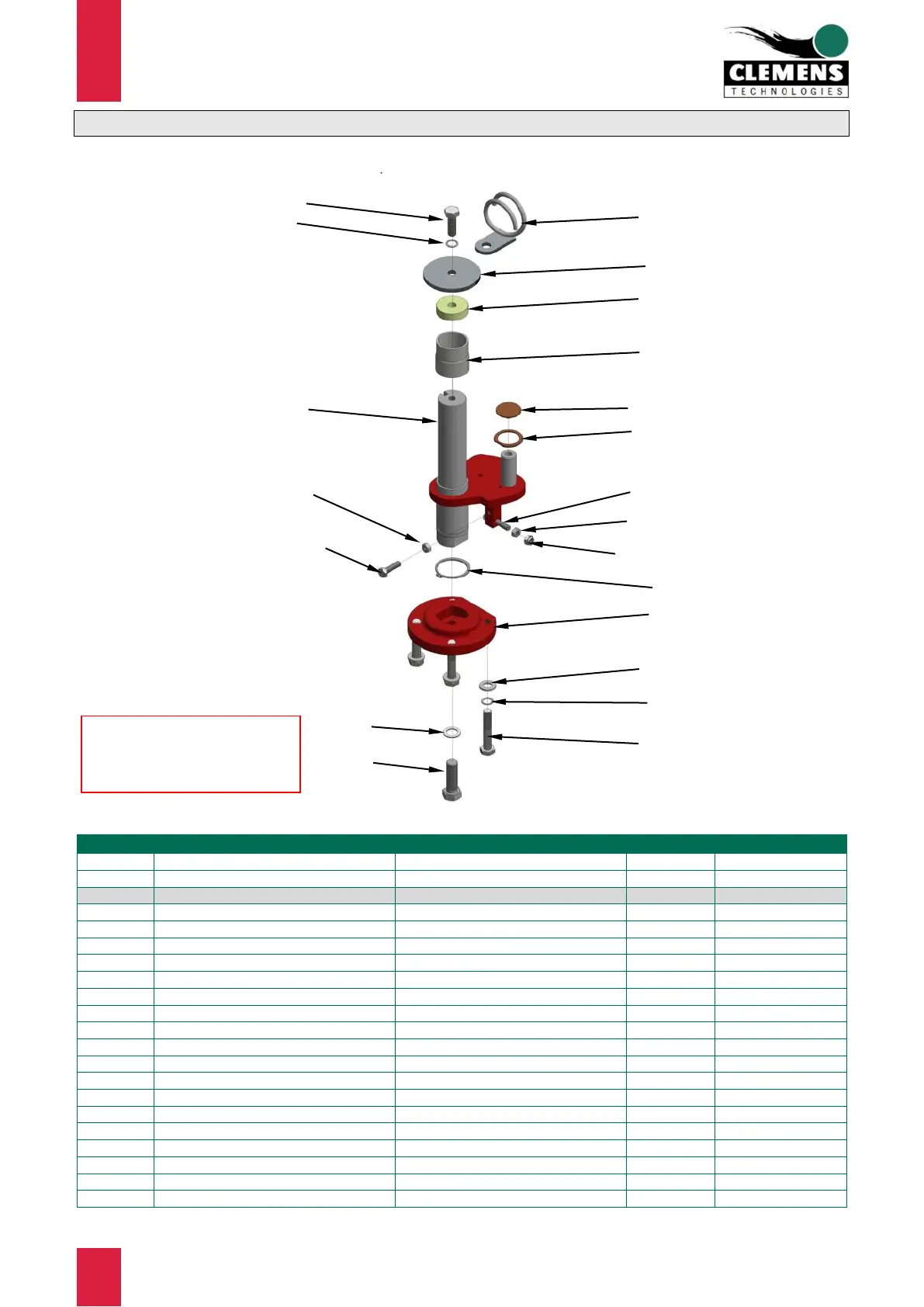

Figure 39 Spare parts Shaft unit
Item no.
Specification
Remark
Quantity
Order no.
1
Supporting shaft rhs
up to serial number: CL861.00640
1
CL861.020100
1
Supporting shaft lhs
up to serial number: CL861.10514
1
CL861.120100
2
Flange plate complete
incl. items no. 2.1 – 2.5
1
CL861.021000
2.1
Washer
4
012513
2.2
Lock washer
4
CW520.002900
2.3
Hexagon head screw
4
093112065
2.4
Lock washer
1
CW520.003100
2.5
Hexagon head screw
1
096116050
3
Cover disk, galv.
1
CL856.020001
4
Spacer
1
CL860.020003
5
Spacer disk
1
CL860.050004
6
Sliding disk
1
CW007.004900
7
Disk
1
CW007.005200
8
Lock washer
1
CW520.002900
11
Circlip ring
1
047145
13
Hexagon head screw
1
093308030
14
Hexagon head screw
1
093308040
15
Hexagon head screw
1
093312035
16
Hexagon nut
2
093408
18
Hexagon nut
1
098508
19
Hose guide
1
CL845.901000
2.4
13
18
2.5
16
1,1
3
5
4
6
7
14
16
2.1
2
2.2
2.3
11
19
8
15
Tightening torque of the
hexagon head screw
item 2.5: 220 Nm
