10.8 Blade shares with sensor rods and accessories

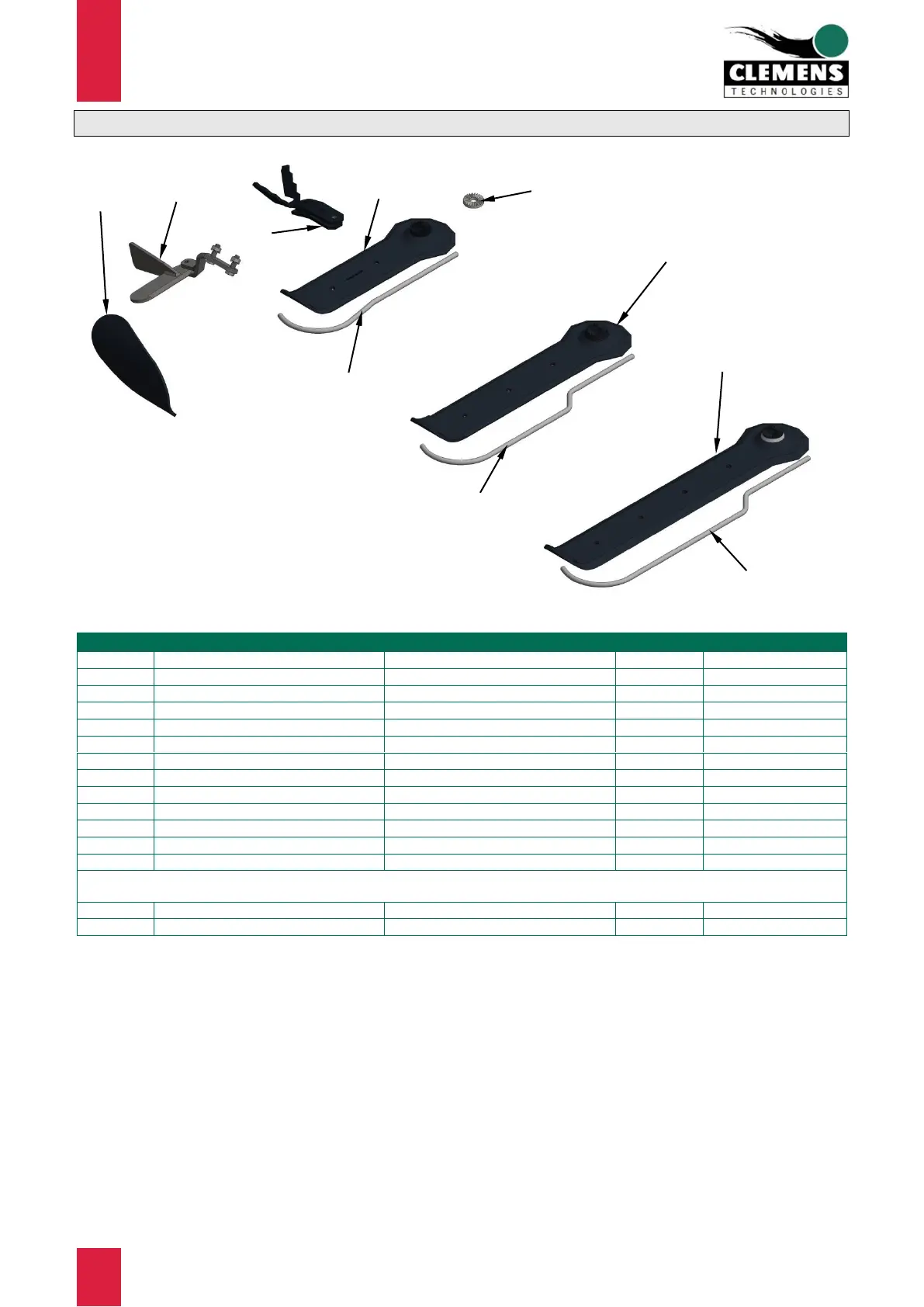

Figure 45 Blade shares with sensor rods and accessories
Item no.
Specification
Remark
Quantity
Order no.
1
Blade share 370 mm (14“)
1
CA919.030000
2
Blade share 500 mm (20“)
1
CA919.041000
2
Blade share 500 mm (20“)
wear-resistant coating
1
CB919.041000
3
Blade share 620 mm (24“)
1
CA919.061000
4
Sensor rod for blade share 370
1
CL861.000011
5
Sensor rod for blade share 500
1
CL861.000021
6
Sensor rod for blade share 620
1
CL861.000031
7
Sensing share rhs complete
1
CB917.016200
7
Sensing share lhs complete
1
CB917.116200
8
Swiveling clod breaker
number depends on share length
2/3/4
CL919.330000
9
Clearing share rhs complete
1
CW653.001400
9
Clearing share lhs complete
1
CW653.001500
10
Serrated disk
loose for welding on
1
CW902.000900
For fastening the blade share to the shaft:
11
Screw locking disc
not shown
1
CW520.007800
12
Hexagon head screw
not shown
1
096116050
8
6
4
1
7,7
2
3
10
9,9
5
