Clemens Technologies RADIUS SL PLUS User Manual

RADIUS SL PLUS 03.2019 en 41
10.9 Working shafts and supports for add-on tools

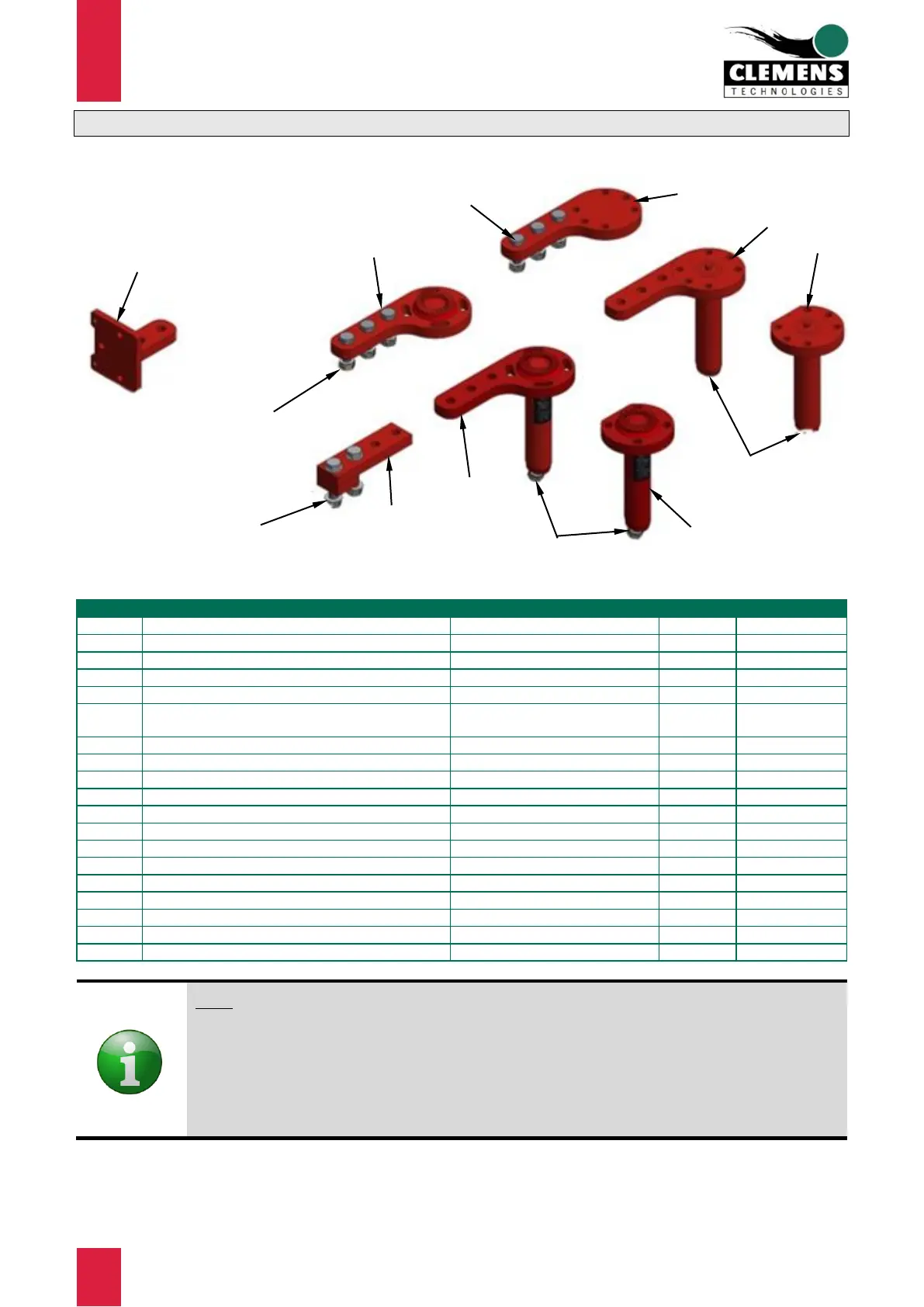

Figure 46 Working shafts and supports for add-on tools
Item no.
Specification
Remark
Quantity
Order no.
1
Mowerflange complete
1
CL861.004000
2
Working shaft for blade share 370 mm (14”)
from 2019
1
CA861.001000
3
Working shaft for blade share 500 mm rhs (20”)
from 2019
1
CA861.002000
3
Working shaft for blade share 500 mm lhs
from 2019
1
CA861.102000
4
Basic unit complete Rotary cultivator rhs/lhs
from 2019
1
CA861.003000
5
Prolongation of items no. 3, 4, 7 and 8
when using 620 mm (24”) blade
share and Rotary Cultivator
1
CL861.003100
6
Working shaft for blade share 370 mm (14”)
with serrated disk
1
CL861.001000
7
Working shaft for blade share 500 mm rhs (20”)
with serrated disk
1
CL861.002000
7
Working shaft for blade share 500 mm lhs
with serrated disk
1
CL861.102000
8
Basic unit complete Rotary cultivator rhs
with serrated disk
1
CL861.003000
8
Basic unit complete Rotary cultivator lhs
with serrated disk
1
CL861.103000
9
Schraubensicherungsscheibe
included in items 2, 3, 6 and 7
1
CW520.007800
10
Sechskantschraube
included in items 2, 3, 6 and 7
1
096116050
11
Schnorrscheibe
included in items 4 und 8
3
CW520.003100
12
Sechskantschraube
included in items 4 und 8
3
093316055
13
Sechskantmutter
included in items 4 und 8
3
093416
14
Unterlegscheibe
included in item 5
4
012517
15
Sechskantschraube
included in item 5
2
093116080
16
Sechskantmutter
included in item 5
2
093416
Note:
The working shafts and basic units differ with regard to their attachment to the main shaft.
Until year of construction 2018 (up to serial numbers CL861.00640 right / CL861.10514 left)
the connection was made via serrated discs, in this case items no. 6, 7 and 8 are to be used.
From year of construction 2019 (from serial numbers CL861.00641 right / CL861.10515 left)
the serrated discs are no longer used, in this case the items 2, 3 and 4 are to be used.
1
5
3,3
4
6
7,7
8,8
2
9 + 10
9 + 10
11 + 12 + 13
11 + 12 + 13
14 + 15 + 16
