Clemens Technologies RADIUS SL PLUS User Manual

RADIUS SL PLUS 03.2019 en 55
Item no.
Specification
Remark
Quantity
Order no.
Under-vine rotor mower rhs
complete
CC849.000000
Under-vine rotor mower lhs
complete
CC849.100000
3
Bearing flange
1
CC849.040000
5
Wear plate
1
CC849.022000
6
Slide bushing
2
CC849.000001
7
Hose protector
1
CC849.000002
8
Knife screw
2
CC849.000003
9
Knife for undervine mower
2
CC849.000004
11
Sticker „CLEMENS“
1
CW002.000900
12
Sticker "Attention! Rotating and running-out tools..."
1
CW002.001400
13
Sticker "Direction sign"
1
CW002.001500
14
Sticker "Danger from hurled material"
1
CW002.003600
15
Sticker "Max. oil quantity 30l/min"
1
CW002.004600
16
Shaft nut
1
CW500.015100
17
Lock washer
4
CW520.002700
18
Deep-groove ball-bearing
2
CW540.028800
19
Conical lubricating nipple
1
CW570.000400
20
Hydraulic motor
1
CW750.004100
for 20
Seal kit for hydraulic motor OT200
1
CW780.030700
21
Washer
2
012513
22
Cylinder head screw
4
091208025
23
Cylinder head screw
6
091210025
24
Hexagon head screw
6
098510
25
Hexagon nut
2
098512
26
Hexagon nut
2
098518
27
Clamping sleeve
1
148108036
28
Blind rivet
2
733703006ALU
29
Pump connection
not shown
2
CW750.015700
10.18 Stone protection Mower

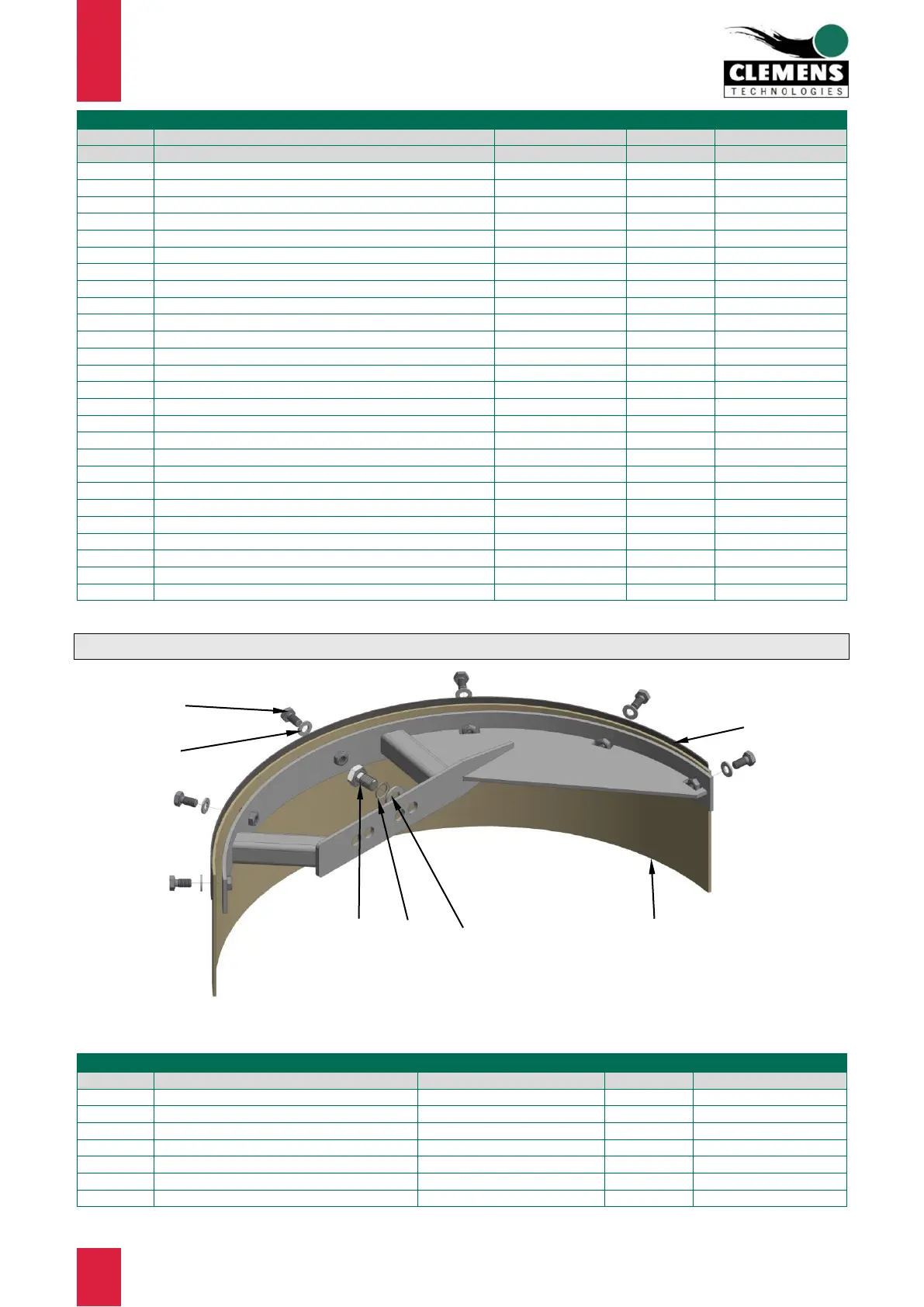

Figure 56 Spare parts Stone protection Mower
All parts can be used on the right and left side.
Item no.
Specification
Remark
Quantity
Order no.
Stone protection Mower complete
rhs and lhs
CD849.050000
2
Tarpaulin
1
CC849.050001
3
Protective ring
1
CD849.050002
4
Lock washer
1
CW520.002900
5
Washer
6
012508
6
Washer
1
012513
7
Hexagon head screw
6
093308016
8
Hexagon head screw
1
093312020
2
3
4
5
6
7
8
