10.34 Constant flow regulator 0-25 l (6.6 gal.) and 0-50 l (13.2 gal.) with Mounting kit

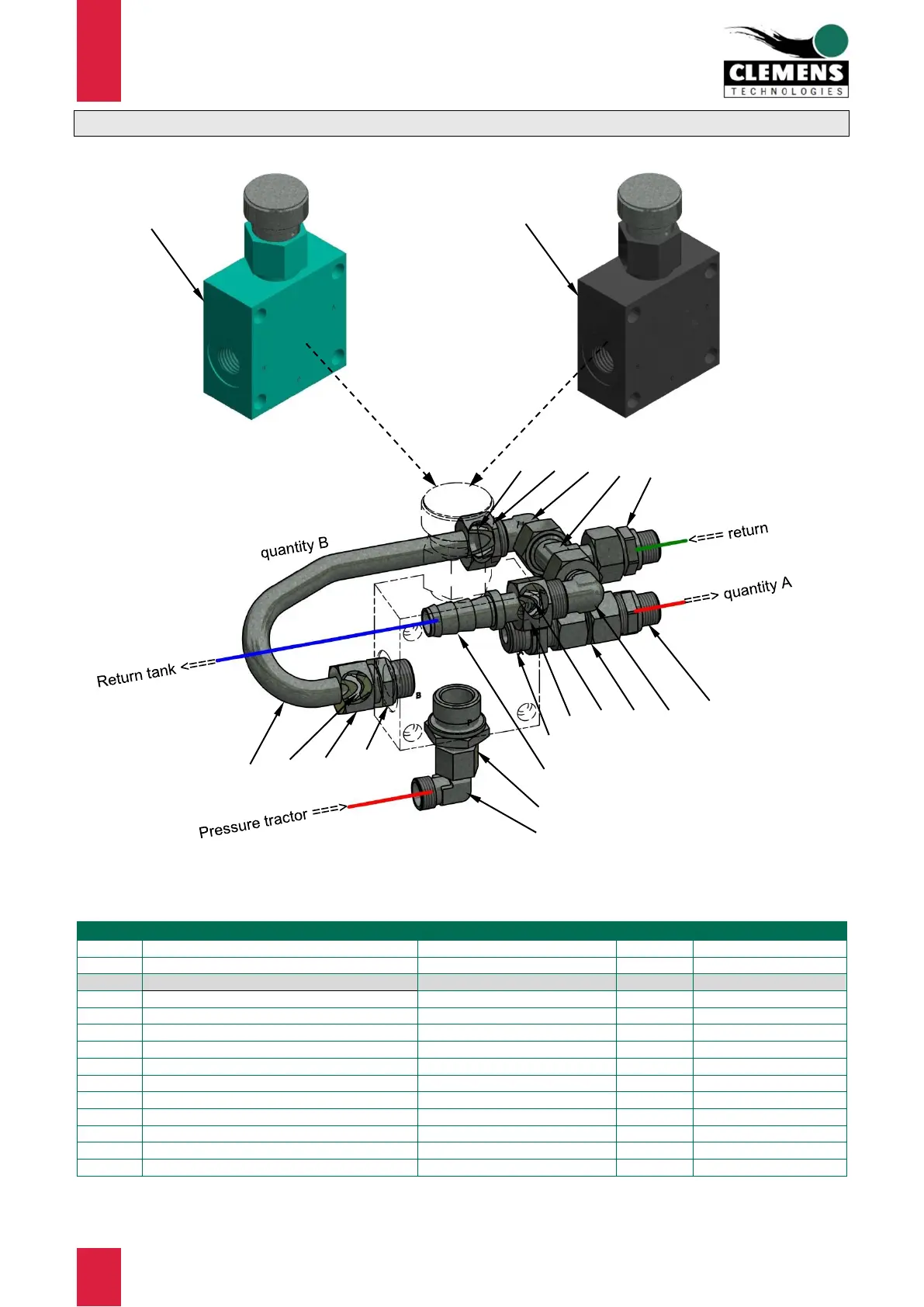

Figure 72 Spare parts Constant flow regulator 0-25 l (6.6 gal.) and 0-50 l (13.2 gal.) with Mounting kit
Item no.
Specification
Remark
Quantity
Order no.
1
Constant flow regulator
for 0-25 l (6.6 (gal.)
1
CD845.463201
1
Constant flow regulator
for 0-50l (13.2 gal.)
1
CD845.463202
Mounting kit complete
consisting of items no. 2-12
1
CD845.463200
2
Pipe bend
1
CW070.000800
3
Hose stem
1
CW011.600600
4
Angular fitting
with nut and ferrule
2
CW730.004900
5
Angular fitting
1
CW730.010400
6
Union nut
3
CW730.012000
7
Ferrule
3
CW730.012100
8
Straight fitting
2
CW730.014800
9
Double nut
1
CW730.034000
10
Adjustable T-fitting
with nut and ferrule
1
CW730.077100
11
Straight screw socket
2
CW730.079200
12
Straight fitting
1
CW730.100200
8
1
11
11
0-25 l (6.6 gal.)
0-50 l (13.2 gal.)
10
4
4
9
7
6
8
12
5
6
7
2
1
6
7
3
