Clemens Technologies RADIUS SL PLUS User Manual

RADIUS SL PLUS 03.2019 en 50
10.15 Hydraulic hoses Rotary Cultivator 2-sided
(illustration shows CA917.150000 Rotary Cultivator lhs and CA917.050000 Rotary Cultivator rhs)
A = Pressure hose B = Bridge hose C = Return hose D = Leak oil hose

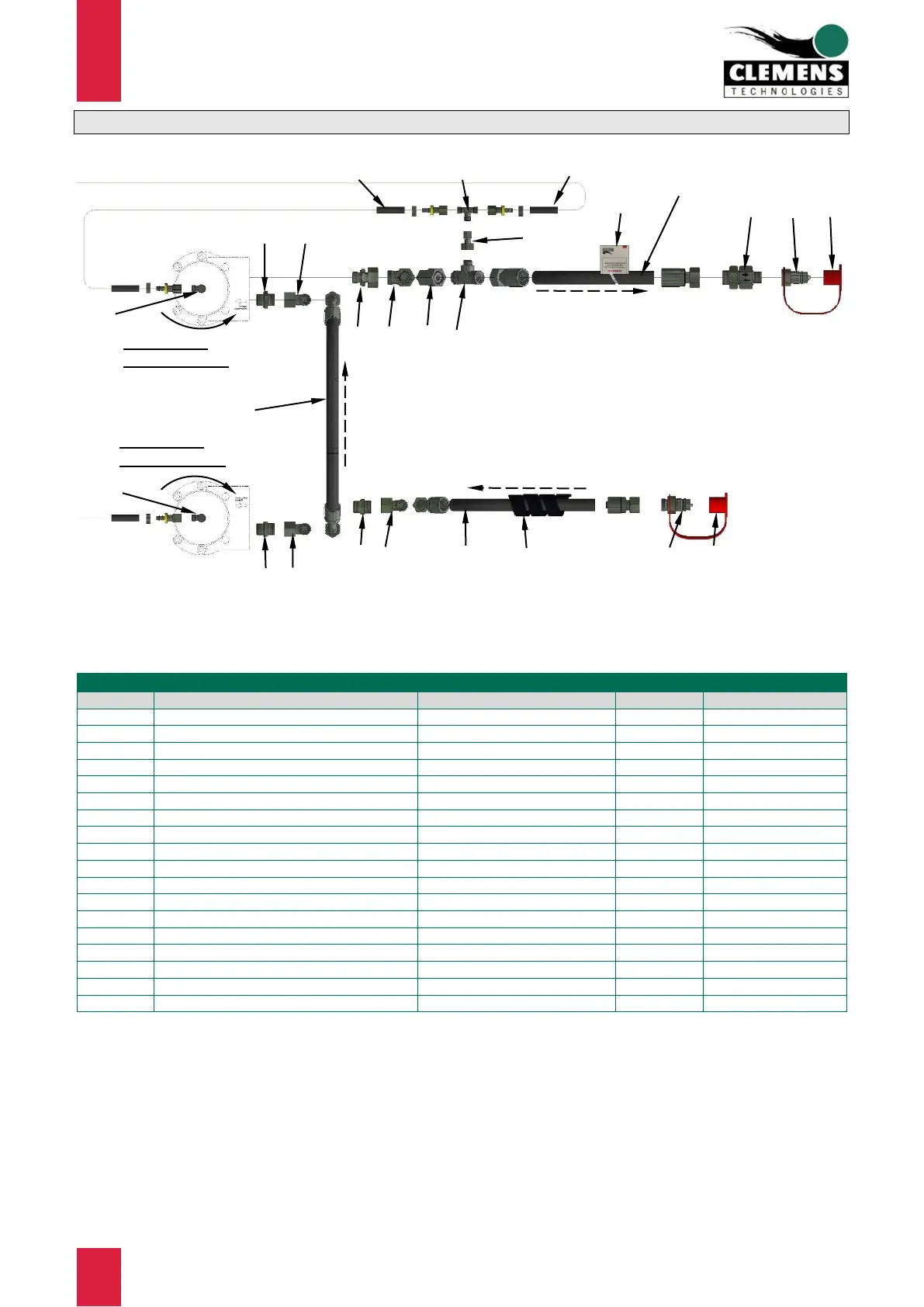

Figure 53 Spare parts Hydraulic hoses Rotary Cultivator 2-sided
Item no.
Specification
Remark
Quantity
Order no.
Hydraulic hosed 2-sided
complete (without motor)
CA917.056000
1
Sticker "Return oil hose"
1
CW002.003400
2
Hose protector textile
Length in mm
CW700.030000
3
Coupling plug
1
CW720.000300
4
Dust cap
1
CW720.005200
5
Dust cover for coupling plug SVK
1
CW720.006000
6
Quick coupling sleeve BG3
1
CW720.010900
7
T-fitting
1
CW730.004700
8
Angular fitting
3
CW730.004900
9
Check valve
1
CW730.011700
10
Straight fitting
3
CW730.014800
11
Angular fitting
1
CW730.020900
12
Straight fitting
1
CW730.035300
13
Double nut
1
CW730.042600
14
Reducing coupling
1
CW730.054800
15
Elbow fitting 45°
1
CW730.074200
16
Swiveling screw connection
2
CW730.098000
17
Cable tie 4,8 x 178 mm
not shown
5
CW830.061700
18
Cable tie 7,8 x 360 mm
not shown
2
CW830.063300
direction of
motor rotation
direction of
motor rotation
Rotary Cultivator lhs
Rotary Cultivator rhs
flow direction
flow direction
flow direction
1
5
3
16
2
A
C
D
D
16
4
6
7
8
8
8
9
10
10
10
B
12
11
13
14
15
