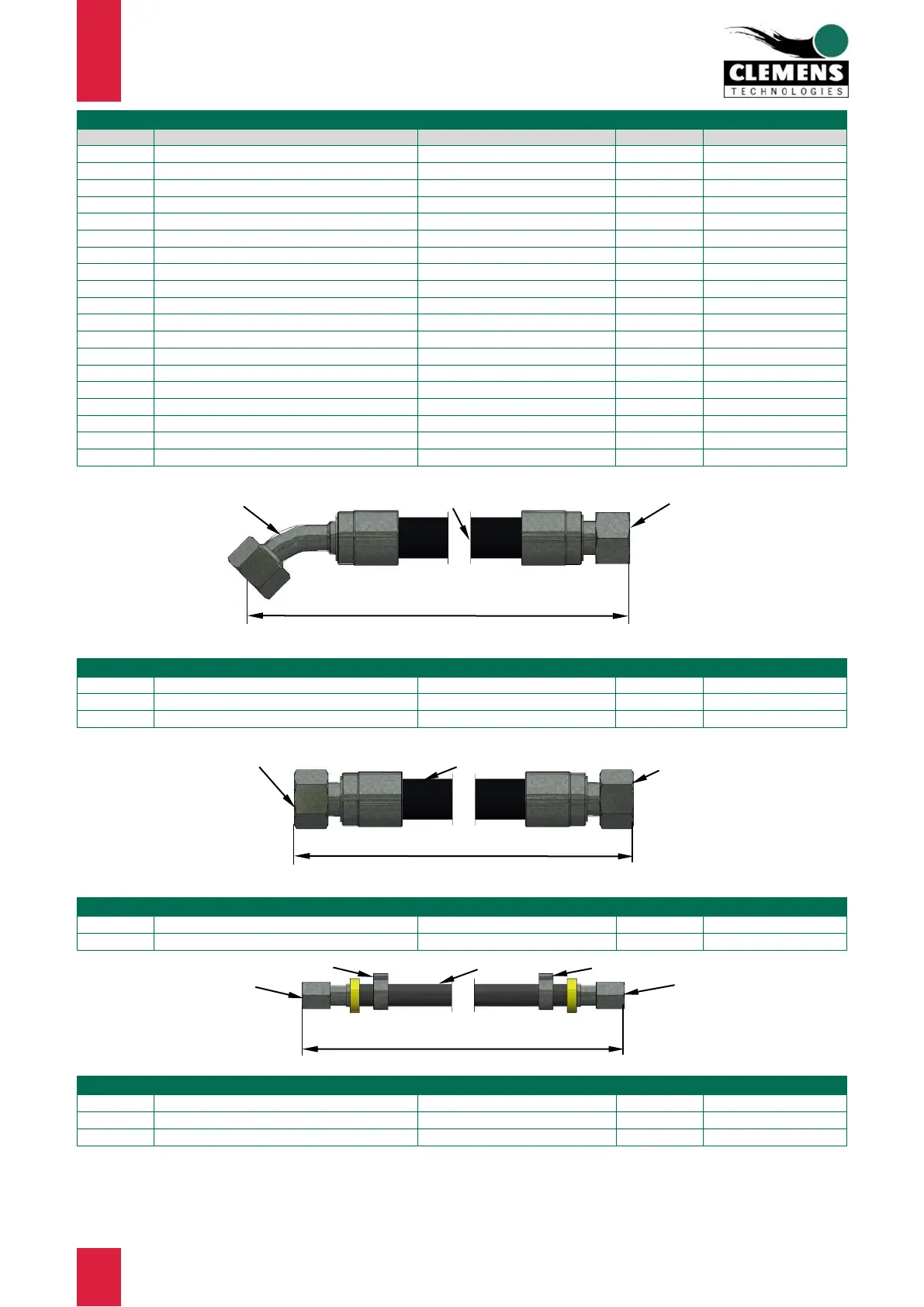

Clemens Technologies RADIUS SL PLUS User Manual

RADIUS SL PLUS 03.2019 en 49
Item no.
Specification
Remark
Quantity
Order no.
Hydraulic hoses 1-sided
complete (without motor)
CA917.055000
1
Sticker "Return oil hose"
1
CW002.003400
2
Hose protector textile
Length in mm
CW700.030000
3
Coupling plug
1
CW720.000300
4
Dust cap
1
CW720.005200
5
Dust cover for coupling plug SVK
1
CW720.006000
6
Quick coupling sleeve BG3
1
CW720.010900
7
T-fitting
1
CW730.004700
8
Angular fitting
1
CW730.004900
9
Union nut
1
CW730.011300
10
Check valve
1
CW730.011700
11
Straight fitting
1
CW730.014800
12
Angular fitting
1
CW730.020900
13
Straight fitting
1
CW730.035300
14
Double nut
1
CW730.042600
15
Reducing coupling
1
CW730.054800
16
Elbow fitting 45°
1
CW730.074200
17
Closing slug
1
CW730.090600
18
Swiveling screw connection
1
CW730.098000
19
Cable tie
not shown
3
CW830.061700
A = Pressure hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.065000
2
Pressed fitting
1
CW710.003500
3
Pressed fitting
1
CW710.004400
B = Return oil hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.065100
2
Pressed fitting
2
CW710.004500
C = Leak oil hose
Item no.
Specification
Remark
Quantity
Order no.
1
Ear clamp
2
CW500.034200
2
Hydraulic hose
„L“ = length in mm
1
CW700.002200
3
Pipe socket
2
CW710.008800
1
1
“L“ = length in mm incl. pressed fittings
2
1
3
1
2
3
“L“ = length in mm incl. pressed fittings
“L“ = length in mm incl. pressed fittings
2
3
3
