Clemens Technologies RADIUS SL PLUS User Manual

RADIUS SL PLUS 03.2019 en 80
10.36 Hosing variant basic device RADIUS: 1-sided mounting
Front, rear and mid mounting
H Hydraulic installation from the tractor to the RADIUS basic unit 1-sided
Note:
The connection marked * is located on the RADIUS itself. The hose must be
pressed at this connection. (see 10.4, items 6, 7 and 22)
The hydraulic hose A is also connected to the RADIUS itself. (see 10.4, item
10)
A = Pressure hose RADIUS
B = Return oil hose RADIUS

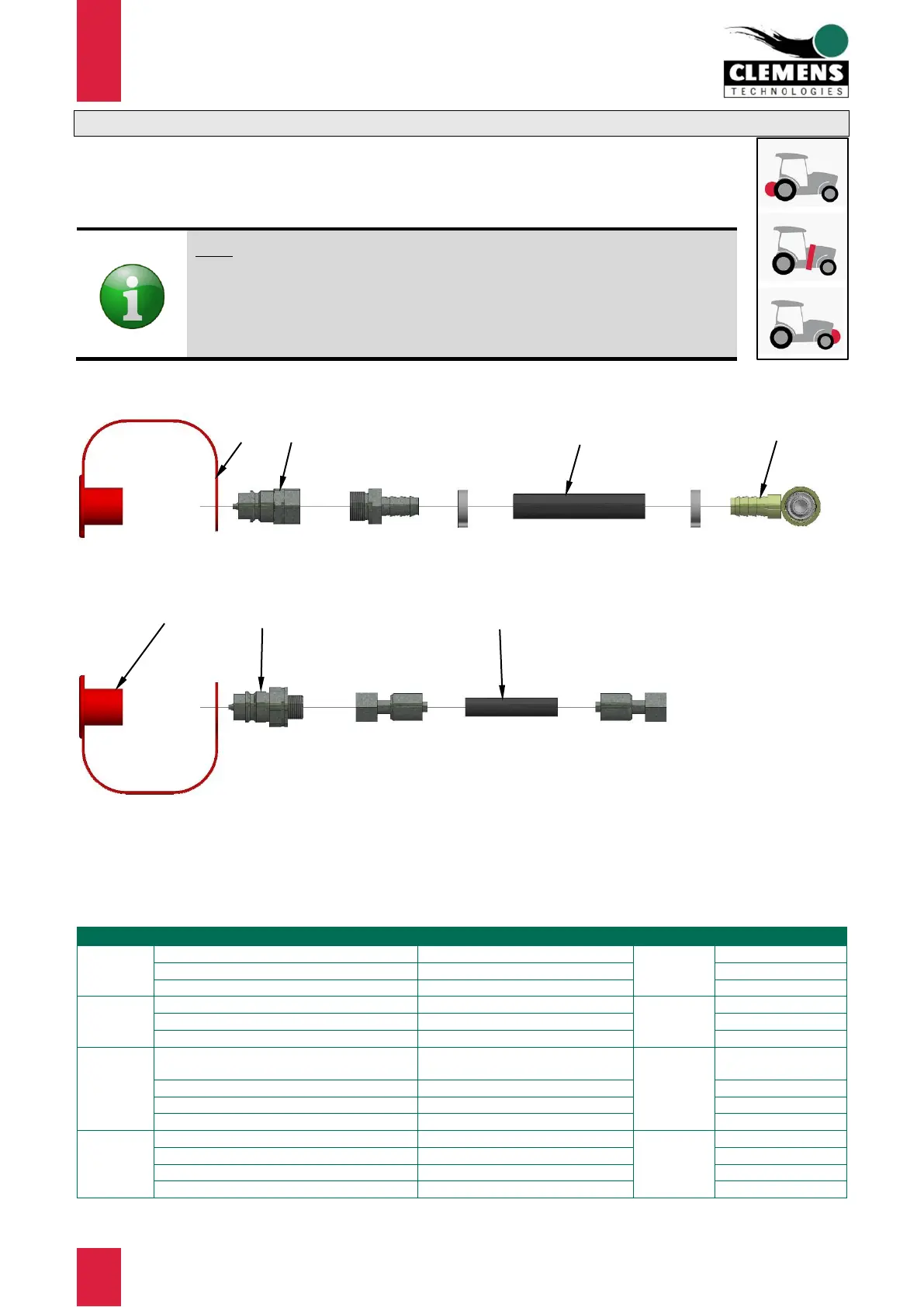

Figure 74 Hosing variant basic device RADIUS: 1-sided mounting
Item no.
Specification
Remark
Quantity
Order no.
1
Coupling plug SVK
standard
CW720.000200
Coupling sleeve SVK
e.g. for Fendt
CW720.003600
Coupling plug flat
e.g. for Holder
CW720.000700
2
Coupling plug SVK
standard
CW720.001000
Coupling sleeve SVK
e.g. for Fendt
CW720.000600
Coupling plug flat
e.g. for Holder
CW720.004200
3
Dust cover for coupling plug SVK
standard
CW720.005900
(CW720.000600)
Dust cover for coupling sleeve SVK
e.g. for Fendt
CW720.007900
Dust cover for coupling plug flat
e.g. for Holder (pressure hose)
CW720.005200
Dust cover for coupling plug flat
e.g. for Holder (return oil hose)
CW720.005300
Pressure hose length 1700 mm (66.9“)
complete hose A + items 1, 3
CW700.020600
Pressure hose length 2000 mm (78.7“)
complete hose A + items 1, 3
CW700.021500
Pressure hose length 2800 mm (110.2“)
complete hose A + items 1, 3
CW700.021900
Pressure hose length 2500 mm (98.4“)
complete hose A + items 1, 3
CW700.023000
*
B
2
3
3
1
A
