10.24 Clearing body LW-1

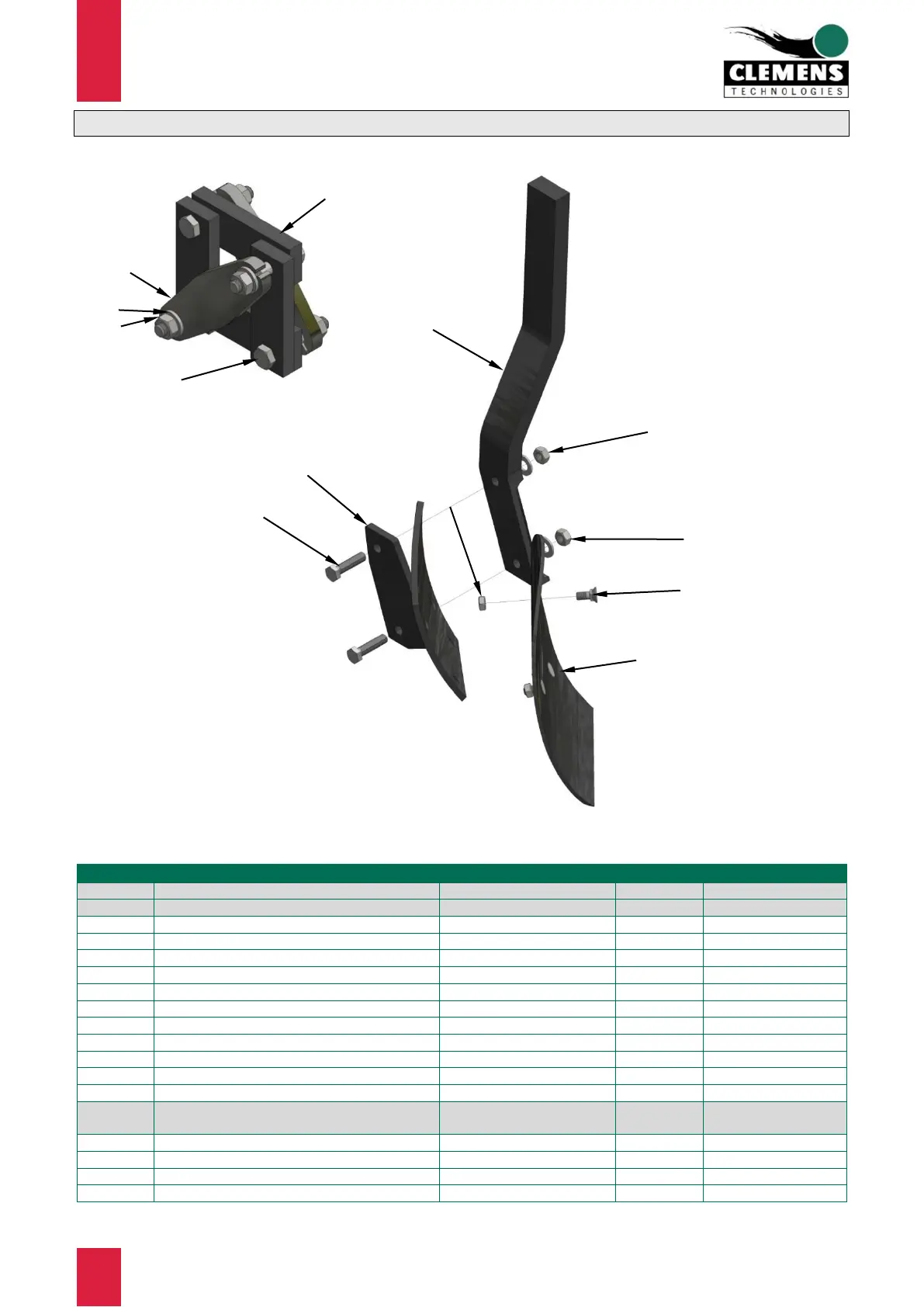

Figure 62 Spare parts Clearing body LW-1
Item no.
Specification
Remark
Quantity
Order no.
Clearing body LW1 rhs
complete items no. 1-8
CA919.140000
Clearing body LW1 lhs
complete items no. 1-8
CA919.640000
1
Front rhs
1
CA919.141100
1
Front lhs
1
CA919.641100
2
Leg rhs
1
CL940.160001
2
Leg lhs
1
CL940.170001
3
Offset share rhs
1
CW650.008800
3
Offset share lhs
1
CW650.008900
4
Countersunk screw with nut
3
06081002504s
5
Hexagon head screw
2
093312035
6
Hexagon nut
2
093412
7
Washer
2
012513
8
Hexagon nut
3
093410
9
Additional part for attachment on plows:
Mounting clamp complete
CA952.110000
9.1
Clamp strap
2
CW030.000700
9.2
Hexagon head screw
4
093112055
9.3
Hexagon nut
4
093412
9.4
Washer
4
144012
1,1
2,2
3,3
7
5
8
6
4
9
9.1
9.4
9.3
9.2
