Clemens Technologies RADIUS SL PLUS - Override valve (electromagnetic, 2-sided, with relief valve)

RADIUS SL PLUS 03.2019 en 74
10.32 Override valve, electromagnetic, 2-sided, with pressure relief valve

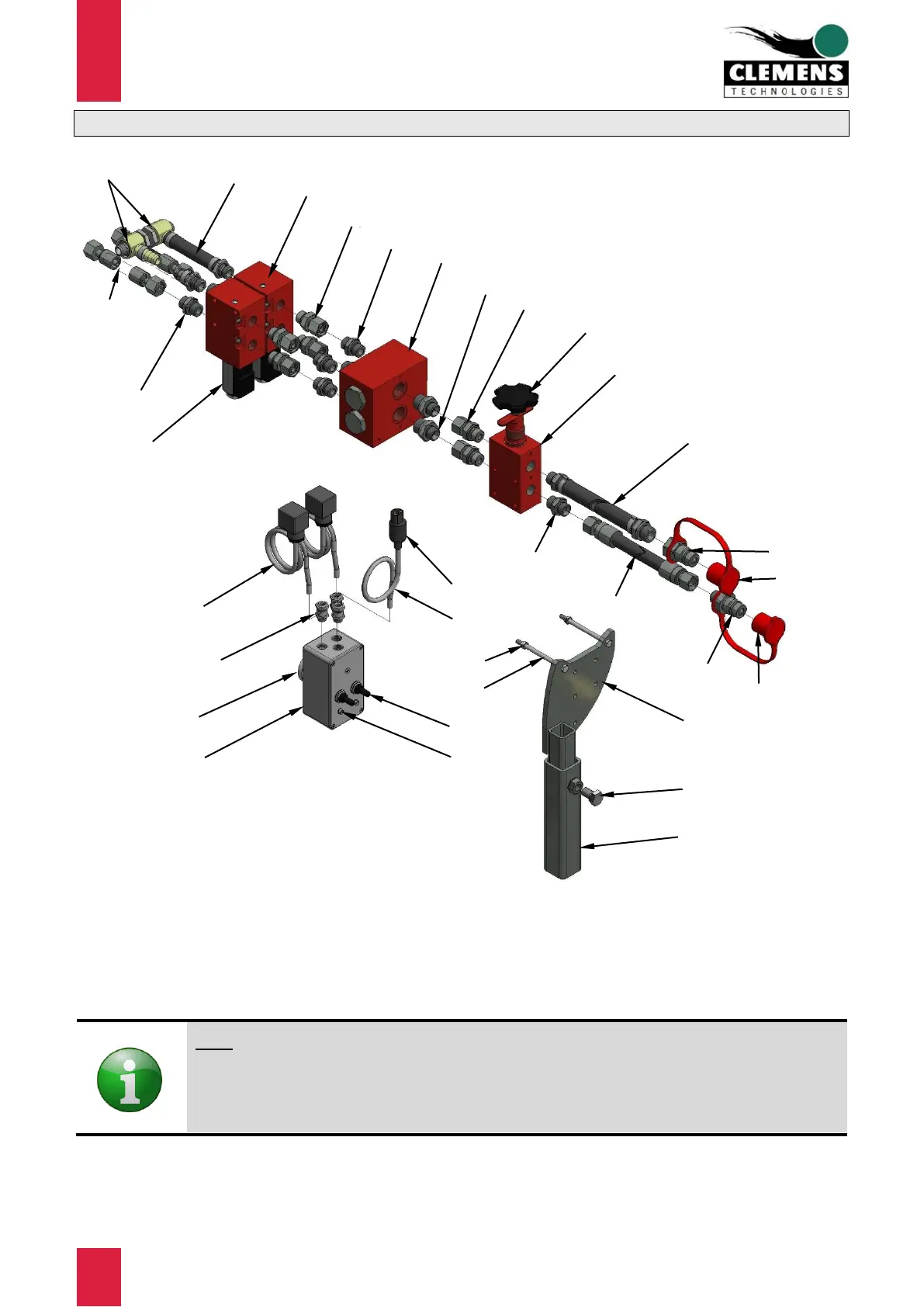

Figure 70 Spare parts Override valve, electromagnetic, 2-sided, with pressure relief valve
Note:
The connection marked * is located on the RADIUS itself. The hose must be pressed at this
connection. (see 10.4, items 6, 7 and 22)
The hydraulic hose B is also connected to the RADIUS itself. (see 10.4, item 10)
*
4.2
12
12
46
3
11
2
C
B
13
4.1
11
D
5.8
5.6
5.1
5.2
11
5.7
5.5
5.4
5.3
1.4
1.5
A
9
6
7
8
1.2
1.3
1.1
10
A = Pressure hose
B = Pressure hose RADIUS
C = Return oil hose RADIUS
D = Return oil hose
