Clemens Technologies RADIUS SL PLUS - Spring Unit

RADIUS SL PLUS 03.2019 en 39
10.7 Spring unit

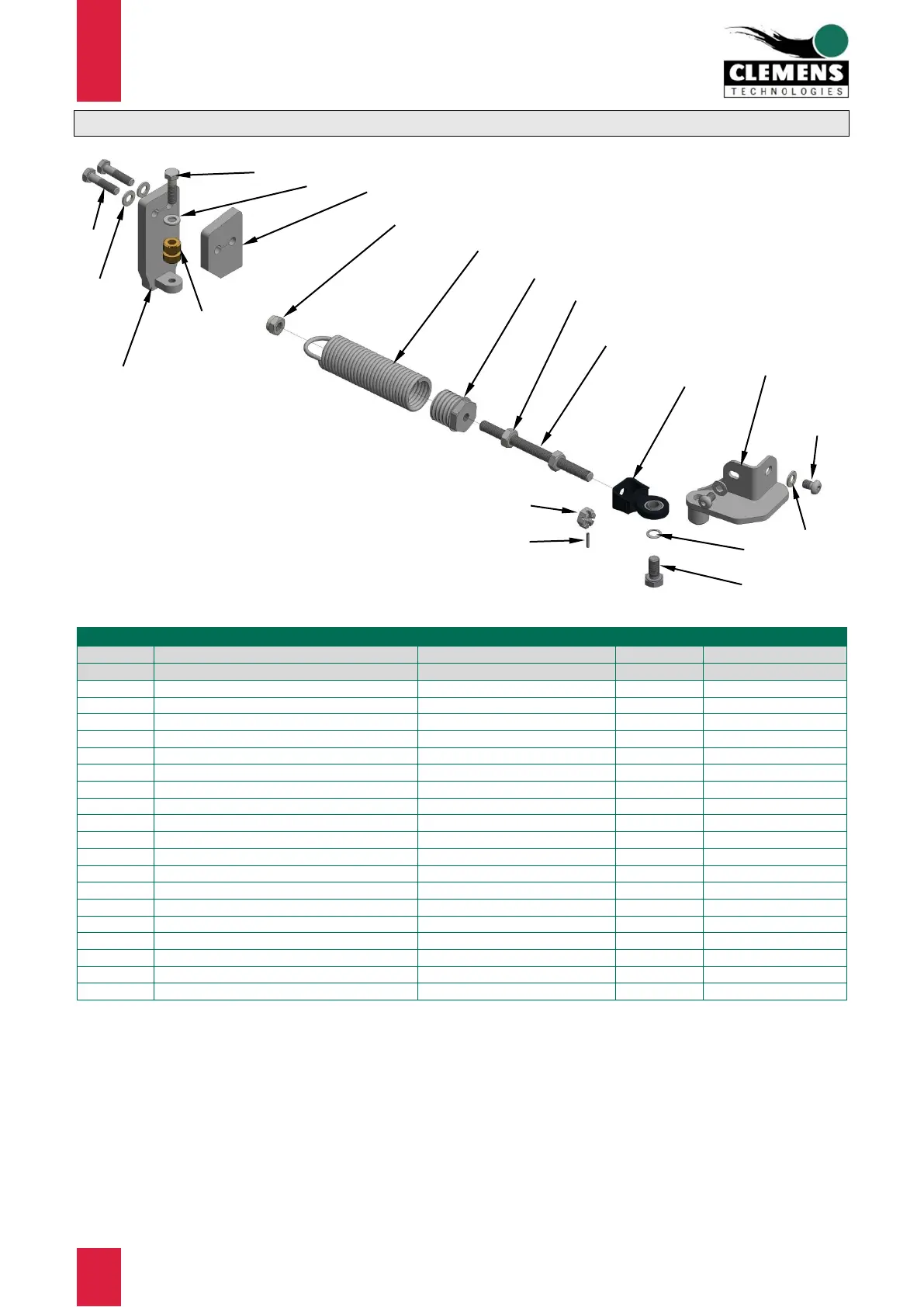

Figure 44 Spare parts Spring unit
Item no.
Specification
Remark
Quantity
Order no.
Spring unit complete rhs
1
CL861.050000
Spring unit complete lhs
1
CL861.150000
1
Spring support galv.
1
CL861.050100
2
Ball joint
1
CL861.050200
3
Threaded rod complete
with welded-on nut
1
CL861.050300
4
Spring mount rhs
1
CL861.050400
4
Spring mount lhs
1
CL861.150400
5
Spacer plate
1
CL861.050001
6
Tension spring
1
CL861.050003
7
Spring bushing
1
CL861.050004
8
Threaded plug
1
CL861.050005
9
Lock washer
1
CW520.002800
10
Lock washer
5
012508
11
Hexagon screw
2
093108035
12
Hexagon screw
1
093308030
13
Hexagon screw
1
093310022
14
Hexagon nut
1
093410
15
Castle nut
1
093710
16
Hexagon nut
1
098510
17
Clamping sleeve
1
148102516
18
Oval head screw
2
738008012
1
10
10
12
11
15
17
6
16
14
9
8
3
2
4,4
5
7
10
13
18
