10.3 Shaft unit (from 2019)
from serial number: CL861.00641 (right) / CL861.10515 (left)

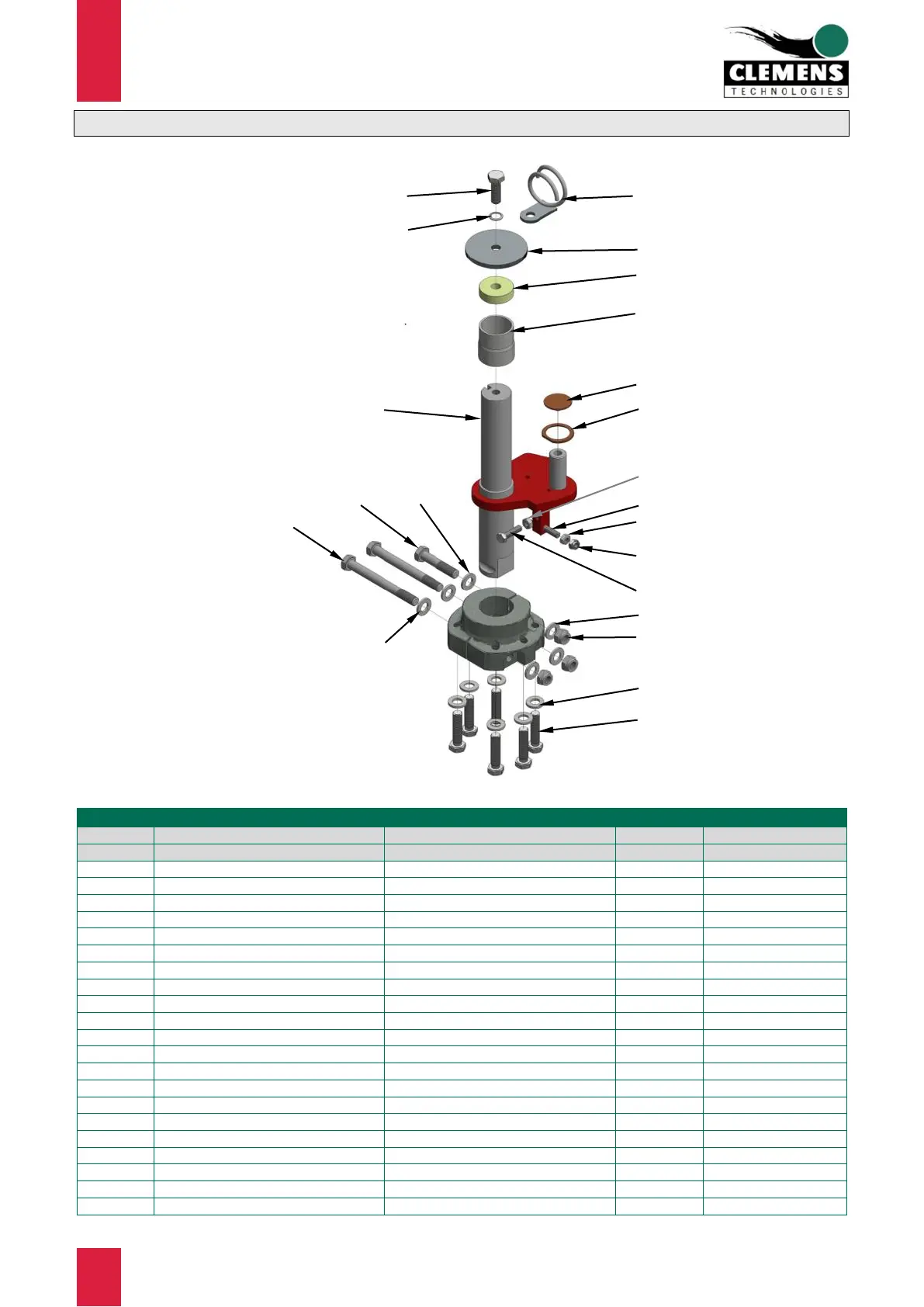

Figure 40 Spare parts Shaft unit (from 2019)
Item no.
Specification
Remark
Quantity
Order no.
Shaft unit rhs complete
from serial number: CL861.00641
CA861.020000
Shaft unit lhs complete
from serial number: CL861.10515
CA861.120000
1
Supporting shaft rhs
1
CA861.020100
1
Supporting shaft lhs
1
CA861.120100
2
Flange plate
1
CA861.020001
3
Cover disk
1
CL856.020001
4
Spacer
1
CL860.020003
5
Spacer disk
1
CL860.050004
6
Sliding disk
1
CW007.004900
7
Disk
1
CW007.005200
8
Lock washer
1
CW520.002900
9
Lock washer
6
CW520.004300
10
Washer
6
012513
11
Hexagon head screw
1
09311206010
12
Hexagon head screw
2
09311212010
13
Hexagon head screw
1
093308030
14
Hexagon head screw
1
093308040
15
Hexagon head screw
1
093312035
16
Hexagon head screw
6
093312050
17
Hexagon head screw
2
093408
18
Hexagon nut
1
098508
19
Hexagon nut
3
09851210
20
Hose guide, separate
not included in shaft unit complete
1
CL845.901000
15
10
8
3
5
4
6
7
17
14
17
18
13
10
19
19
16
11
10
12
20
1,1
