Clemens Technologies RADIUS SL PLUS User Manual

RADIUS SL PLUS 03.2019 en 71
10.29 Bridge hose for 1-sided operation with 2-sided hydraulic equipment,
disconnectable

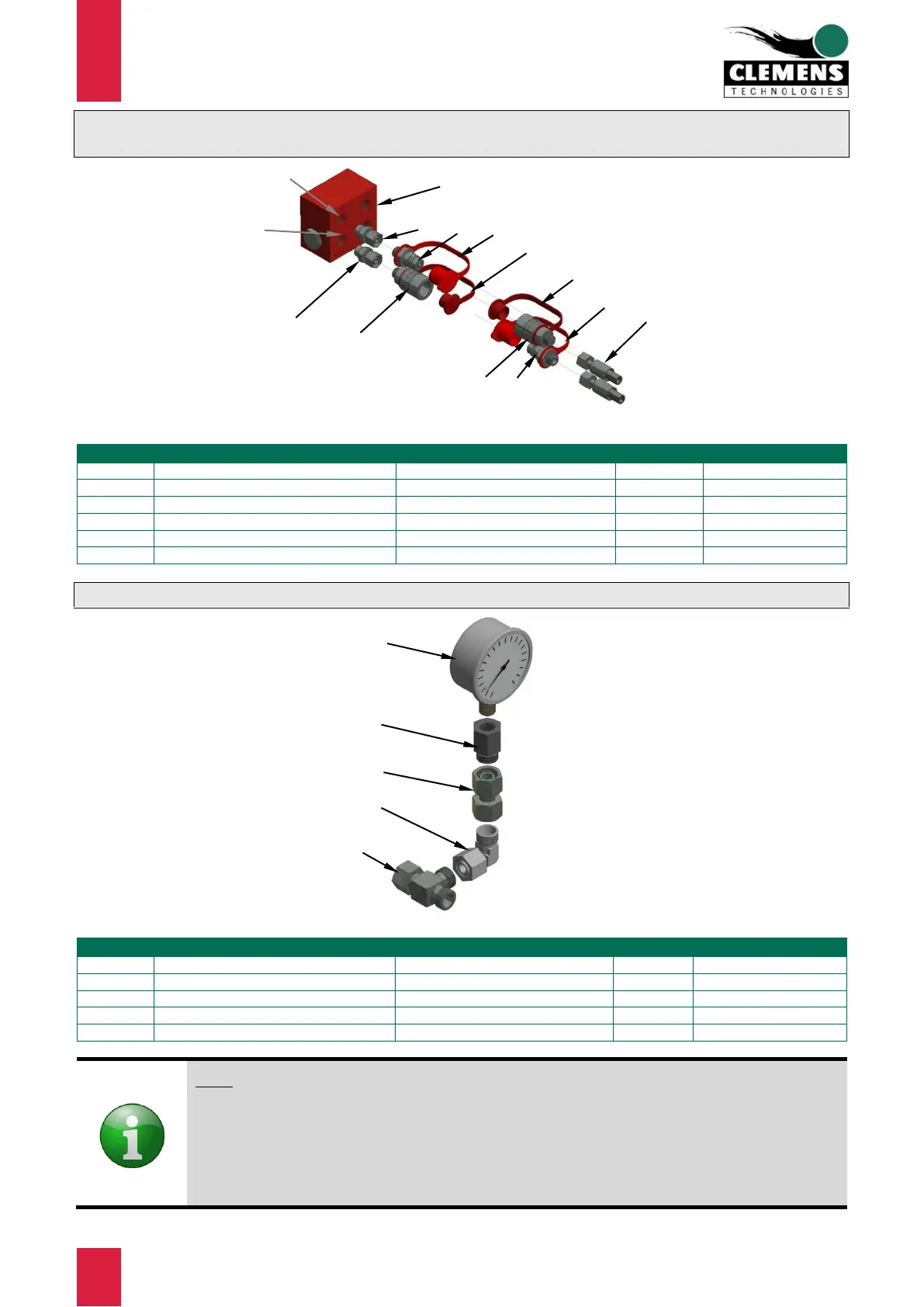

Figure 67 Spare parts Bridge hose 1-sided operation with 2-sided hydraulic equipment, disconnectable
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose 360 mm (14.2“)
with pressed fittings
1
CW700.021600
2
Coupling plug
2
CW720.000200
3
Coupling sleeve
2
CW720.003600
4
Dust cover for coupling plug
2
CW720.006000
5
Dust cover for coupling sleeve
2
CW720.007900
6
Srew-in fitting
2
CW730.031700
10.30 Retrofit kit manometer
Figure 68 Spare parts Retrofit kit manometer
Item no.
Specification
Remark
Quantity
Order no.
1
Straight connection
1
CW730.009000
2
L-Fitting with seal
1
CW730.010300
3
Angular fitting
1
CW730.010400
4
Manometer 0-250 bar (3626 psi)
1
CW740.063300
5
Manometer connection
1
CW740.063400
Note:
The Retrofit Kit Manometer CA895.391500 is exclusively to be used in conjunction with the
Pressure Relief Valve CW760.011600 (included as standard in 2-sided manual control
CG856.097000, for 1-sided manual control CF856.097000 available as option).
The retrofit kit manometer is inserted into the supply line "P" via the L-fitting (item no. 2) directly
upstream of the pressure relief valve.
T = Return oil line
P = Pressure line
T2
P2
4
5
5
4
6
6
3
3
2
1
Flow divider / Return
oil manifold
4
5
1
3
2
2
