10.35 Mounting kit B-quantity disconnectable for flow divider 0-25 l and 0-50 l

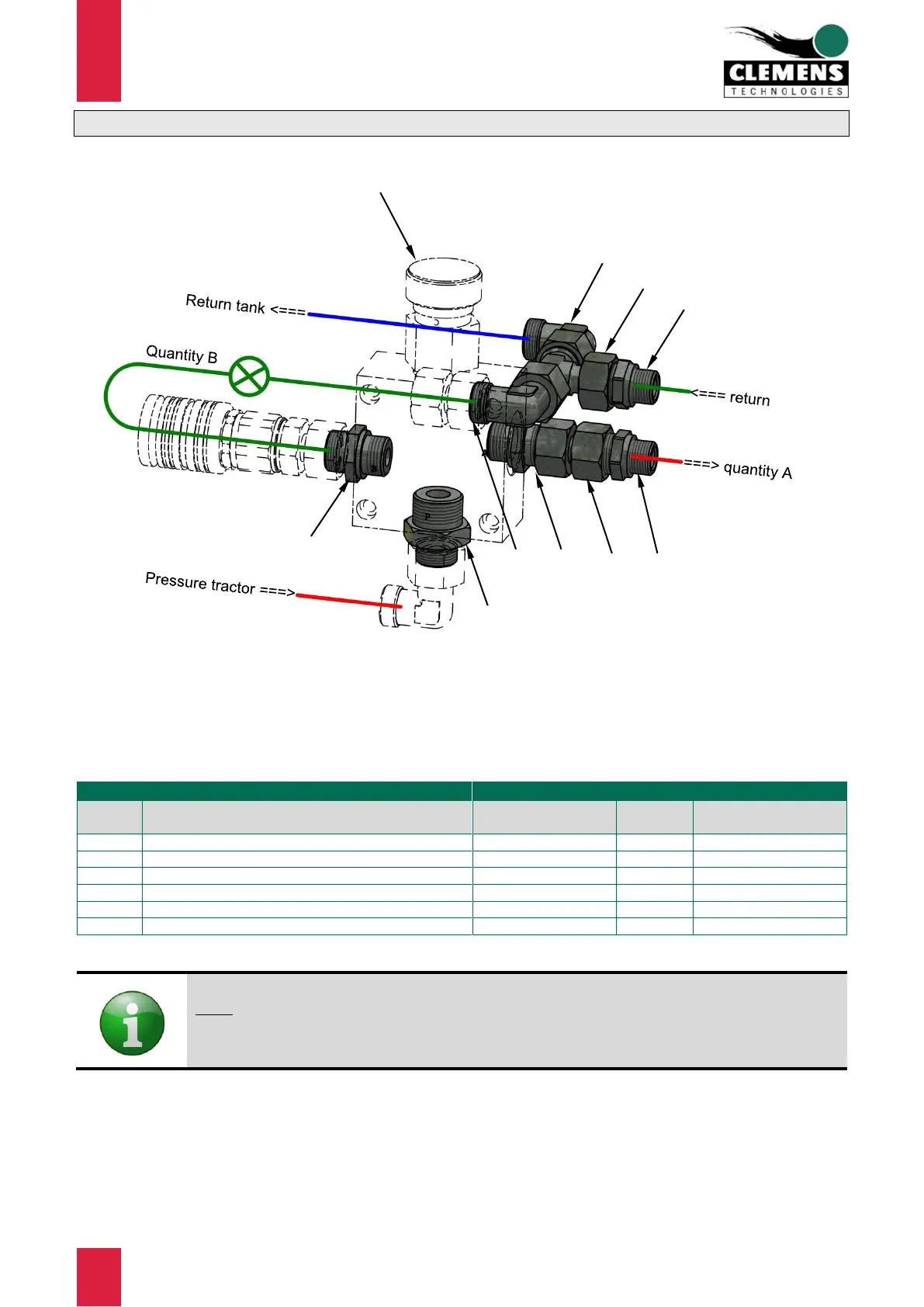

Figure 73 Spare parts Mounting kit B-quantity disconnectable for flow divider 0-25 l and 0-50 l
Item no.
Specification
Remark
Quantity
Order no.
Mounting kit B-quantity disconnectable for flow
divider 0-25 l (6.6 gal.) and 0-50 l (13.2 gal.)
complete
CD845.463300
1
Angular fitting 90°
2
CW730.004900
2
Straight fitting
2
CW730.014800
3
Double nut
1
CW730.034000
4
Straight fitting
1
CW730.034200
5
Adjustable T-fitting
1
CW730.077100
6
Straight screw socket
2
CW730.079200
Note:
Mounting on flow divider CD845.463201 (0-25 l (6.6 gal.)) or CD845.463202 (0-50 l (13.2 gal.)).
1
4
Flow divider
5
6
1
2
3
6
2
