Clemens Technologies RADIUS SL PLUS - Oil flow divider with return oil manifold (50;50)

RADIUS SL PLUS 03.2019 en 68
10.28 Oil flow divider with return oil manifold 50/50 with hoses

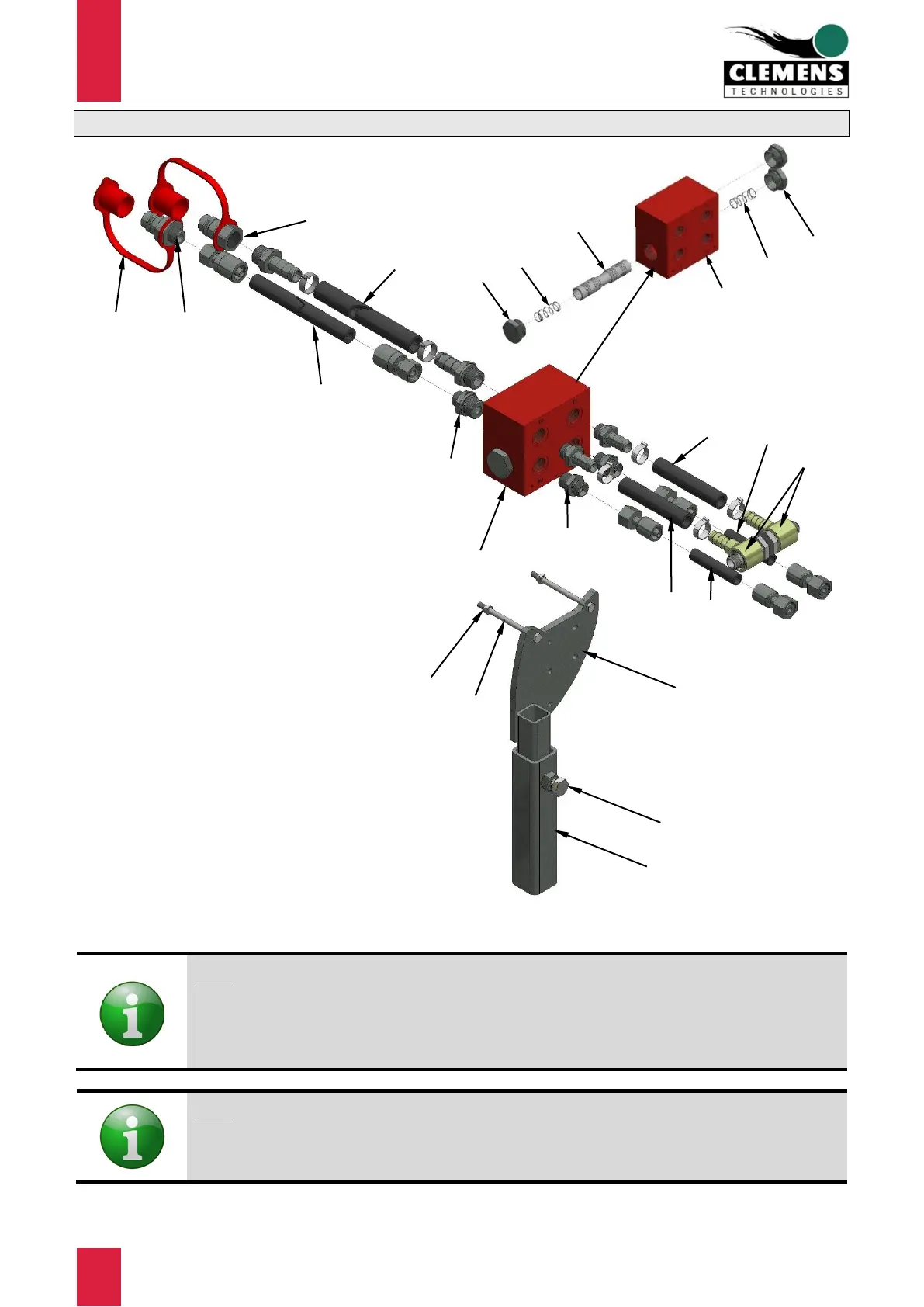

Figure 66 Spare parts Oil flow divider with return oil manifold 50/50 with hoses
Note:
The connection marked * is located on the RADIUS itself. The hose must be pressed at this
connection. (see 10.4, items 6, 7 and 22)
The hydraulic hose B is also connected to the RADIUS itself. (see 10.4, item 10)
Note:
When ordering hydraulic hoses for replacement, measure the length "L" (including pressed
fittings) and indicate in mm (Conversion aid: 1” = 25.4 mm).
3
D
2
5
1
C
*
A
6
7
C
B
B
1.3
1.2
1.1
1.4
1.3
1.4
A = Pressure hose
B = Pressure hose RADIUS
C = Return oil hose RADIUS
D = Return oil hose
8.2
8.3
8.1
8.5
8.4
