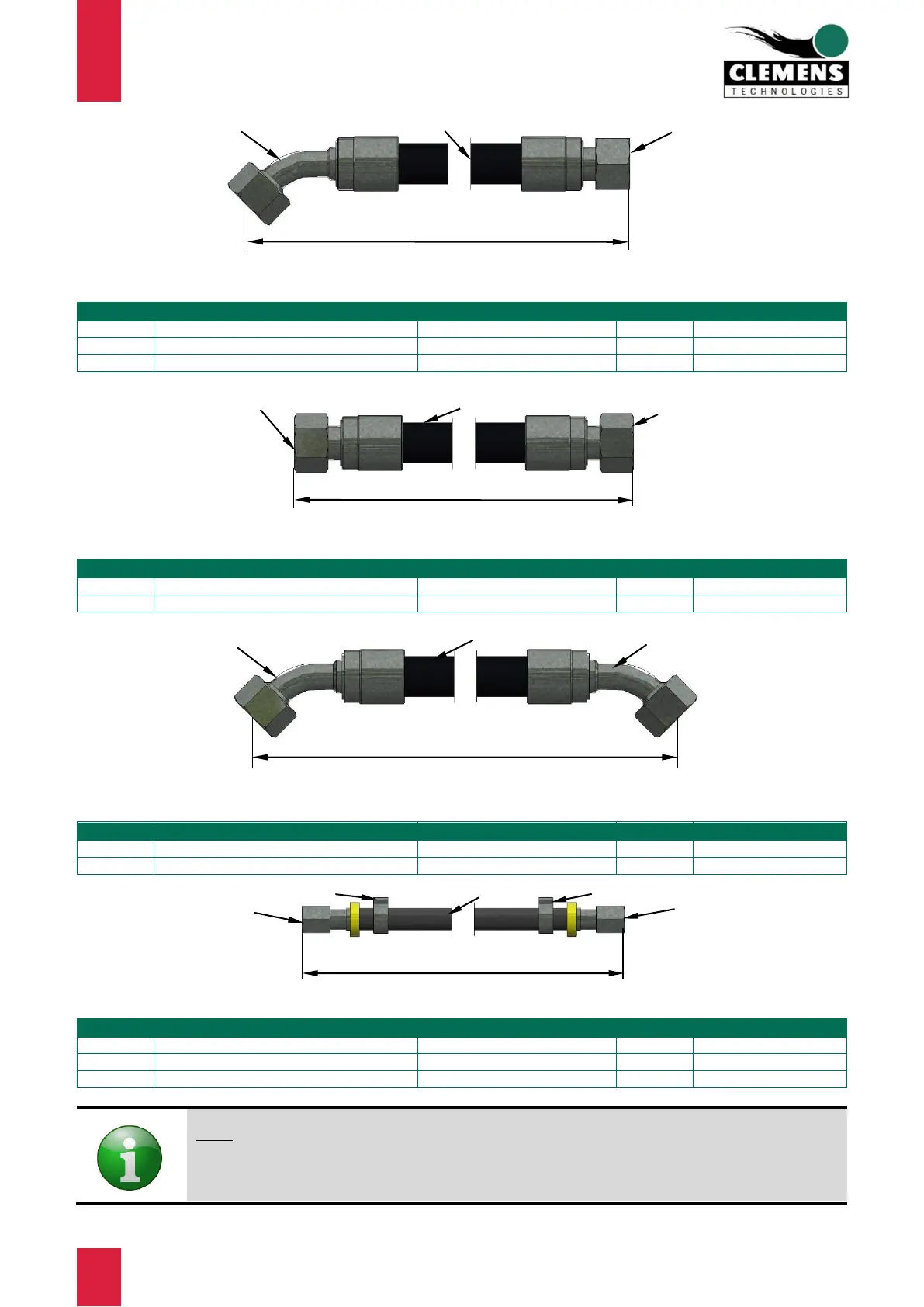

A = Pressure hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.065000
2
Pressed fitting
1
CW710.003500
3
Pressed fitting
1
CW710.004400
B = Return oil hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.065100
2
Pressed fitting
2
CW710.004500
C = Bridge hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.065000
2
Pressed fitting
2
CW710.003500
D = Bridge hose
Item no.
Specification
Remark
Quantity
Order no.
1
Ear clamp
2
CW500.034200
2
Hydraulic hose
„L“ = length in mm
1
CW700.002200
3
Pipe socket
2
CW710.008800
Note:
When ordering hydraulic hoses for replacement, measure the length "L" (including pressed
fittings) and indicate in mm (Conversion aid: 1” = 25.4 mm).
