Clemens Technologies RADIUS SL PLUS User Manual

RADIUS SL PLUS 03.2019 en 53
Item no.
Specification
Remark
Quantity
Order no.
Conversion kit Rotary Cultivator
Reverse
complete
CA895.405000
1
Hose protector textile
1
CW700.030000
2
Coupling plug
1
CW720.000300
3
Dust cover for coupling plug
1
CW720.006000
4
Coupling sleeve
1
CW720.012100
5
Coupling plug
1
CW720.012200
6
Dust cover
1
CW720.012300
7
Dust cover
1
CW720.012400
8
Angular fitting
1
CW730.004900
9
L-Fitting
1
CW730.006200
10
Straight fitting
1
CW730.014800
11
Straight screwed socket
1
CW730.034100
12
Straight fitting
1
CW730.049400
13
Double nut
1
CW730.049600

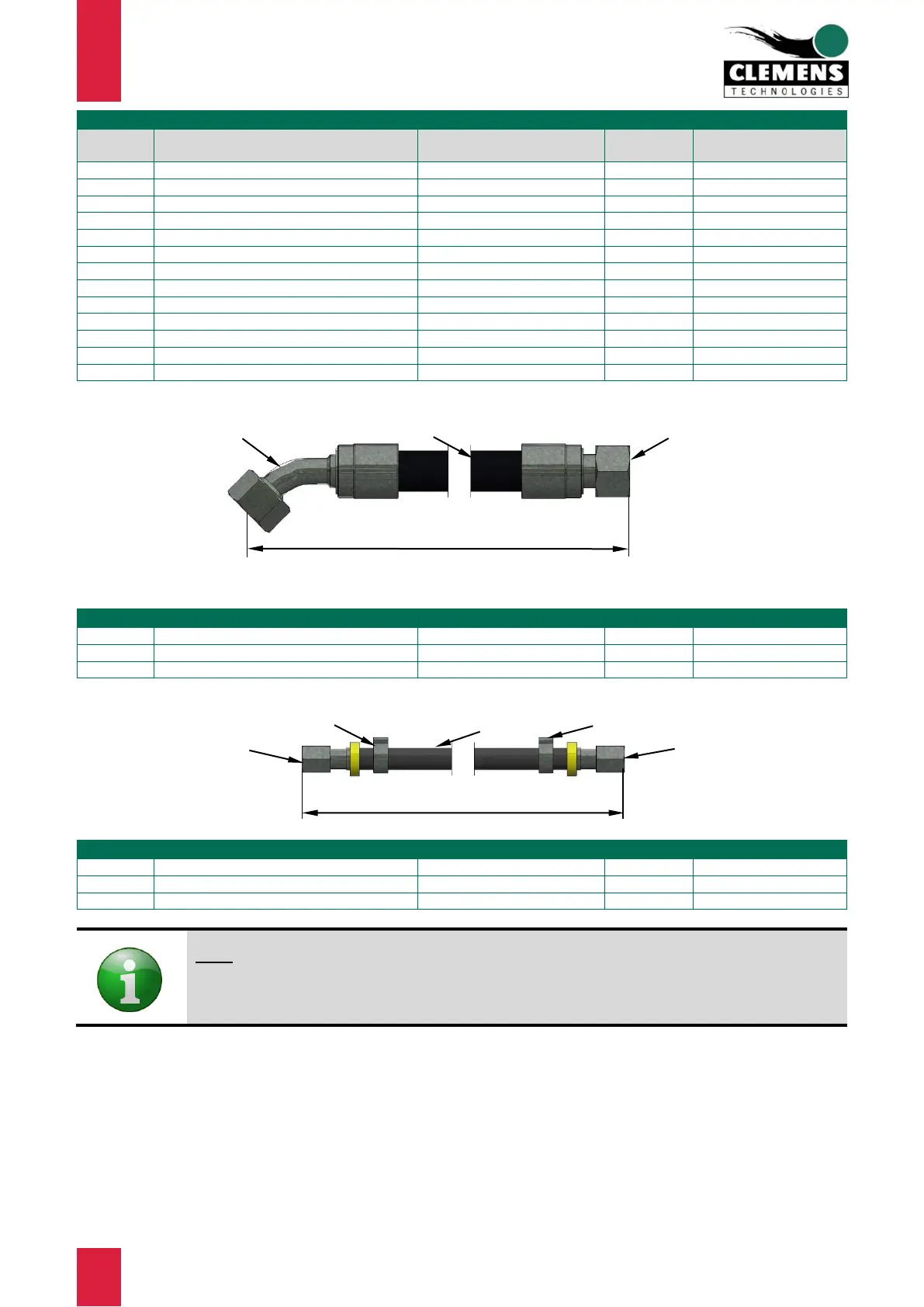

A = Return oil hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.065000
2
Pressed fitting
1
CW710.003500
3
Pressed fitting
1
CW710.004400
B = Leak oil hose
Item no.
Specification
Remark
Quantity
Order no.
1
Ear clamp
2
CW500.034200
2
Hydraulic hose
„L“ = length in mm
1
CW700.002200
3
Pipe socket
2
CW710.008800
Note:
When ordering hydraulic hoses for replacement, measure the length "L" (including pressed
fittings) and indicate in mm (Conversion aid: 1” = 25.4 mm).
1
1
“L“ = length in mm incl. pressed fittings
2
3
3
“L“ = length in mm incl. pressed fittings
2
1
3
