Clemens Technologies RADIUS SL PLUS User Manual

RADIUS SL PLUS 03.2019 en 57
Item no.
Specification
Remark
Quantity
Order no.
Hydraulic hoses 1-sided complete
without motor and item no. 18
CC849.070000
1
Return oil collector
1
CC849.060100
2
Sticker "Return oil hose"
1
CW002.003400
3
Hose protector textile
Length in mm
1
CW700.030000
4
Coupling plug
1
CW720.000200
5
Coupling plug
1
CW720.000300
6
Dust cover for coupling plug
2
CW720.006000
7
Angular fitting
1
CW730.004900
8
Straight connection
1
CW730.009000
9
L-Fitting with seal
1
CW730.010300
10
Angular fitting, adjustable
2
CW730.010400
11
Union nut
1
CW730.011300
12
Check valve
1
CW730.011400
13
Straight screwed socket
2
CW730.031600
14
Double nut
1
CW730.042500
15
Swiveling T-fitting
1
CW730.066200
16
Wear slug
1
CW730.090600
17
Swiveling screw connection
1
CW730.098000
18
Pump connection
not included in complete part
2
CW750.015700
19
Check valve
1
CW730.026000

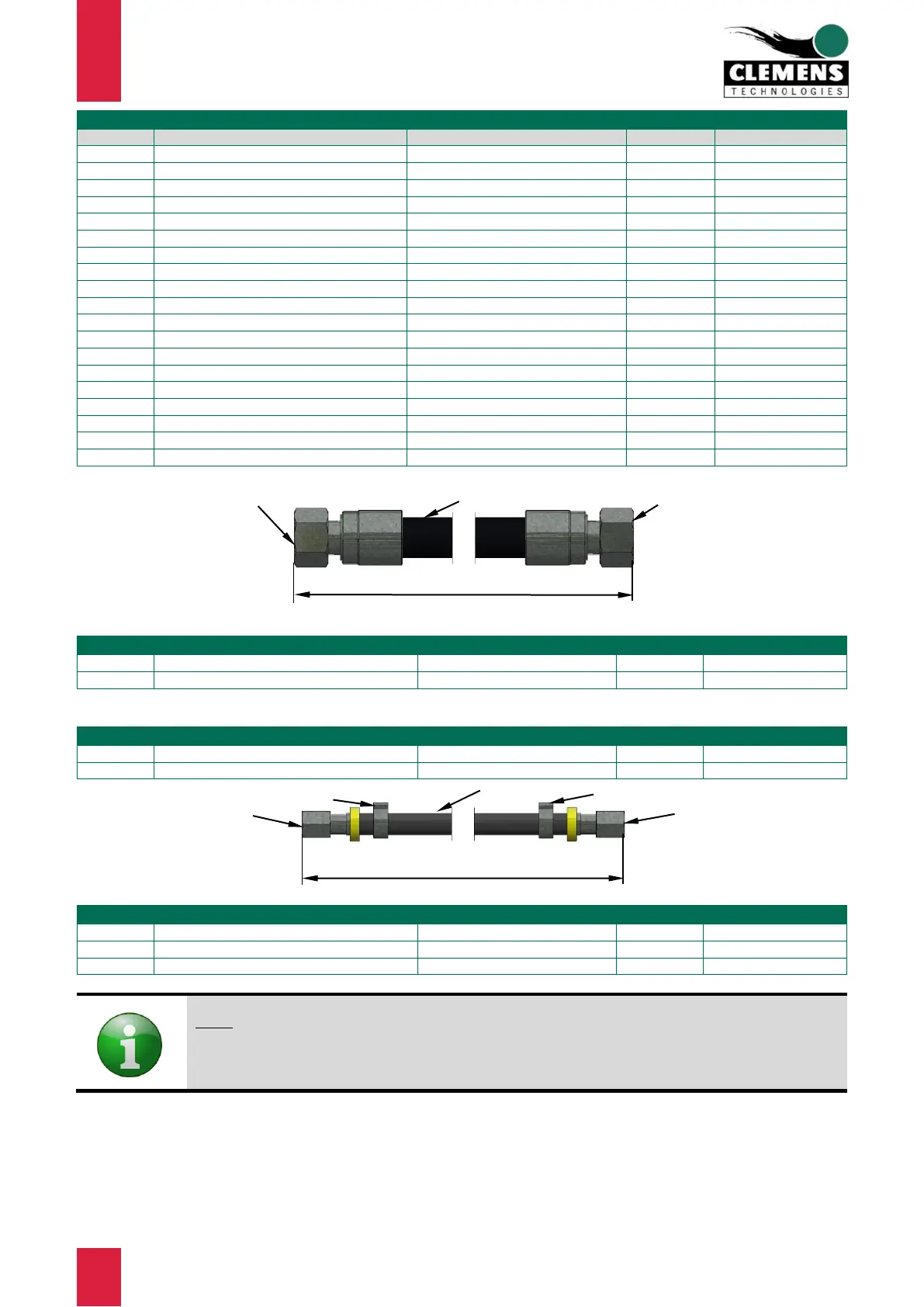

A = Pressure hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.001300
2
Pressed fitting
2
CW710.004200
B = return oil hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.006500
2
Pressed fitting
2
CW710.004400
C = Leak oil hose
Item no.
Specification
Remark
Quantity
Order no.
1
Ear clamp
2
CW500.034200
2
Hydraulic hose
„L“ = length in mm
1
CW700.002200
3
Pipe socket
2
CW710.008800
Note:
When ordering hydraulic hoses for replacement, measure the length "L" (including pressed
fittings) and indicate in mm (Conversion aid: 1” = 25.4 mm).
1
1
2
2
“L“ = length in mm incl. pressed fittings
“L“ = length in mm incl. pressed fittings
2
3
3
1
