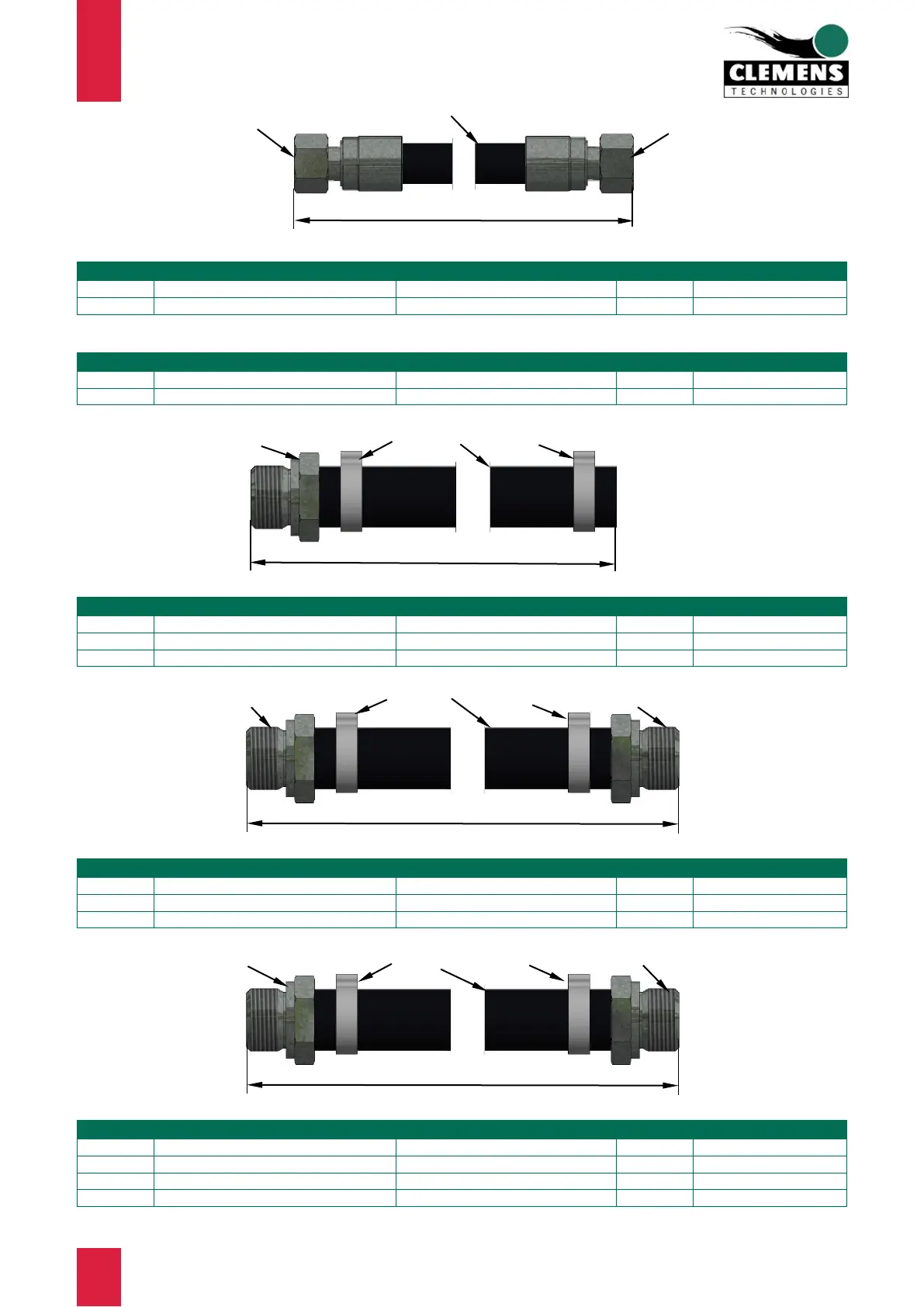

A = Pressure hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.001300
2
Pressed fitting
2
CW710.004200
B = Pressure hose RADIUS
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.001200
2
Pressed fitting
2
CW710.003800
C = Return oil hose RADIUS
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.001700
2
Threaded hose stem
1
CW011.620800
3
Clip 1-eye
2
CW500.034000
D = Return oil hose
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.002100
2
Threaded hose stem
2
CW011.620100
3
Clip 1-eye
2
CW500.034000
E = Return oil hose – connection
Item no.
Specification
Remark
Quantity
Order no.
1
Hydraulic hose
„L“ = length in mm
1
CW700.002100
2
Threaded hose stem
1
CW011.620100
3
Threaded hose stem
1
CW011.620900
4
Clip 1-eye
2
CW500.034000
2
3
1
3
L“ = length in mm incl. pressed fittings
L“ = length in mm incl. pressed fittings
„L“ = length in mm incl. pressed fittings
L“ = length in mm incl. pressed fittings
2
2
1
2
2
3
3
1
4
4
2
3
1
