Advanced M52 Microprocessor User's Guide
ADVANCED M52UMCT2019 COLOR
1
Every master unit in the Co-Work™ network must have a unique address which can be set
through the DIP switches on the main board. Jumpers must also be installed on 2 units in each
Co-work network at position JP401 shown below.
LED Flash Fast- Single Unit, Flash Slow- Master Unit, Solid ON- Slave Unit
Co work DIP Switches SW402
Co work Jumper JP401
Co work LED Y202

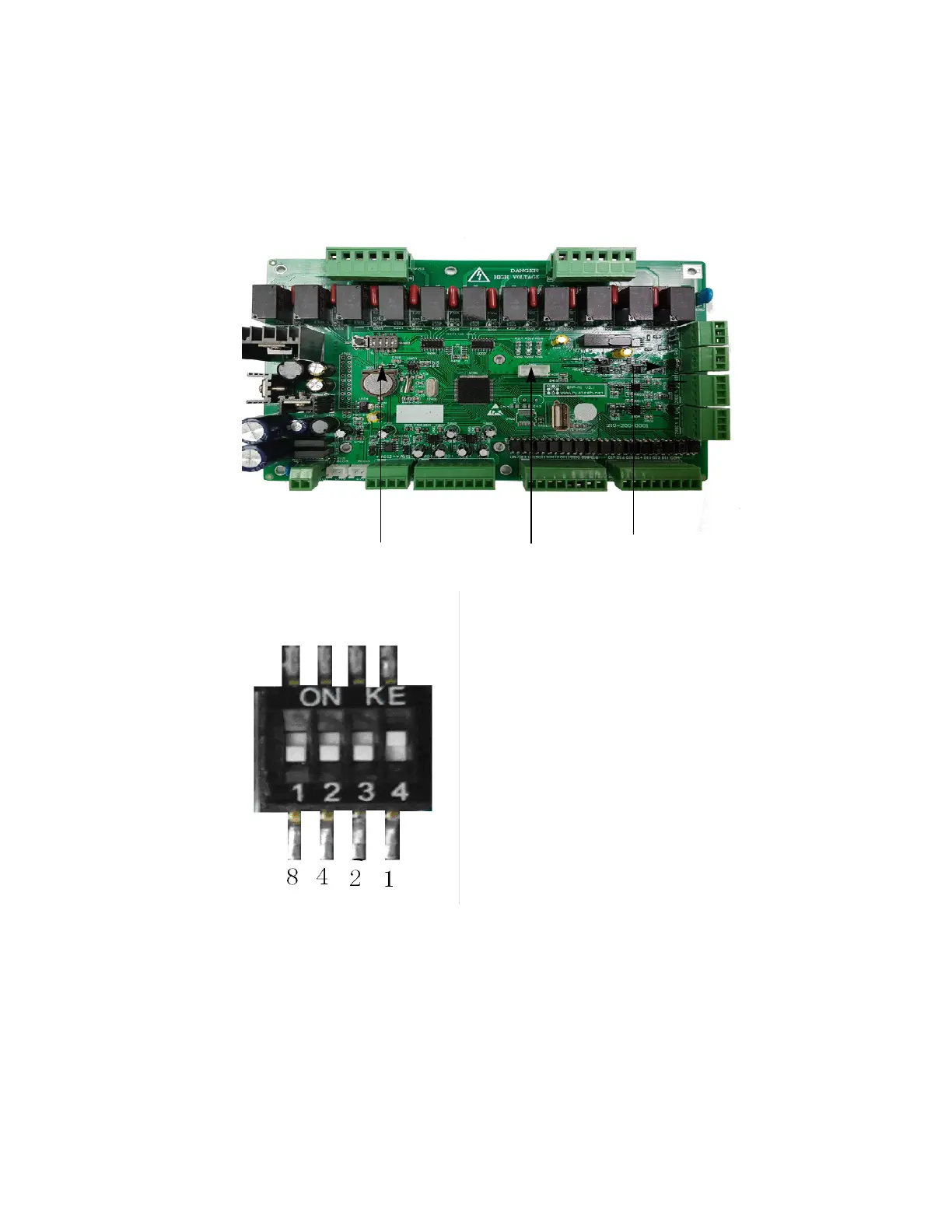

Fig 1.MainBoard DIP Switch
