SYSTEM COMPONENT CONFIGURATION
select
9
9
select
10
select
11
select
12

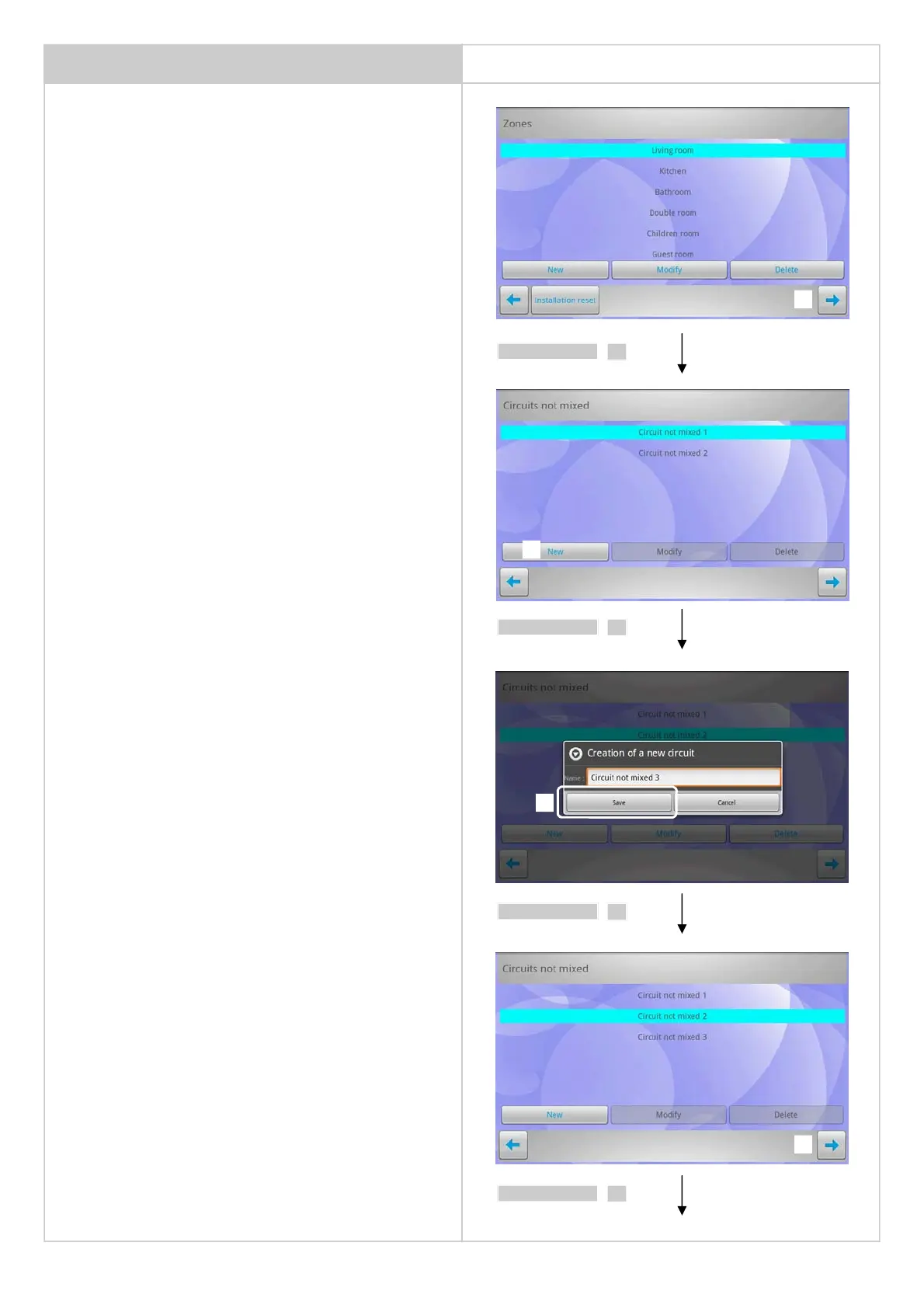

Define the hydraulic circuits:
• high temperature non-mixed circuits (max. 10)
Circuits greater than 4 refer to the 1st high temperature area
• low temperature mixed circuits (max. 3) refer to the
subsequent page
Possible combinations with boosters:
STD booster
• area 1: high temperature only
optional boosters
• 2 areas: high temperature only
• 2 areas: one high temperature + one low temperature
• 3 areas: high temperature only
• 3 areas: two high temperature + one low temperature
• 3 areas: one high temperature + two low temperature
• 4 areas: high temperature only
• 4 areas: three high temperature + one low temperature
• 4 areas: two high temperature + two low temperature
• 4 areas: one high temperature + three low temperature
10
11
12
