Page 64

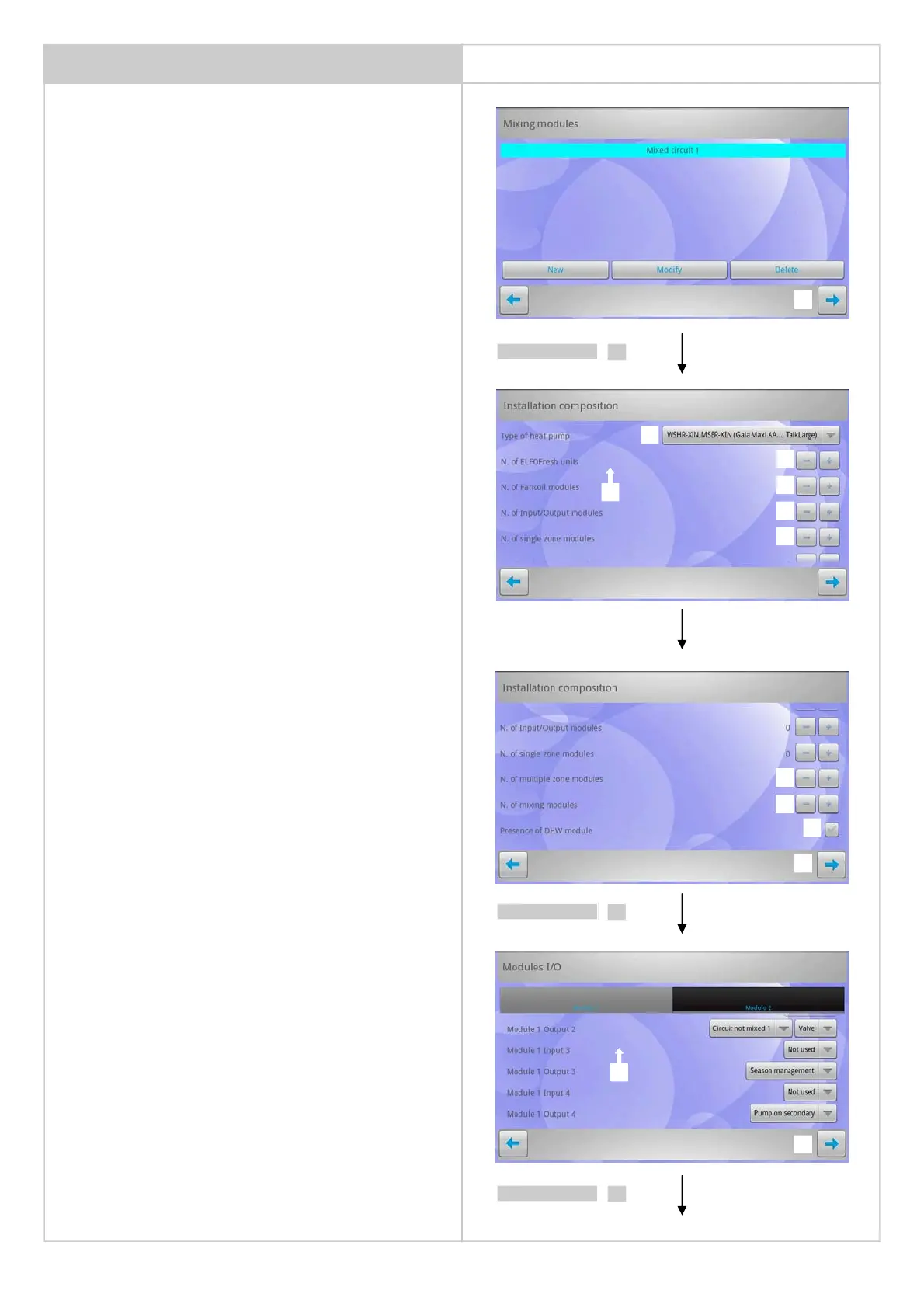

SYSTEM COMPONENT CONFIGURATION
Define mixed circuits:
• low temperature mixed circuits (max. 3)
• for combinations, refer to the previous page
select
13
select
14
select
15
Define the composition of the system:
A.
heat pump type
B.
number of Elfofresh units (max. 4)
C. number of Fancoil modules (max. 40 including other
components found)
D.
number of Input/Output modules (max. 2)
E.
number of single area modules (max. 40 including other
components found)
F.
number of multiple area modules (max. 5)
G.
number of mixing modules (max. 3)
H.
presence of domestic hot water module
To see the other components, drag area "1" upwards
13
15
A
B
C
D
E
F
G
H
1
14
Define module inputs and outputs:
• remote On/Off input allows the remote activation of
ELFOSystem;
• auxiliary heater alarm input allows obtaining the auxiliary
heater alarm.
Configure the outputs to control the following functions:
• activation of the circulator: it activates when the hydraulic
circuit combined with the circulator is requested;
• area valve control: it activates when the hydraulic circuit
combined with area valve is requested;
• seasonal control: it closes the system when it is in heating
mode, whilst, when in cooling mode, it opens it. If the system is
provided with a Chiller combined with a boiler, it can be used
to drive the shut-off valves of the hydraulic circuit;
• auxiliary resource control in heating mode: it activates
when the system is in heating mode and any area is
requested.
In case only one boiler not combined with a heat pump is used.
Cooling only unit
In case the boiler is used combined with a unit for the
production of cooling energy only, the module must switch the
circuits, depending on the operation mode of the system in
heating or cooling mode.
• secondary pump control: it activates when any area is
requested.
To see the others, drag area "1" upwards.
