66
Electrical connections
7.9.1 User interface installation requirements
Do not install in environments with a strong presence of oil, steam or gaseous sulphides.
Failure to do so may result in damage to the product and malfunction.
• Check that all the components listed below are present
• The wired remote control circuit is low voltage. It should not be connected to a normal 220V/380V circuit,
nor should it be placed in the same wiring duct as such a circuit.
• The shielded cable must be firmly earthed otherwise transmission problems may occur.
• Do not cut the shielded cable to connect it to an extension lead. Use a terminal block if necessary.
• Do not use a megger to check the insulation of the signal wire when the connection is completed.

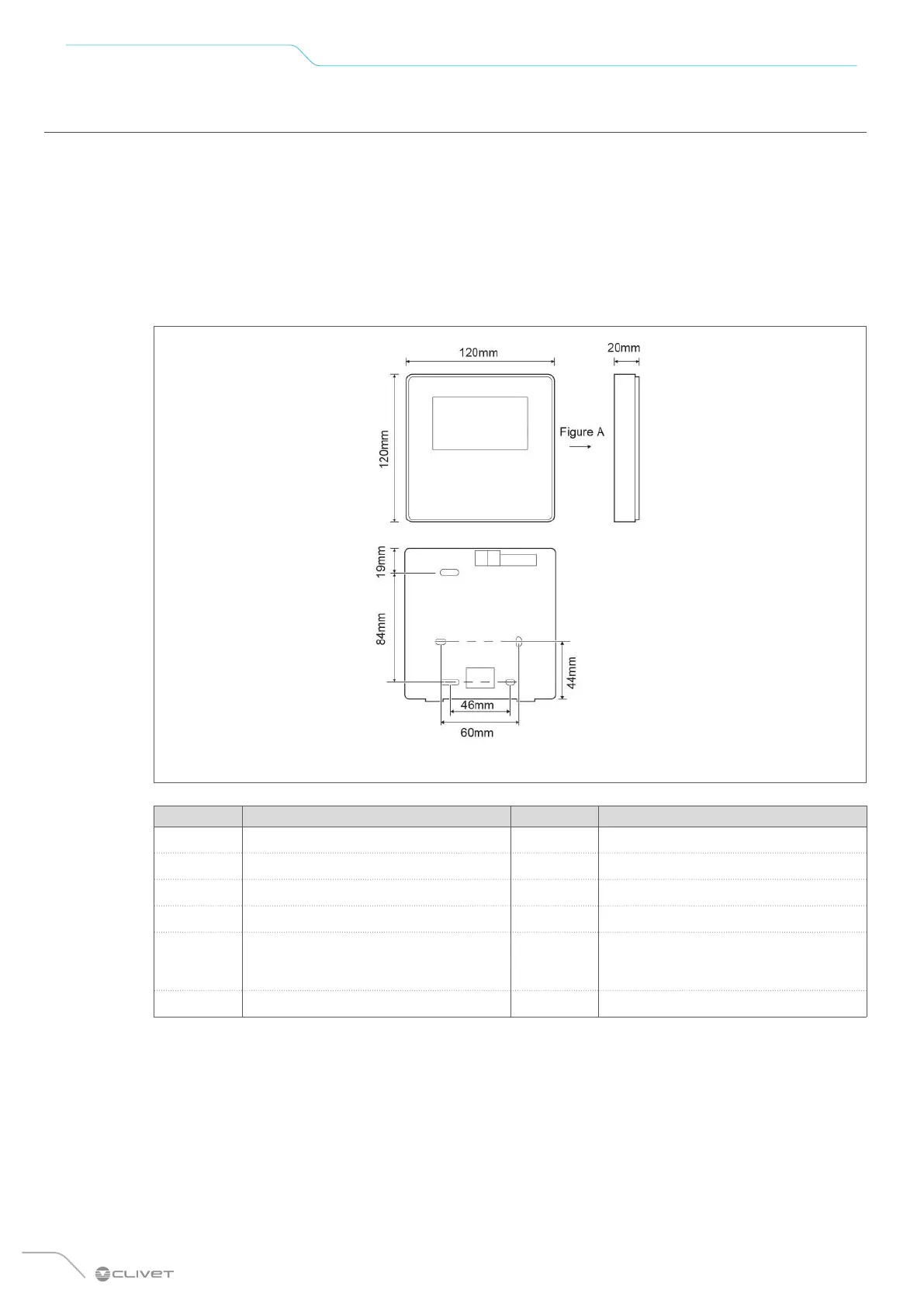

Fig. 54
Num. Name Quantity Notes
1 Wired controller 1
2 Phillips round head wood screw 3 For wall assembly
3 Phillips round head screw 2 For electrical box assembly
4 Use and installation manual 1
5 Plastic bolt 2
This accessory is used to install the
central control unit inside the control
box.
6 Plastic expansion plug 3 For wall assembly
