Electrical connections
Installing the back cover
• Insert a flat screwdriver into the indentation at the bottom of the wired controller and pry the back cover
o. (Pry o in the correct direction, otherwise the back cover risks being damaged)
• Use three M4X20 screws to install the back cover directly on the wall.
• Use two M4X25 screws to install the back cover on the electrical box 86, then use one M4X20 screw to
secure it to the wall.
• Adjust the length of two plastic screw bars supplied as accessories to the standard distance between the
screw bar of the electrical box and the wall. Install the screw bar on the wall so that it is flush with the wall.
• Fix the back cover of the wired controller to the wall by inserting the Phillips screws into the screw bar.
Check that the back cover of the wired controller is at the same level after installation, then reinstall the
wired controller on the back cover.
• Over-tightening the screw will buckle the back cover.
Uscita dei
cavi in
basso a
sinistra
Apertura inferiore sinistra per
l’uscita dei cavi

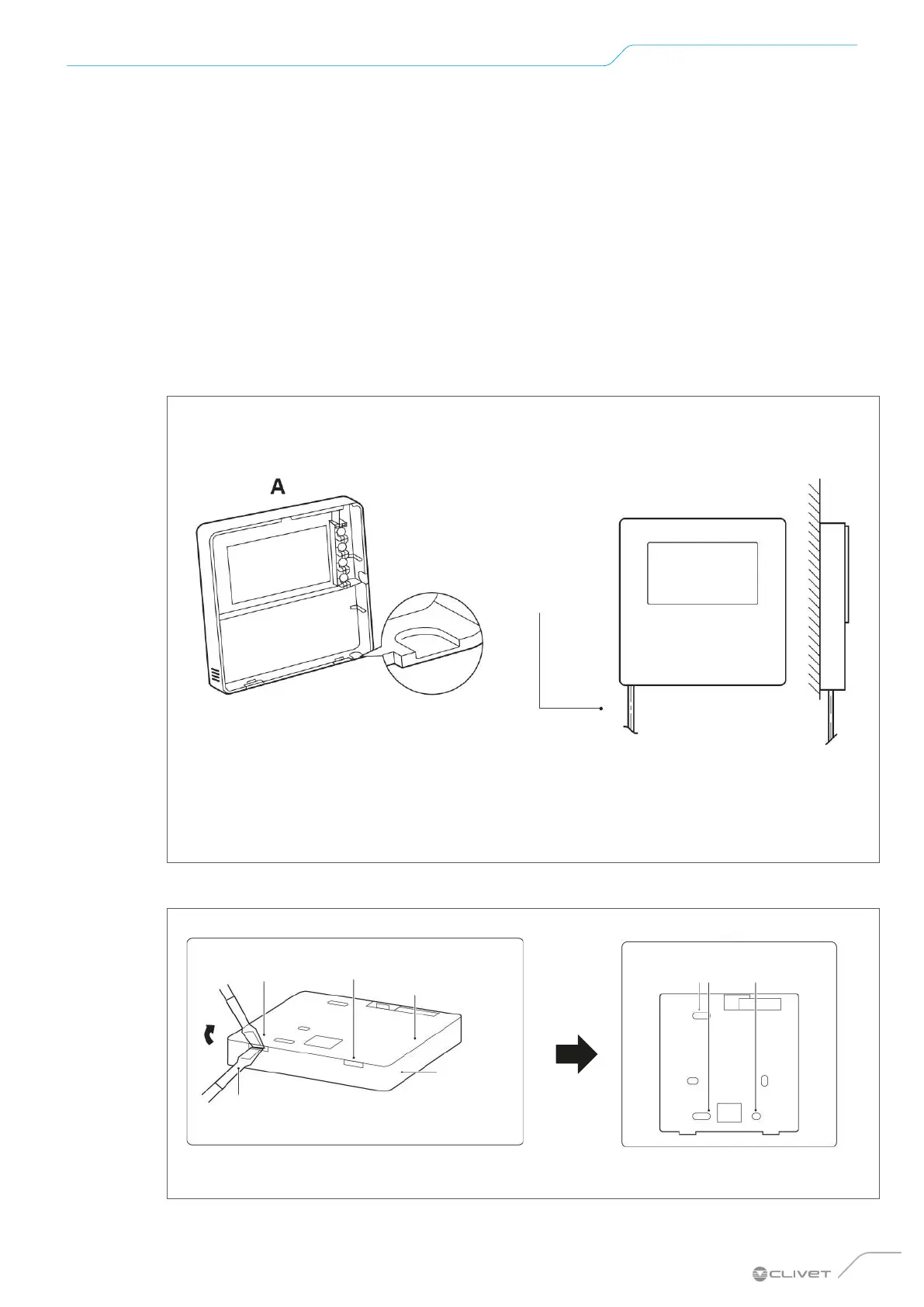

Fig. 55
Wall installation
Punto di leva
Coperchio posteriore
Coperchio
anteriore
Cacciavite piatto
Tre fori per vite a muro utilizzare M4X20
Fig. 56
Cable
outlet
bottom left
Leverage point
Flat screwdriver
Back cover
Three holes for M4X20 wall
screw use
Front cover
Bottom left opening for cable outlet
